Pepperl+Fuchs V1-G-10M-PUR

Overview

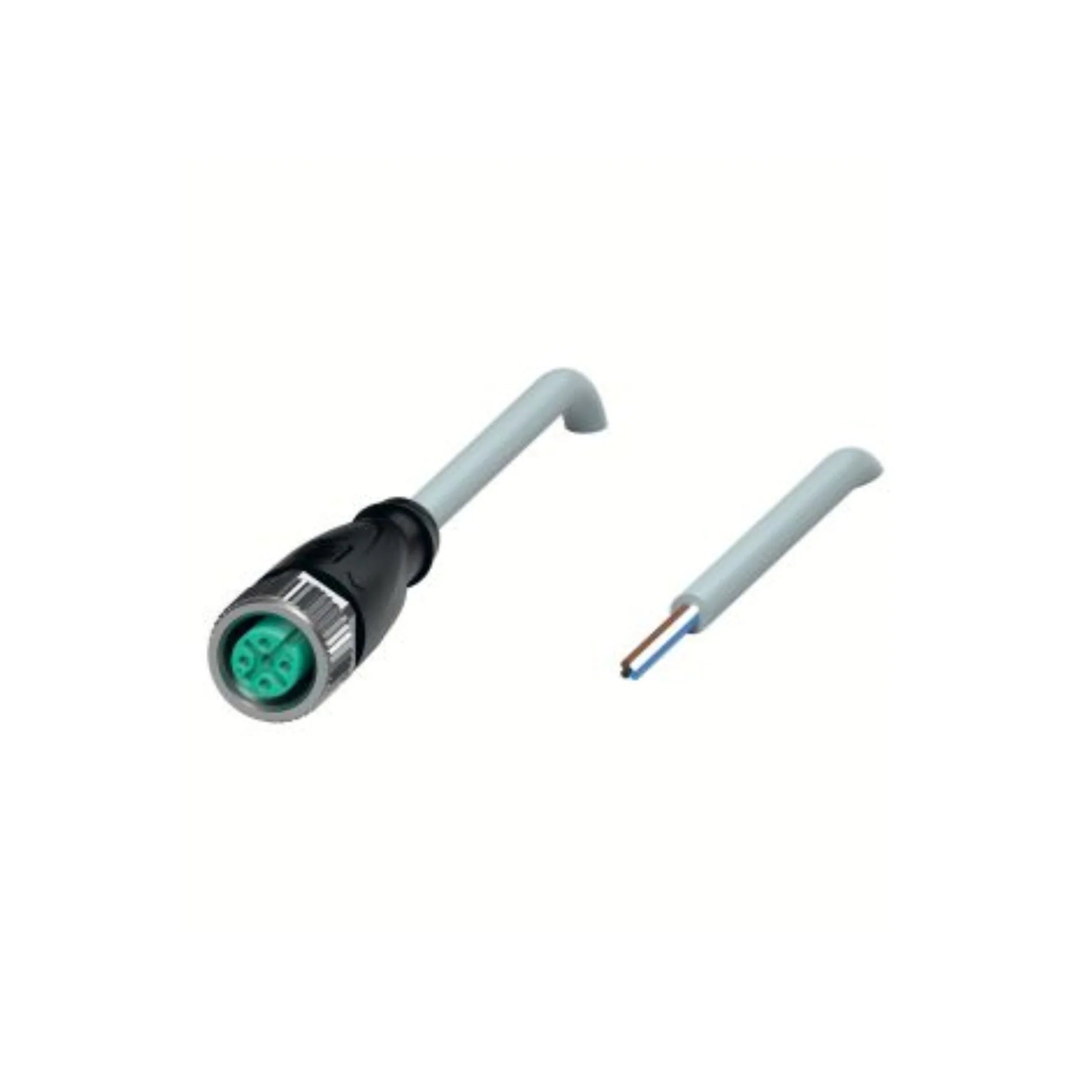

The Pepperl+Fuchs V1-G-10M-PUR is an exceptionally durable M12 4-pin female cordset engineered to deliver unwavering performance in the most demanding industrial automation environments. As part of Pepperl+Fuchs' renowned V1 series, this cordset is explicitly designed for reliable data and power transmission between sensors, actuators, and control systems. Its 10-meter gray PUR (polyurethane) cable provides extensive reach and superior resilience against mechanical stress, chemicals, and extreme temperatures. This high-performance cordset ensures consistent and secure connectivity, making it an indispensable component for maintaining operational efficiency in critical industrial applications.

Key Features

• Robust M12 Female Connector: Straight, 4-pin configuration for secure and precise connections.
• Extended 10-Meter PUR Cable: Provides ample flexibility and reach for diverse industrial setups.
• Halogen-Free Construction: Complies with IEC 60754-1, ensuring environmental safety and reduced toxicity in case of fire.
• Superior Environmental Protection: IP68/IP69 rated, offering complete resistance against dust, water jets, and even temporary submersion.
• Microbe and Hydrolysis Resistance: Ideal for challenging environments where biological or chemical degradation is a concern.
• Wide Operating Temperature Range: Performs reliably from -40°C to +90°C (connector) and -40°C to +80°C (fixed cable).
• High Current and Voltage Capacity: Supports up to 4 A per contact and 250 V AC/DC for versatile power applications.

Technical Specifications

• Model Number: V1-G-10M-PUR
• Connector 1: M12 female socket, straight, 4-pin, A-coded
• Connector 2: Cable end
• Cable Length: 10 meters
• Cable Material (Sheath): Polyurethane (PUR)
• Cable Diameter: 4.8 mm
• Core Cross Section: 0.34 mm²
• Conductor Colors: Brown, white, blue, black
• Operating Voltage: Max. 250 V AC/DC
• Operating Current: Max. 4 A per contact
• Degree of Protection: IP68 / IP69
• Bending Radius (Movable Installation): >10x cable diameter
• Bending Radius (Fixed Installation): >8x cable diameter
• Compliance: EN 60529, IEC 61076-2-101, IEC 60754-1

Applications

• Industrial Automation Systems: Essential for reliable sensor and actuator connectivity in automated production lines.
• Robotics: Ensures robust signal and power transmission in dynamic robotic arms and systems.
• Process Control & Monitoring: Provides dependable connections for instrumentation in sensitive process environments.
• Machine Building & Custom Equipment: Ideal for integrating sensors and control components in purpose-built machinery.
• Food & Beverage Industry: IP69 rating allows for high-pressure washdown applications, meeting hygiene standards.
• Outdoor and Harsh Environments: Excellent resistance to UV, chemicals, and extreme temperatures for exterior use.

Why Choose This Model?

• Unmatched Durability: The PUR cable and IP68/IP69 rating ensure exceptional longevity and resistance in the harshest industrial settings.
• Enhanced Safety & Compliance: Halogen-free and resistant to microbes and hydrolysis, meeting stringent safety and environmental regulations.
• Reliable Performance: High-quality materials and precision engineering guarantee stable and secure electrical connections, minimizing downtime.
• Extensive Reach: A generous 10-meter cable length offers greater flexibility in system design and installation.
• Trusted Pepperl+Fuchs Quality: Benefit from the decades of expertise and reputation for producing high-quality, reliable industrial components.
• Global Availability: This product is readily available for worldwide shipping, ensuring timely delivery for your projects.

Order Now

Elevate the reliability and efficiency of your industrial systems with the Pepperl+Fuchs V1-G-10M-PUR M12 4-pin female cordset. Engineered for superior performance and exceptional durability, this cordset is the ideal choice for demanding applications. Secure your critical connections today. Available for immediate shipping worldwide.
