Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15

Overview

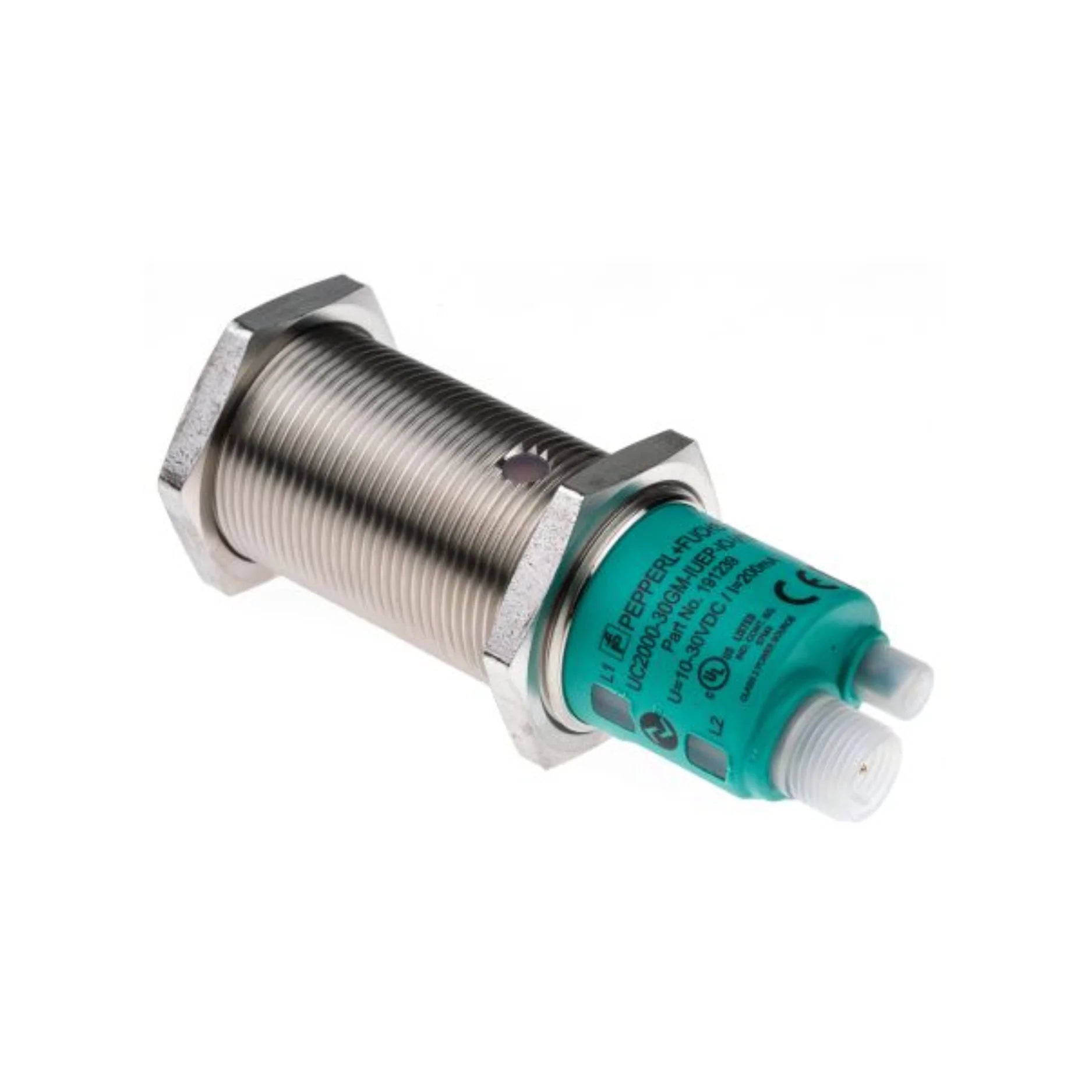

The Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 is a high-performance, cylindrical ultrasonic sensor engineered for exacting non-contact distance measurement and object detection in a wide array of industrial environments. Part of Pepperl+Fuchs' esteemed portfolio of industrial sensing solutions, this model offers outstanding precision and reliability with a versatile detection range of 90 to 2000 mm. Its integrated IO-Link interface ensures seamless digital communication and effortless integration into modern control systems, streamlining data exchange and enhancing diagnostic capabilities. Constructed with a robust M30 stainless steel housing, the UC2000-30GM-IUEP-IO-V15 is built to withstand harsh industrial conditions, making it an indispensable component for applications demanding durability and consistent performance. This sensor is designed not just for detection, but for smart, connected operations, bringing advanced capabilities to your automation infrastructure.

Key Features

• Extended Detection Range: Reliably detects objects from 90 mm to an impressive 2000 mm, offering flexibility for various applications.
• IO-Link Connectivity: Features an advanced IO-Link V1.0 interface for intelligent communication, parameter setting, and diagnostics, ensuring seamless integration into Industry 4.0 environments.
• Robust Stainless Steel Housing: Housed in a durable M30 x 1.5 stainless steel (1.4305 / AISI 303) body, providing exceptional resistance to corrosion and mechanical stress, ideal for demanding industrial settings.
• Dual Output Capability: Equipped with both a configurable 4–20 mA current output or 0–10 V voltage output, alongside a push-pull (4-in-1) switching output, offering versatile control options.
• Programmable via DTM with PACTWARE: Allows for comprehensive parameterization and adaptation to specific application requirements through DTM software and PACTWARE.
• Adjustable Sound Lobe Width: Offers selectable sound lobe widths, enabling optimization for diverse detection scenarios and environments, reducing interference.
• Wide Operating Temperature Range: Maintains high performance across a broad ambient temperature range of -25°C to +70°C, ensuring reliable operation in varied climates.

Technical Specifications

• Model Number: UC2000-30GM-IUEP-IO-V15
• Part Number: 191239
• Series: UC Series Ultrasonic Sensors
• Detection Range: 90 to 2000 mm
• Adjustment Range: 120 to 2000 mm
• Dead Band: 0 to 90 mm
• Operating Voltage: 10 to 30 V DC (15 to 30 V for voltage output)
• Transducer Frequency: Approximately 200 kHz
• Output Types: Switching Output (Push-pull 4-in-1), Analog Output (4–20 mA or 0–10 V configurable)
• Interface: IO-Link V1.0
• Resolution: Current Output: evaluation range [mm]/3200 but ≥ 0.35 mm; Voltage Output: evaluation range [mm]/4000 but ≥ 0.35 mm
• Repeat Accuracy: ≤ 0.1% of full-scale value
• Temperature Compensation: Yes (ensures measurement accuracy across temperature variations)
• Housing Material: Stainless steel 1.4305 / AISI 303
• Degree of Protection: IP67
• Connection Type: M12 x 1, 5-pin connector plug
• Dimensions: M30 x 1.5 thread, 81 mm length
• Mass: 72 g
• Compliance: cULus Listed, Class 2 Power Source

Applications

• Industrial Automation: Precise object detection, positioning, and distance control for robotic cells and automated assembly lines.
• Packaging Industry: Reliable level monitoring of bulk materials, stack height detection, and package presence verification.
• Robotics: Obstacle avoidance, navigation assistance, and precise gripping control for collaborative and industrial robots.
• Material Handling and Logistics: Sorting systems, conveyor belt monitoring, and fill level detection in bins and hoppers.
• Quality Control Systems: Dimension verification, presence/absence detection, and ensuring product consistency.
• Food & Beverage Processing: Non-contact level sensing of liquids and granules in hygienic environments, thanks to stainless steel construction.

Why Choose This Model?

• Unmatched Reliability: Engineered by Pepperl+Fuchs, a leader in industrial sensors, ensuring consistent and accurate performance in the most demanding settings.
• Advanced IO-Link Integration: Simplifies setup, provides valuable diagnostic data, and enables remote parameter adjustments, enhancing smart factory capabilities.
• Exceptional Durability: The M30 stainless steel housing and IP67 rating guarantee longevity and resistance to harsh industrial conditions, minimizing downtime.
• Versatile Application Adaptability: With a broad detection range, selectable sound lobe widths, and multiple output options, it adapts to a wide variety of industrial tasks.
• Precise and Consistent Measurement: Features like temperature compensation and high resolution ensure highly accurate and repeatable measurements, crucial for quality-sensitive applications.
• Global Compliance: UL approval and robust design ensure its suitability for international deployment and adherence to safety standards.

Order Now

Elevate your industrial automation processes with the Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15 ultrasonic sensor. Its combination of precision, durability, and advanced IO-Link capabilities makes it the ideal choice for enhancing efficiency and reliability in your operations. Don't compromise on performance—invest in a sensor that delivers consistent, high-quality results. Purchase your UC2000-30GM-IUEP-IO-V15 today and take a significant step towards smarter, more robust automation.
