Pepperl+Fuchs NJ5-18GM50-E2-V1

Overview

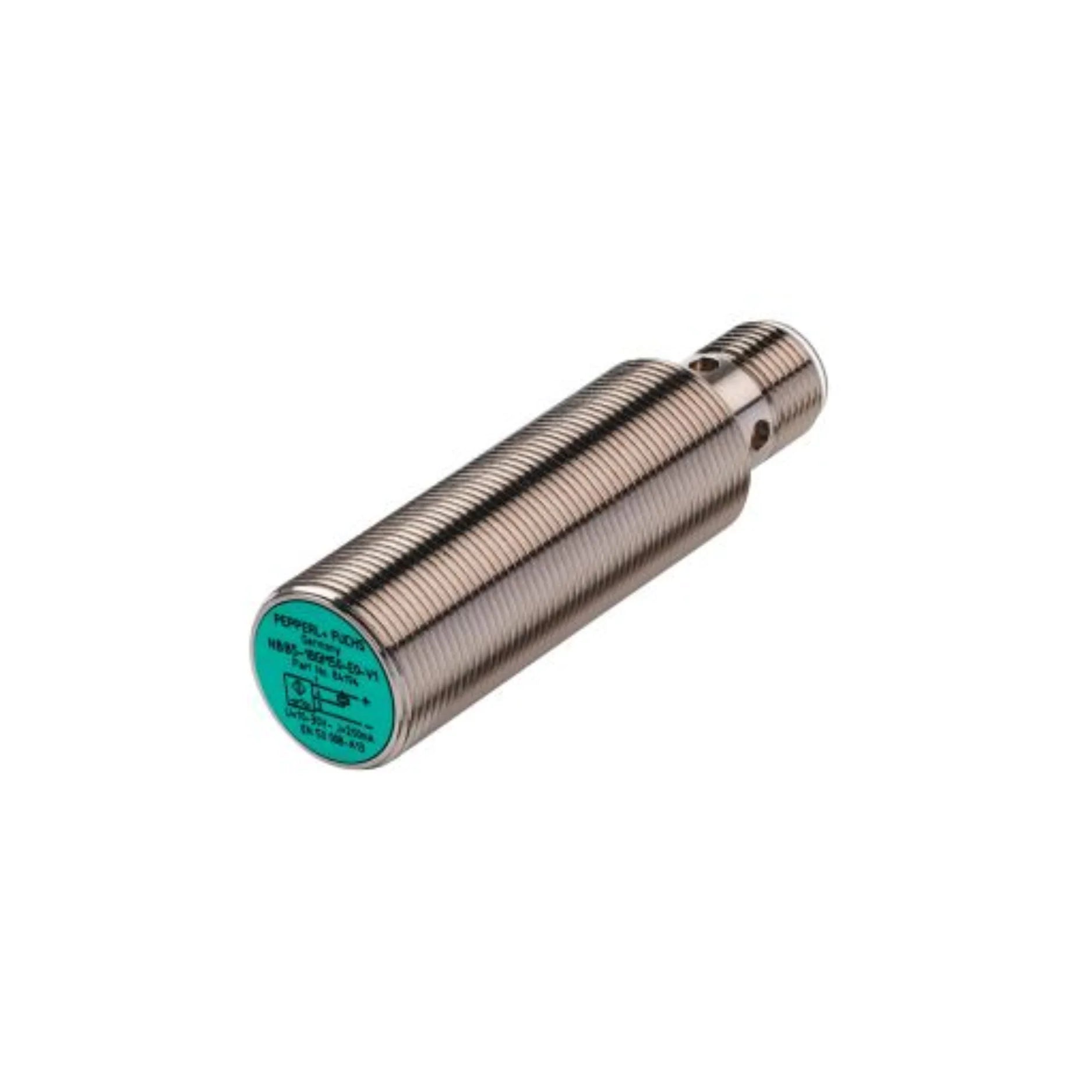

The Pepperl+Fuchs NJ5-18GM50-E2-V1 is a premium M18 inductive proximity sensor engineered for the demanding environments of industrial automation. Part of Pepperl+Fuchs' renowned series of robust and reliable sensing solutions, this model is specifically designed for the precise and non-contact detection of metallic objects. With its 5 mm flush installation sensing range and a dependable PNP normally open (NO) switching output, it provides consistent performance, making it an ideal choice for critical applications where accuracy and durability are paramount. Its rugged stainless steel construction and IP67 degree of protection ensure unwavering operation even in the harshest conditions, safeguarding your processes against downtime and increasing operational efficiency.

Key Features

• Precise 5 mm Flush Sensing: Offers highly accurate and stable detection of metal targets.
• Robust Stainless Steel Housing: Constructed from 1.4305 / AISI 303 stainless steel for exceptional durability and resistance to harsh industrial environments.
• PNP Normally Open Output: Provides a reliable and industry-standard switching signal for seamless integration into control systems.
• Wide Operating Voltage: Compatible with 10 to 60 V DC power supplies, enhancing versatility.
• High Switching Frequency: Capable of up to 1,500 Hz, suitable for dynamic and high-speed applications.
• IP67 Protection Rating: Ensures superior protection against dust and water ingress, ideal for challenging conditions.
• M12 Connector: Facilitates quick and secure electrical connection for simplified installation and maintenance.

Technical Specifications

• Model Number: NJ5-18GM50-E2-V1
• Switching Function: Normally Open (NO)
• Output Type: PNP
• Rated Operating Distance: 5 mm
• Installation: Flush
• Output Polarity: DC
• Assured Operating Distance: 0 to 4.05 mm
• Operating Voltage Range: 10 to 60 V DC
• No-Load Supply Current: ≤ 9 mA
• Switching Frequency: 0 to 1,500 Hz
• Voltage Drop: ≤ 3 V
• Operating Current: 0 to 200 mA
• Ambient Temperature Range: -25°C to +70°C
• Housing Material: Stainless steel 1.4305 / AISI 303
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Connection Type: M12 connector plug
• Dimensions: Diameter 18 mm, Length 65 mm
• Compliance: EN IEC 60947-5-2

Applications

• Automated Production Lines: Essential for precise object positioning and presence sensing in manufacturing.
• Material Conveying Systems: Reliably detects metallic parts on conveyor belts, improving sorting and handling efficiency.
• Packaging Machinery: Verifies the presence of metal components within packaging processes, ensuring product integrity.
• Robotics: Provides critical feedback for robotic arms and end-effectors in pick-and-place operations.
• Food and Beverage Industry: Suitable for environments requiring wash-down capabilities due to its IP67 rating and stainless steel construction.
• General Industrial Automation: A versatile solution for a wide range of metal detection tasks across various sectors.

Why Choose This Model?

• Unmatched Reliability: Built by Pepperl+Fuchs, a global leader in industrial sensor technology, ensuring consistent and dependable operation.
• Exceptional Durability: Stainless steel construction and IP67 rating guarantee longevity and performance in harsh industrial settings.
• Precision Sensing: The 5 mm flush sensing range offers high accuracy for critical detection tasks.
• Ease of Integration: Standard PNP NO output and M12 connector make it simple to integrate into existing and new control systems.
• Versatile Performance: Wide operating temperature range and high switching frequency accommodate diverse application requirements.
• Optimized for Harsh Environments: Designed to withstand challenging conditions, reducing maintenance and replacement costs.

Order Now

Upgrade your industrial automation systems with the Pepperl+Fuchs NJ5-18GM50-E2-V1 M18 Inductive Sensor. Its robust design, precise detection capabilities, and reliable performance make it an indispensable component for enhancing efficiency and accuracy in your operations. Secure your investment in quality and innovation by ordering this advanced sensor today.
