Pepperl+Fuchs NBN8-12GM50-E2-V1 |

Overview

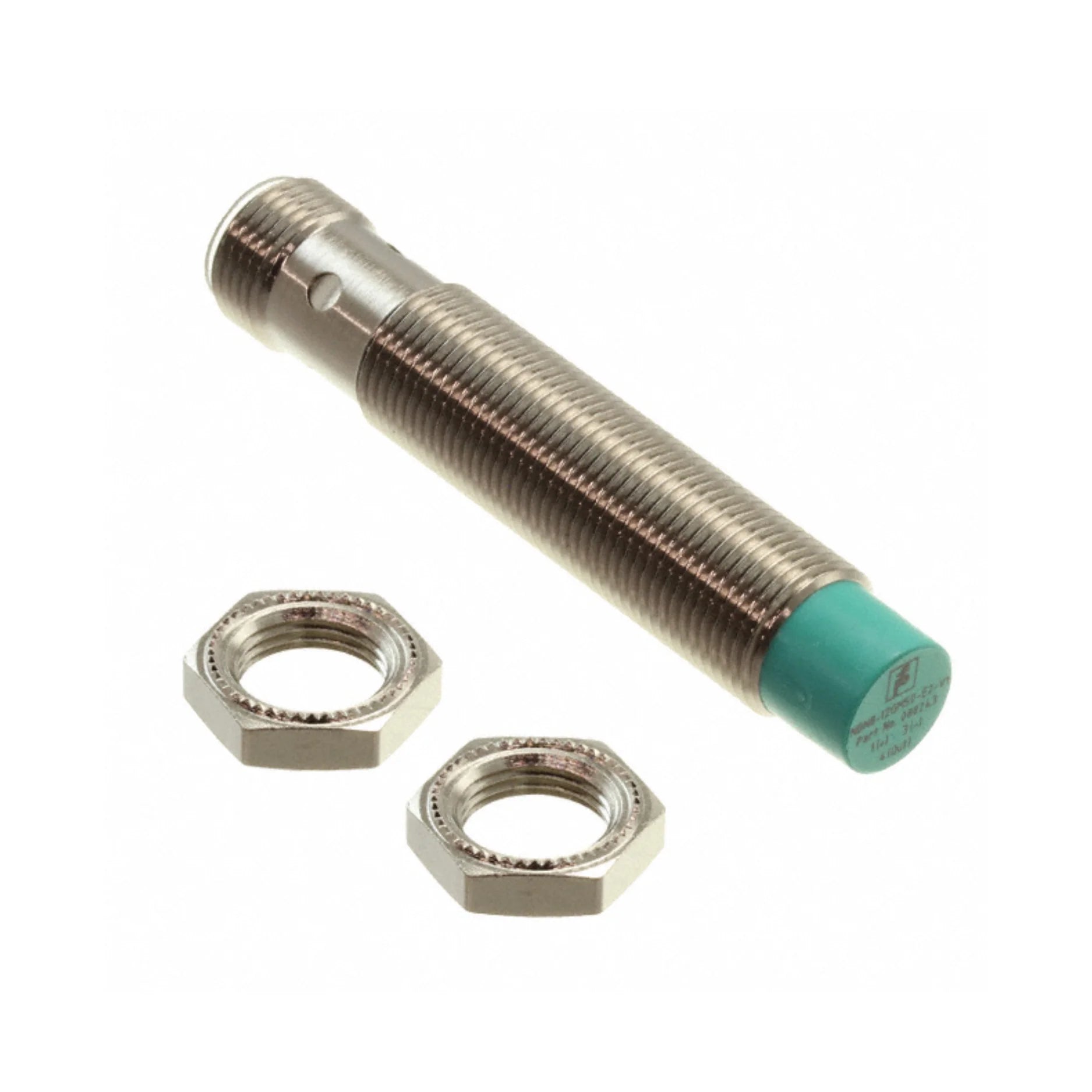

The Pepperl+Fuchs NBN8-12GM50-E2-V1 (part number 088243) is a high-performance inductive proximity sensor engineered for reliable, non-contact detection of metallic objects in diverse industrial environments. As part of Pepperl+Fuchs' esteemed sensor line, this model combines a robust M12 x 50 mm nickel-plated brass housing with an extended 8 mm sensing distance, making it a versatile and dependable choice for even the most challenging automation applications. Its PNP normally open (NO) output and M12 connector ensure seamless integration into existing control systems, delivering accuracy and efficiency where it matters most.

Designed for longevity and consistent operation, the NBN8-12GM50-E2-V1 excels in scenarios requiring precise object positioning and presence detection. Its non-flush mounting capability provides flexibility in installation, while the integrated LED status indicator offers immediate visual confirmation of operation. This sensor is a testament to Pepperl+Fuchs' commitment to quality and innovation, providing an essential component for optimizing your industrial processes.

Key Features

• Extended 8 mm Sensing Distance: Enables reliable detection of metal objects from a greater range, enhancing operational flexibility.
• PNP Normally Open (NO) Output: Standard configuration for compatibility with a wide array of industrial control systems, simplifying integration.
• Rugged M12 x 50 mm Nickel-Plated Brass Housing: Provides exceptional durability and resistance to harsh industrial conditions, ensuring a long service life.
• IP67 Protection Class: Fully protected against dust ingress and temporary immersion in water, suitable for demanding environments.
• Wide 10–30V DC Supply Voltage: Offers broad compatibility with common industrial power supplies, reducing installation complexity.
• Fast 1,000 Hz Switching Frequency: Ideal for high-speed applications where rapid and accurate object detection is critical.
• M12, 4-Pin Connector: Standardized industrial connection for quick and secure plug-and-play installation.

Technical Specifications

• Model Number: NBN8-12GM50-E2-V1
• Part Number: 088243
• Sensing Distance: 8 mm (non-flush)
• Output Type: PNP NO
• Operating Voltage: 10–30V DC
• Current Rating: Max. 200 mA
• Voltage Drop: ≤ 3 V
• No-Load Current: ≤ 15 mA
• Switching Frequency: 1,000 Hz
• Protection: Short-circuit and reverse polarity
• Connector Type: M12 x 1, 4-pin
• Housing Material: Nickel-plated brass
• Sensing Face Material: PBT
• Protection Class: IP67
• Operating Temperature: -25°C to +70°C
• Certifications: CE, cULus
• Mounting Style: Non-flush in metal
• LED Status Indicator: Integrated

Applications

• Factory Automation: Precise detection of metallic parts on conveyor lines, ensuring smooth and efficient material flow.
• Packaging Machinery: Non-contact sensing for accurate positioning and counting of items, optimizing packaging processes.
• Robotics: Provides reliable position feedback for robotic arms and end-effectors, enhancing automation precision.
• Material Handling Systems: Detects the presence and position of components in automated storage and retrieval systems (AS/RS).
• Automotive Manufacturing: Utilized for assembly line automation, ensuring correct component placement and quality control.
• OEM Equipment Integration: A compact and robust solution for original equipment manufacturers seeking dependable detection capabilities.

Why Choose This Model?

• Unmatched Reliability: Built by Pepperl+Fuchs, a leader in industrial sensors, ensuring consistent and long-lasting performance.
• Superior Durability: The IP67-rated, nickel-plated brass housing offers exceptional resistance to dust, water, and mechanical stress, minimizing downtime.
• Optimized for Speed: A high switching frequency of 1,000 Hz makes it perfectly suited for rapid automation processes, increasing throughput.
• Easy Integration: With its standard M12 connector and PNP NO output, setup is straightforward, reducing installation time and complexity.
• Versatile Application: Ideal for a broad range of industrial uses, from robotic systems to material handling, thanks to its robust design and precise sensing.
• Global Availability: In stock and ready for fast international shipping, ensuring you get the components you need quickly, wherever you are.

Order Now

Elevate your industrial automation with the precision and reliability of the Pepperl+Fuchs NBN8-12GM50-E2-V1 inductive sensor. This robust and high-performance sensor is an essential upgrade for any system requiring accurate and dependable metal object detection. Don't compromise on quality or efficiency. Order your NBN8-12GM50-E2-V1 today and experience the difference that superior engineering can make to your operations. Available now for fast and convenient worldwide shipping.
