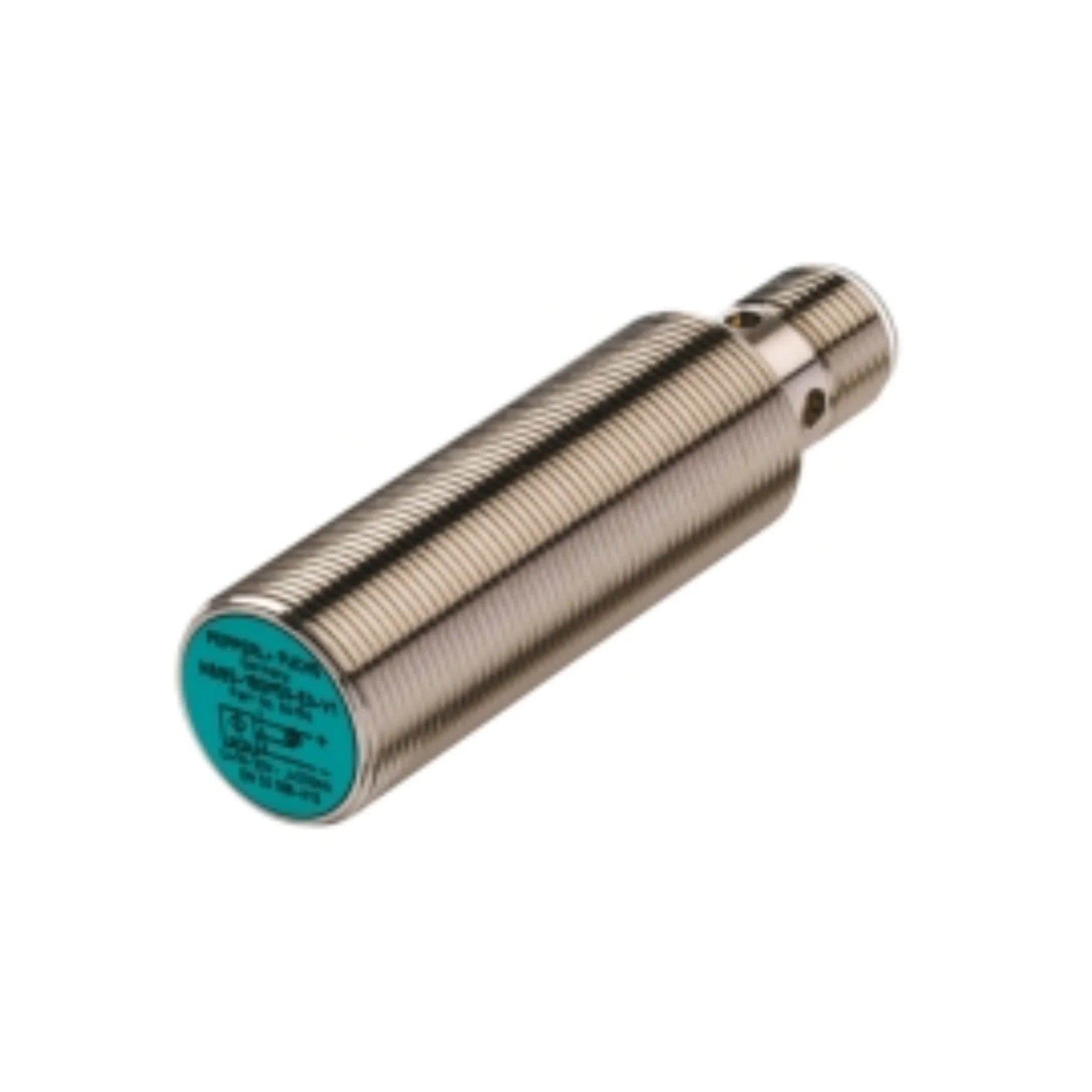

Pepperl+Fuchs NBB5-18GM50-E2-V1

Overview

Elevate your industrial automation with the Pepperl+Fuchs NBB5-18GM50-E2-V1 inductive proximity sensor. Engineered for precision and longevity, this flush-mount M18 sensor is an essential component for reliable metal object detection in demanding environments. Part of Pepperl+Fuchs' esteemed line of sensing solutions, the NBB5-18GM50-E2-V1 offers a robust 5 mm sensing range, ensuring accurate and consistent performance. Its PNP normally open (NO) output is compatible with a wide array of control systems, making integration seamless. Designed with an M12 quick-connect interface and an IP67 protection rating, this sensor delivers exceptional durability against dust, moisture, and vibration, guaranteeing uninterrupted operation in the toughest industrial conditions. From automated production lines to material handling, this sensor is built to deliver unparalleled reliability and efficiency.

Key Features

• Reliable 5 mm flush sensing distance for precise detection
• Durable M18 cylindrical metal housing for industrial resilience
• PNP Normally Open (NO) output for versatile PLC compatibility
• Quick and secure M12, 4-pin male connector for easy installation
• IP67-rated protection against dust, water, and harsh elements
• Integrated LED indicator for instant operational status display
• Wide operating temperature range from -25°C to +70°C

Technical Specifications

• Model Number: NBB5-18GM50-E2-V1
• Sensor Type: Inductive proximity sensor
• Installation Type: Flush
• Nominal Sensing Distance: 5 mm
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10–30 VDC
• Voltage Drop: ≤ 3 V
• Max Load Current: 200 mA
• Current Consumption: ≤ 15 mA (no load)
• Switching Frequency: Up to 500 Hz
• Connection: M12, 4-pin male connector
• Housing Material: Nickel-plated brass
• Sensing Face Material: Plastic (LCP)
• Protection Class: IP67
• Short-Circuit Protection: Yes
• Reverse Polarity Protection: Yes
• Dimensions: M18 x 50 mm
• Weight: Approximately 80 g

Applications

• Factory Automation: Precision detection of metal objects in high-speed production lines
• Material Handling Systems: Monitoring the flow and position of parts, containers, and conveyor systems
• OEM Equipment Integration: Standard M18 form factor for seamless and flexible integration into various machinery
• Machine Tools: Robust position sensing for critical machine tool operations, ensuring accuracy
• Packaging Lines: Non-contact detection for sorting, counting, and positioning products with high repeatability
• Robotics: End-effector sensing for pick-and-place applications and collision avoidance

Why Choose This Model?

• Unmatched Reliability: Experience consistent and accurate metal detection, minimizing downtime and errors.
• Rugged Construction: The nickel-plated brass housing and IP67 rating ensure long-term performance in challenging industrial environments.
• Optimized Compatibility: PNP NO output and 10-30 VDC operating range provide broad compatibility with existing control systems.
• Ease of Installation: M12 quick-connect fosters rapid deployment and maintenance, reducing installation time and complexity.
• Global Standard: A proven Pepperl+Fuchs product, known for quality, innovation, and worldwide technical support.
• Cost-Effective Solution: High performance and durability translate to a lower total cost of ownership over the sensor's lifespan.

Order Now

Secure the Pepperl+Fuchs NBB5-18GM50-E2-V1 inductive sensor for your operations today and benefit from superior metal object detection and robust industrial performance. With worldwide shipping available, trust in Pepperl+Fuchs to deliver the quality and reliability your applications demand. Enhance your productivity and precision – add this essential sensor to your system now.
