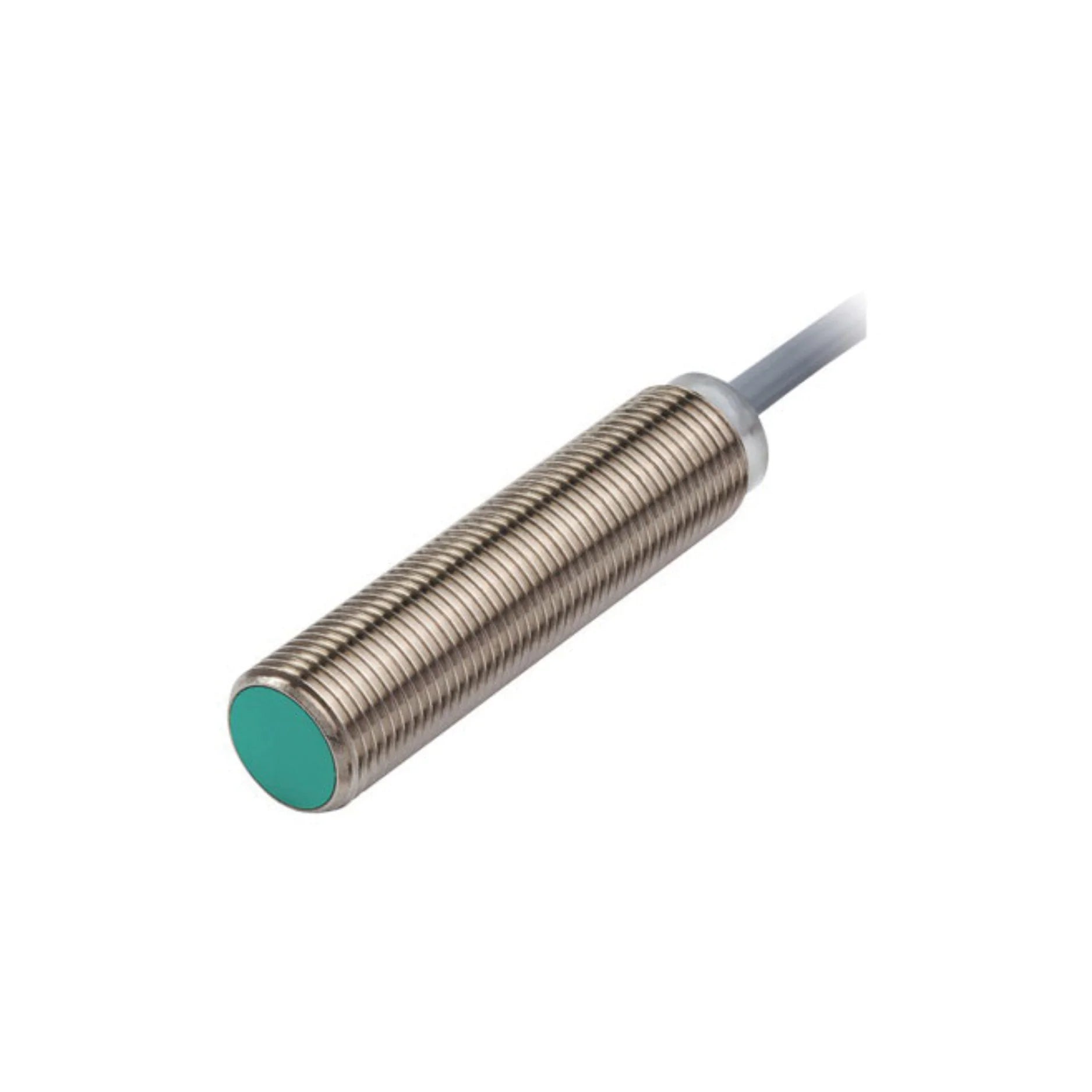

Pepperl+Fuchs NBB4-12GM50-E0-V1

Overview

The Pepperl+Fuchs NBB4-12GM50-E0-V1 is an cutting-edge M12 inductive proximity sensor meticulously engineered for unparalleled precision in detecting metallic objects across diverse industrial landscapes. Belonging to Pepperl+Fuchs' esteemed NBB series, this sensor stands out with its impressive 4 mm flush sensing range, guaranteeing accurate and reliable object detection even in challenging environments. Its NPN normally open (NO) switching output ensures seamless integration into a myriad of control systems, providing straightforward and efficient operation. Designed to excel under duress, the NBB4-12GM50-E0-V1 boasts an expansive operating temperature range of -40°C to +85°C, making it a dependable solution for applications exposed to extreme thermal variations. Couple this with its exceptionally durable construction and superior ingress protection, and you have a sensor that consistently delivers high-performance, non-contact object detection essential for modern automation tasks. This sensor exemplifies Pepperl+Fuchs' commitment to quality, reliability, and innovation in industrial sensing technology.

Key Features

• Precise 4 mm Flush Sensing: Offers highly accurate detection of metallic targets, optimizing operational efficiency.
• Reliable NPN NO Output: Provides a standard NPN normally open switching output for easy and effective integration into existing control architectures.
• Extreme Temperature Resilience: Operates flawlessly from -40°C to +85°C, ensuring unwavering performance in severe environmental conditions.
• Industrial-Grade Durability: Constructed with a white bronze-coated brass housing and a robust PBT sensing face for maximum longevity and resistance to wear.
• Comprehensive IP68 Protection: With an IP65/IP66/IP67/IP68 rating, this sensor offers superior defense against dust, moisture, and water immersion.
• Compact M12 Design: The compact M12 threaded cylindrical housing (64.5 mm length) facilitates flexible installation in confined spaces.
• Clear LED Status Indication: A multihole yellow LED provides immediate visual feedback on the switching state, simplifying monitoring and troubleshooting.

Technical Specifications

• Model Number: NBB4-12GM50-E0-V1
• Switching Function: Normally Open (NO)
• Output Type: NPN
• Rated Operating Distance (sn): 4 mm
• Installation: Flush
• Operating Voltage (UB): 6 to 36 V DC
• Switching Frequency (f): 0 to 2550 Hz
• Hysteresis (H): Typically 5% of sensing distance
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 1 V
• Operating Current (IL): 0 to 200 mA
• Off-State Current (Ir): Maximum 150 µA
• No-Load Supply Current (I0): ≤ 10 mA
• Time Delay Before Availability (tv): ≤ 10 ms
• Ambient Temperature Range: -40°C to +85°C
• Storage Temperature Range: -40°C to +85°C
• Housing Material: White bronze-coated brass
• Sensing Face Material: PBT, green
• Degree of Protection: IP65/IP66/IP67/IP68
• Connection Type: M12 x 1 connector plug, 3-pin
• Dimensions: Length: 64.5 mm, Diameter: 12 mm
• Weight: Approximately 29 g

Applications

• Automated Material Handling: Precisely detects metallic objects on conveyor belts for sorting, counting, and accurate positioning in logistics and manufacturing.
• Automotive Manufacturing: Ensures critical detection of vehicle components during assembly lines, improving efficiency and quality control.
• Packaging Industry: Verifies the presence of metallic parts within packaging lines, preventing errors and ensuring product integrity.
• Machine Tooling: Provides reliable end-position sensing and tool detection in CNC machines and other automated machinery.
• Food & Beverage Processing: Suitable for environments requiring high hygiene standards due to its robust protection and resistance to wash-downs.
• Outdoor Industrial Installations: Its wide operating temperature range and high IP rating make it perfect for outdoor or harsh factory conditions.

Why Choose This Model?

• Unmatched Reliability: Engineered by Pepperl+Fuchs, a leader in industrial sensors, ensuring consistent and dependable performance.
• Superior Environmental Resistance: With IP68 protection and an extreme temperature range, it withstands the toughest industrial conditions.
• Easy Integration: The NPN NO output and M12 connector simplify wiring and setup into existing control systems, saving time and effort.
• High Precision Detection: The 4 mm flush sensing range offers accurate and repeatable detection, crucial for critical automation processes.
• Long-Term Cost Savings: Its durable construction reduces maintenance needs and extends operational lifespan, providing excellent value over time.
• Global Compliance and Approvals: Meets international standards (EN IEC 60947-5-2) and holds cULus and DNVGL Marine Approvals, ensuring broad applicability.
