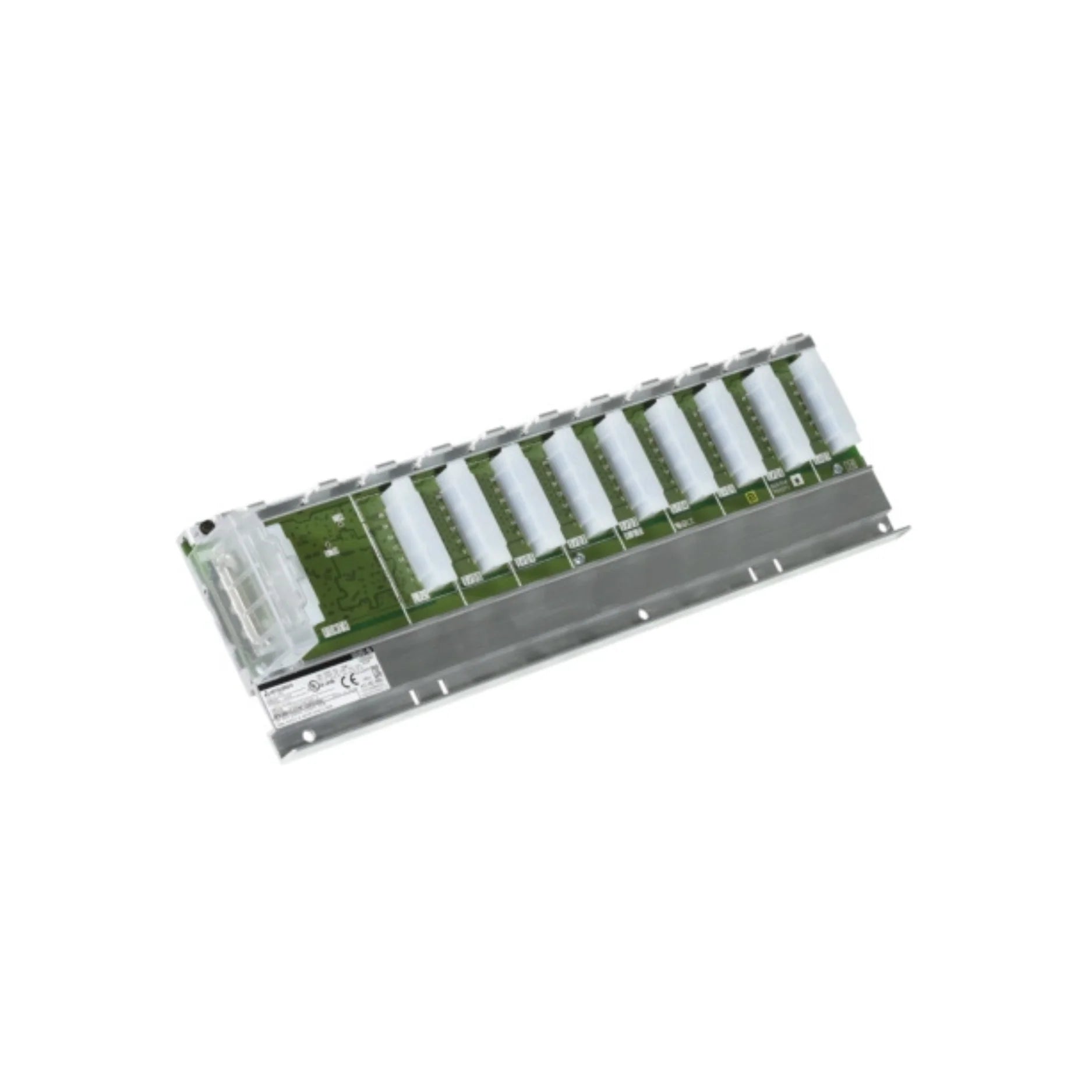

Mitsubishi Q38B

Overview

The Mitsubishi Q38B is a robust 8-slot PLC base unit meticulously engineered for the MELSEC-Q Series programmable logic controllers. This essential component serves as the foundational backbone for your industrial automation system, providing critical structural integrity and seamless backplane connectivity. It efficiently distributes power and facilitates high-speed signal communication between CPU, power supply, and various I/O modules, ensuring optimal performance and reliability in demanding industrial environments. Designed for unparalleled flexibility, the Q38B supports both DIN rail and direct panel mounting, allowing for versatile installation options to suit diverse control cabinet layouts and application requirements.

As a core element of the MELSEC-Q platform, the Q38B simplifies system expansion and maintenance, offering a plug-and-play solution for integrating new modules or replacing existing ones without complex rewiring. Its durable construction is a testament to Mitsubishi Electric's commitment to quality and longevity, making it an ideal choice for mission-critical applications where stability and continuous operation are paramount. This base unit is not merely a mounting solution; it is a vital communication hub that underpins the efficiency and scalability of your automation infrastructure.

Key Features

• 8 Module Slots: Accommodates up to eight MELSEC-Q series modules, including CPUs, power supplies, I/O, and specialized communication units.
• Integrated Backplane: Features a high-performance backplane for efficient power distribution and reliable data communication across all connected modules.
• Flexible Mounting: Offers both DIN rail and direct panel mounting options to ensure convenient and adaptable installation in various industrial settings.
• Durable Industrial Design: Constructed with industrial-grade resin and a robust metal frame, ensuring longevity and consistent performance in harsh environments.
• Effortless Expansion: Facilitates simple plug-and-play installation and replacement of modules, streamlining system upgrades and maintenance.
• Optimal Connectivity: Guarantees stable and secure electrical and data connections for all integrated MELSEC-Q components.
• Global Certifications: Complies with major international standards such as CE and UL, affirming its quality and safety for worldwide deployment.

Technical Specifications

• Model: Q38B
• Series: MELSEC-Q Series
• Slot Count: 8 module slots
• Material: Industrial-grade resin and metal chassis
• Power Distribution: Internal backplane bus
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -25°C to 75°C (-13°F to 167°F)
• Relative Humidity: 5% to 95% RH (non-condensing)
• Mounting: DIN rail (35mm) or direct screw mount to panel
• Dimensions (W x H x D): Approximately 277mm x 98mm x 44mm (Dimensions may vary slightly, refer to datasheet for exact specifications)
• Weight: Approximately 0.8 kg (1.76 lbs)
• Vibration Resistance: Conforms to IEC 60068-2-6 standard
• Shock Resistance: Conforms to IEC 60068-2-27 standard
• Certifications: CE Mark, UL Listed
• Compatibility: Fully compatible with all Mitsubishi MELSEC-Q series CPU, Power Supply, I/O, and Special Function Modules.

Applications

• Advanced industrial control cabinets requiring expandable PLC systems.
• Sophisticated factory automation systems for enhanced production line management.
• Distributed control networks in large-scale manufacturing facilities.
• Precision machine and process control for diverse industries.
• Scalable PLC installations demanding high reliability and modularity.
• Integration into robotics and motion control applications.

Why Choose This Model?

• Unwavering Reliability: Provides a stable and secure backbone for up to eight MELSEC-Q modules, minimizing downtime and maximizing operational continuity.
• Simplified Maintenance: Designed for easy module insertion and removal, significantly reducing maintenance time and costs without the need for complex rewiring.
• Exceptional Installation Flexibility: With both DIN rail and direct panel mounting options, it seamlessly integrates into virtually any industrial control setup.
• Superior Industrial Durability: Built to withstand the rigors of harsh industrial environments, ensuring long-term performance and protection for your critical automation components.
• Enhanced System Scalability: Future-proof your operations with a base unit that supports easy expansion, allowing you to adapt to evolving production demands effortlessly.
• Optimized Performance: The integrated backplane guarantees high-speed communication and efficient power delivery, contributing to the overall performance of your MELSEC-Q system.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi Q38B 8-slot PLC base unit. Engineered for peak performance, reliability, and ease of integration into your MELSEC-Q Series system, this essential component is ready to enhance your operations. Invest in a robust foundation for your control architecture today and experience the difference Mitsubishi Electric quality makes. The Q38B is available for immediate order and worldwide shipping. Don't compromise on the backbone of your automation system; choose the proven reliability of Mitsubishi Electric.

Explore our extensive range of Mitsubishi Electric PLC Base Racks for additional options and configurations within this family. Discover a comprehensive selection of Mitsubishi MELSEC Programmable Controllers (PLC) to find scalable automation solutions, from legacy systems to next-generation PLCs designed for unparalleled performance, connectivity, and flexibility in modern industrial environments.
