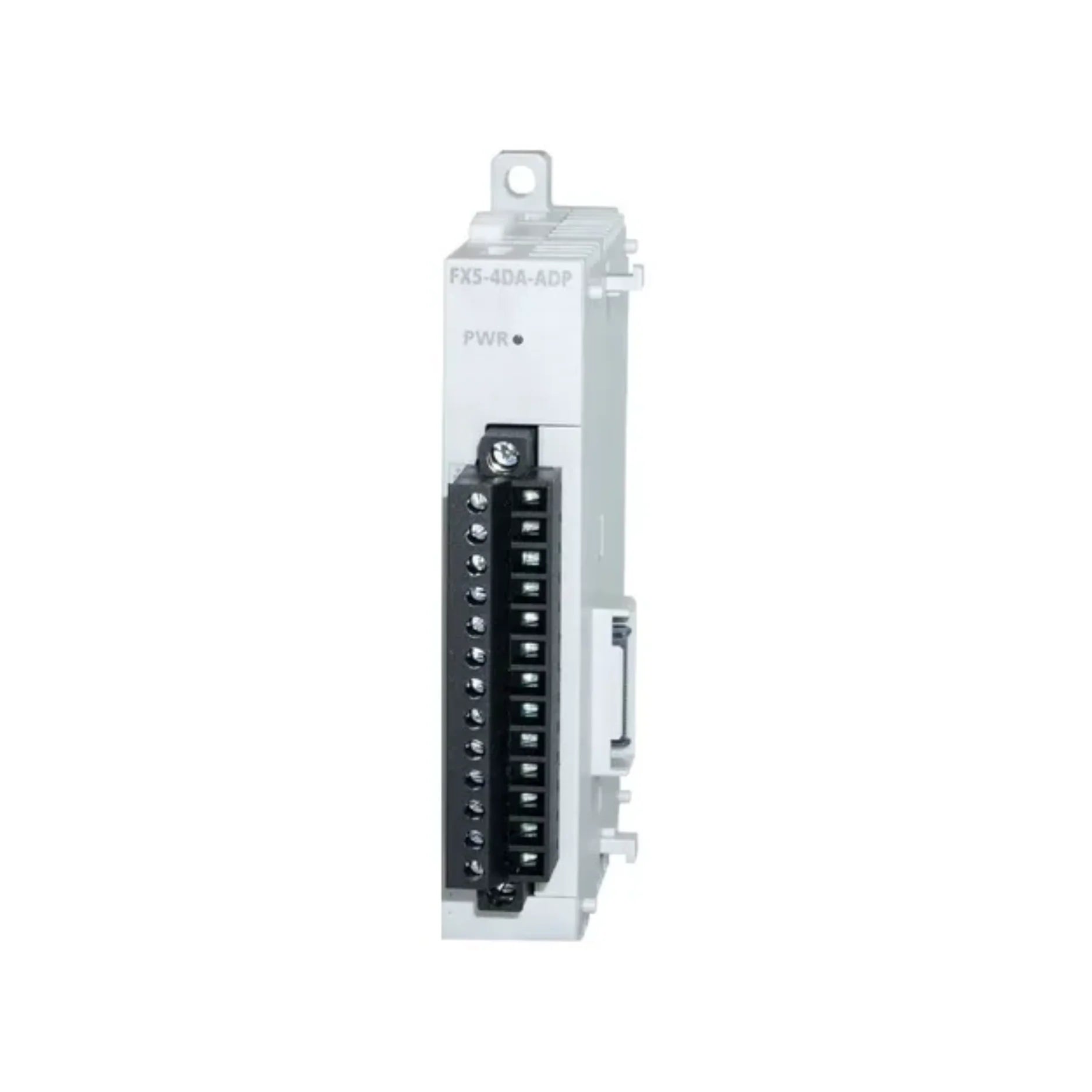

Mitsubishi FX5-4DA-ADP

Overview

The Mitsubishi FX5-4DA-ADP is a high-performance 4-channel analog output adapter module meticulously engineered to seamlessly integrate with the MELSEC iQ-F FX5U and FX5UC series Programmable Logic Controllers (PLCs). This essential component empowers industrial automation systems by providing highly precise analog signal output, available in both standard voltage (0–10V DC) and current (4–20mA DC) formats. Designed for reliability and accuracy, the FX5-4DA-ADP is the ideal solution for accurately controlling a diverse range of analog devices, including variable frequency drives, proportional valves, actuators, and other critical elements within sophisticated control loops. Its robust design ensures stable and consistent signal generation, which is paramount for maintaining optimal performance and precision in demanding industrial environments. This module significantly extends the capabilities of your FX5U/FX5UC PLC system, making it an indispensable tool for advanced process control and machine automation challenges.

Key Features

• Quad-Channel Analog Output: Provides four independent analog output channels for versatile control.
• Dual Signal Type Support: Supports both 0–10V DC and 4–20mA DC output signals, selectable per channel.
• High Precision Resolution: Features 12-bit digital-to-analog conversion for accurate and fine-grained control.
• Effortless Integration: Designed as an ADP-type extension, ensuring quick and secure DIN rail mounting.
• Compact & Space-Saving: Its streamlined design minimizes panel space usage within control cabinets.
• Robust Industrial Reliability: Engineered for stable signal generation in critical industrial applications.
• Broad PLC Compatibility: Fully compatible with Mitsubishi Electric's FX5U and FX5UC series PLCs.

Technical Specifications

• Model: FX5-4DA-ADP
• Series Compatibility: Mitsubishi MELSEC iQ-F FX5U, FX5UC
• Number of Output Channels: 4 channels
• Voltage Output Range: 0–10V DC (Load Resistance: ≥ 2kΩ)
• Current Output Range: 4–20mA DC (Load Resistance: ≤ 500Ω)
• Digital-to-Analog Conversion Resolution: 12 bits
• Conversion Time: Approximately 2 ms per channel
• Isolation Method: Channel-to-channel and channel-to-PLC isolation provided
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -20°C to 75°C (-4°F to 167°F)
• Operating Humidity: 5 to 95% RH (non-condensing)
• Mounting Type: DIN rail
• Dimensions (W x H x D): Specific dimensions vary, designed for compact integration
• Weight: Approximately 0.2 kg (0.44 lbs)
• Certifications: CE, UL Compliant
• Power Consumption: Minimal, drawn from the PLC CPU module

Applications

• Variable Speed Drive Control: Precise speed regulation of motors and pumps.
• Valve and Actuator Modulation: Accurate positioning and control of hydraulic and pneumatic systems.
• Advanced Process Control Systems: Managing continuous processes in manufacturing, chemical, and food & beverage industries.
• Temperature and Pressure Regulation: Maintaining critical parameters in industrial ovens, boilers, and environmental chambers.
• Building Management Systems: Integrated control of HVAC and lighting based on analog signals.
• Analog Signal Transmission: Reliable conversion of digital commands to analog outputs for various automation tasks.

Why Choose This Model?

• Unmatched Flexibility: Each of the four channels can be independently configured for either voltage or current output, offering unparalleled adaptability to diverse control requirements without additional hardware.
• Seamless Integration: Specifically engineered to complement Mitsubishi Electric's FX5U and FX5UC PLCs, ensuring perfect compatibility, simplified setup, and optimal performance within your existing MELSEC iQ-F system.
• Superior Precision: With a 12-bit resolution for digital-to-analog conversion, this module guarantees highly accurate and stable analog control, crucial for applications demanding exact output and minimal signal deviation.
• Optimized Space Efficiency: Its compact ADP-type design allows for excellent space utilization within control cabinets, which is vital for modern industrial setups where panel real estate is at a premium.
• Cost-Effective System Expansion: The FX5-4DA-ADP provides a straightforward and economical way to add advanced analog output capabilities to your PLC system, avoiding the need for more expensive, complex hardware upgrades.
• Proven Mitsubishi Reliability: Benefit from Mitsubishi Electric's renowned quality and industrial robustness, ensuring long-term stable operation and peace of mind in even the most challenging environments.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi FX5-4DA-ADP 4-Channel Analog Output Module. This indispensable adapter is readily available and poised to ship, enabling you to enhance the precision and control of your MELSEC iQ-F FX5U and FX5UC PLC systems without delay. Invest in Mitsubishi Electric's quality and reliability today to optimize your operational efficiency and achieve superior process control. Secure your FX5-4DA-ADP module now and take the next step towards advanced automation!
