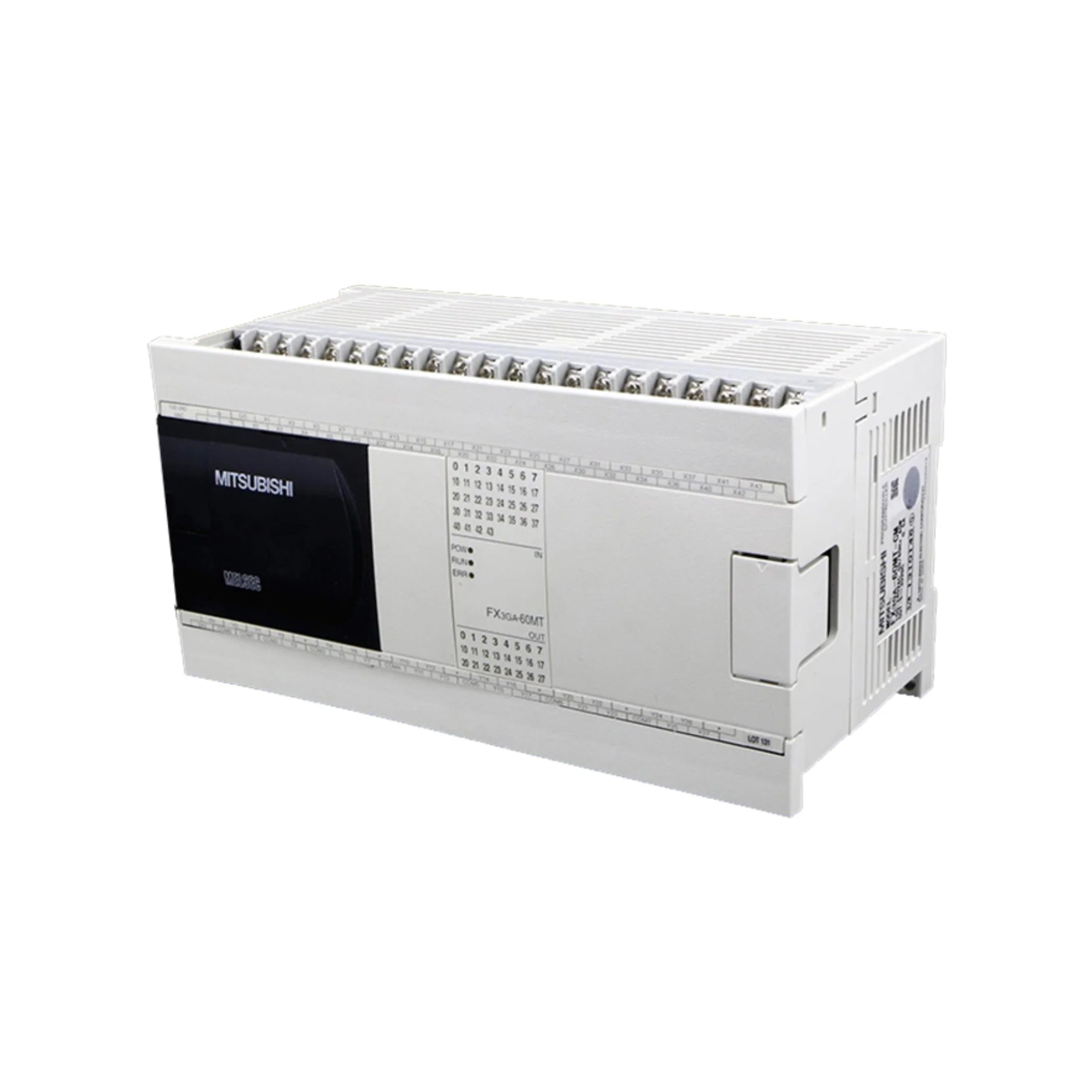

Mitsubishi FX3GA-60MT-CM

Overview

The Mitsubishi FX3GA-60MT-CM is a robust and versatile PLC main unit from the esteemed FX Control (FX3GA) platform, meticulously engineered to address the demands of mid-range automation applications. This advanced programmable logic controller boasts a significant 60 I/O points, comprising 30 precise digital inputs and 30 reliable transistor sink outputs, making it an ideal solution for intricate control tasks. Designed for global deployment, it features a universal 100–240 V AC power supply, ensuring seamless integration into diverse industrial environments. The FX3GA-60MT-CM excels in applications requiring not only high-speed sequencing but also sophisticated motion control, thanks to its built-in pulse outputs and enhanced communication capabilities. Its modular design allows for effortless expansion with various FX3G and FX5-compatible accessories, providing unparalleled flexibility for future-proofing your automation infrastructure.

Key Features

• High I/O Density: 60 total I/O points (30 inputs, 30 transistor sink outputs) for comprehensive control.
• Integrated Motion Control: Built-in high-speed pulse outputs facilitate precise motion control applications.
• Universal Power Supply: Operates efficiently with a 100–240 V AC power source, suitable for worldwide use.
• Expandable Architecture: Compatible with a wide range of FX3G and FX5 series modules for enhanced functionality.
• Flexible Connectivity: Supports Ethernet and USB communication via optional adapters for seamless integration.
• Powerful Programming: Fully compatible with GX Works3 software for intuitive and efficient program development.
• Robust Design: IP10 rated and certified with CE, UL, cUL, and RoHS for reliable and safe operation.

Technical Specifications

• Catalog Number: FX3GA-60MT-CM
• Inputs: 30 digital points (sink/source selectable)
• Outputs: 30 transistor sink outputs (0.5 A maximum per point)
• Program Memory: 128,000 steps, offering ample space for complex programs.
• Data Registers: 64,000 words for extensive data storage and manipulation.
• Input Voltage: 100–240 V AC, 50/60 Hz
• Communication: RS‑485, USB, Ethernet (via optional adapters)
• Pulse/Counters: Multi‑axis capable pulse outputs for precise control.
• Mounting: Versatile DIN rail or panel mounting options.
• Dimensions: Approximately 210 × 110 × 90 mm (Width × Height × Depth)
• Protection Class: IP10 (open type)
• Operating Temperature: 0 °C to +55 °C
• Certifications: CE, UL, cUL, RoHS compliance ensures global acceptance and safety.

Applications

• Packaging and Labeling: Ideal for high-speed and precise control of packaging and labeling machinery.
• Assembly Automation: Enables efficient and synchronized control of robotic and automated assembly lines.
• Multi-axis Positioning: Perfect for applications requiring accurate multi-axis positioning and indexing control.
• Conveying Systems: Facilitates motion synchronization for advanced conveyor systems in manufacturing.
• Mid-size OEM Machinery: A powerful core for mid-sized OEM machinery and industrial robotics.
• Distributed Control Systems: Supports integration into distributed control systems, including analog processing.

Why Choose This Model?

• Exceptional Versatility: A mid-range PLC that skillfully combines robust control with advanced motion features.
• Compact Powerhouse: Offers a generous 60 I/O count within a remarkably compact and efficient unit, saving space.
• Global Adaptability: Features a flexible power supply (100-240V AC) and modular connectivity for diverse applications.
• Future-Ready: Supports advanced automation and Industrial Internet of Things (IIoT) expansion, keeping your systems modern.
• Trusted Reliability: Built upon Mitsubishi’s renowned FX architecture, guaranteeing long-term stability and performance.
• Simplified Programming: Fully compatible with GX Works3, making development and maintenance streamlined and user-friendly.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi FX3GA-60MT-CM PLC. This high-performance main unit is readily available and ready to ship worldwide, ensuring that your projects proceed without delay. Explore our comprehensive selection of Mitsubishi MELSEC Programmable Controllers (PLC) to discover the ideal scalable solution for machine control, motion, networking, and critical industrial applications. Invest in Mitsubishi Electric's proven reliability and innovation today to optimize your operational efficiency and productivity.
