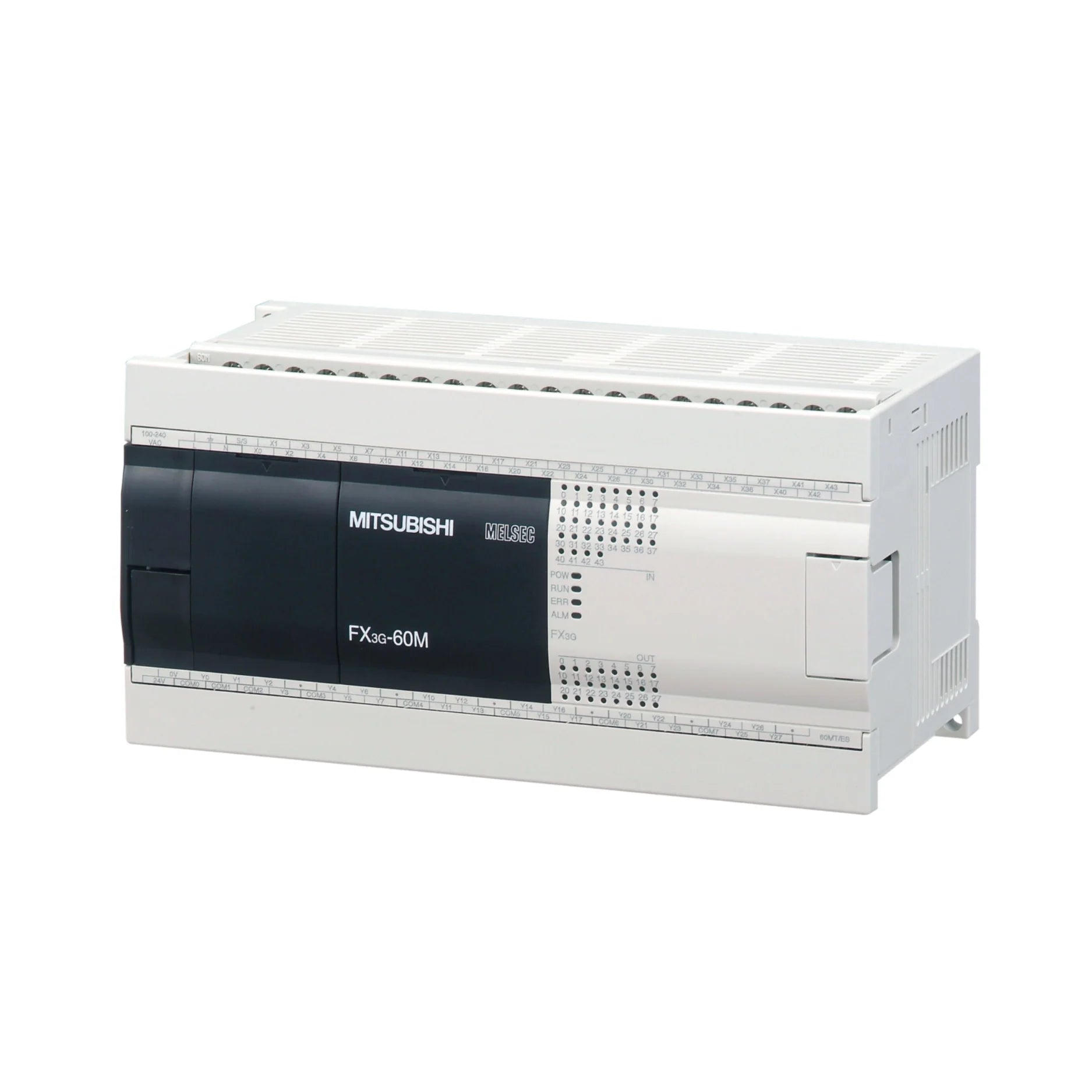

Mitsubishi FX3G-60MR/DS

Overview

The Mitsubishi FX3G-60MR/DS is a high-performance 60-point compact programmable logic controller (PLC) from the renowned MELSEC-F FX3G Series. Engineered for efficiency and reliability, this robust unit boasts 36 digital inputs and 24 relay outputs, making it an ideal solution for a vast array of small to medium-scale industrial automation tasks. Its space-saving design ensures seamless integration into environments with limited room, while its advanced capabilities provide the precision and control demanded by modern applications. Perfect for upgrading existing systems or deploying new automated processes, the FX3G-60MR/DS exemplifies Mitsubishi Electric's commitment to quality and innovation in industrial control.

Key Features

• Integrated 60 I/O Points: Efficiently manages 36 digital inputs and 24 relay outputs for versatile control.
• Compact Design: Optimized footprint for space-constrained installations without compromising performance.
• High-Speed Processing: Achieves rapid execution speeds (LD: 210 ns; MOV: 500 ns) for responsive applications.
• Enhanced Program Capacity: Features 32,000 steps of EEPROM for storing complex automation programs.
• Flexible Communication: Equipped with USB (Mini-B) and RS-422 ports for diverse connectivity options.
• Expandable Architecture: Supports up to 128 local I/O points and 256 with CC-Link or AnyWireASLINK.
• Robust Power Supply: Operates efficiently with a 24V DC power input.

Technical Specifications

• Model: FX3G-60MR/DS
• Series: MELSEC-F FX3G
• Input Points: 36 digital inputs (24V DC sink/source)
• Output Points: 24 relay outputs (2A at 240V AC or 30V DC)
• Input Voltage Range: 24V DC
• Power Consumption: 29W
• Program Capacity: 32,000 steps (EEPROM)
• Execution Speed: LD: 210 ns; MOV: 500 ns
• Mounting: DIN rail or panel mount
• Communication Ports: 1 USB (Mini-B), 1 RS-422
• I/O Expansion: Up to 128 local I/O points; 256 with CC-Link or AnyWireASLINK
• Programming Software: GX Works2 or GX Developer
• Dimensions (W × H × D): 175 × 90 × 86 mm
• Weight: Approximately 0.765 kg
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Certifications: CE, UL, cUL, UKCA, EAC, RoHS compliant
• Protection Class: IP10

Applications

• Small to medium-sized machinery control
• Building automation systems
• Conveyor and material handling systems
• Packaging and labeling equipment
• OEM equipment integration and customization
• Industrial pump and fan control

Why Choose This Model?

• Space-Saving Design: Its compact form factor is perfect for installations where panel space is at a premium.
• Integrated Power & I/O: Reduces wiring and simplifies system architecture, leading to faster deployment.
• Unmatched Reliability: Benefit from the proven quality and robust performance synonymous with Mitsubishi Electric industrial products.
• Flexible Mounting Options: Adaptable for both DIN rail and panel mounting, offering installation versatility.
• Seamless Expandability: Easily scale your system with additional I/O modules and advanced communication options to meet evolving needs.
• High-Speed Operation: Ensures optimal performance in applications requiring rapid response and precise control.

Order Now

Elevate your automation capabilities with the Mitsubishi FX3G-60MR/DS 60-point compact PLC. Designed for superior performance and reliability, this essential industrial controller is available for global shipping. Invest in Mitsubishi Electric's cutting-edge technology today and experience seamless integration and unparalleled control for your most demanding applications. Don't miss out on optimizing your processes with this top-tier PLC solution.
