Mitsubishi FX3G-2AD-BD

Overview

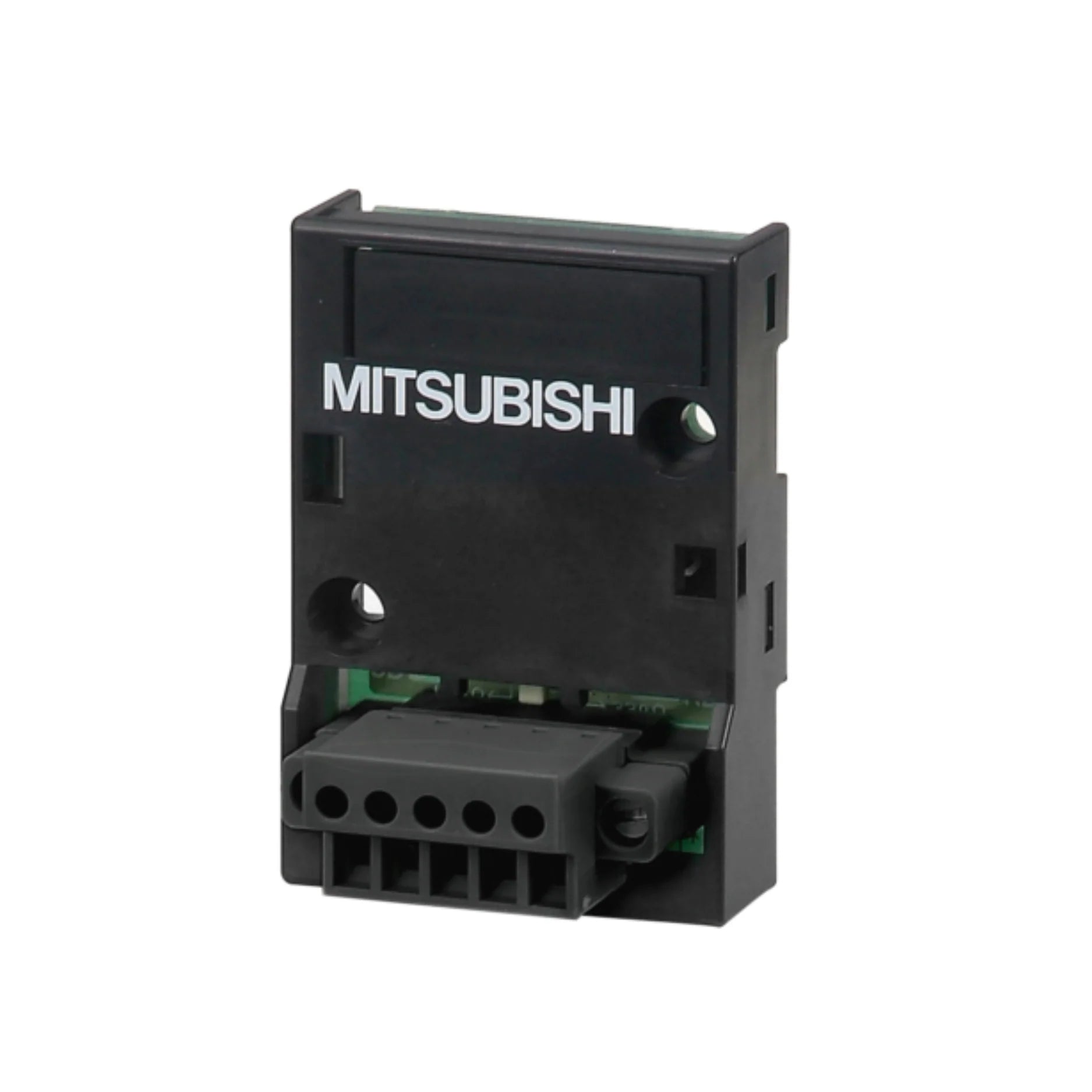

The Mitsubishi FX3G-2AD-BD is a high-performance, 2-channel analog input expansion board meticulously engineered to seamlessly integrate with the Mitsubishi FX3G series of Programmable Logic Controllers (PLCs). This essential component empowers FX3G PLCs to directly acquire and process analog signals, such as voltage or current, transforming them into digital data for precise control and monitoring in a wide array of industrial automation applications. Its compact design and cost-effectiveness make it an ideal solution for systems requiring efficient analog input capabilities without extensive wiring or complex setup. Designed for reliability and ease of use, the FX3G-2AD-BD simplifies the integration of sensors and other analog devices into your automation infrastructure, ensuring robust and accurate data acquisition.

Key Features

• 2 Independent Analog Input Channels for Versatile Signal Acquisition
• Supports Both Voltage (0-10V) and Current (4-20mA) Input Types
• Direct Mounting onto the FX3G Main Unit for Space-Saving Integration
• No External Power Supply Required, Simplifying Wiring and Installation
• Effortless Configuration and Setup via GX Works2/3 Software
• Compact and Highly Space-Saving Design Optimizes Panel Layout
• High 12-bit Resolution for Accurate Signal Conversion

Technical Specifications

• Mitsubishi Code: FX3G-2AD-BD
• Input Channels: 2 (Analog)
• Input Range:
  • Voltage: 0–10 V
  • Current: 4–20 mA
• Resolution: 12-bit
• Accuracy: ±1% full scale
• Conversion Speed: 1 ms/channel
• Power Supply: Internal (supplied from PLC main unit)
• Operating Temperature: 0°C to 55°C
• Mounting: Board-type (direct on FX3G PLC main unit)
• Series Compatibility: Mitsubishi FX3G PLC Series
• Software Compatibility: GX Works2, GX Works3

Applications

• Precision Process Monitoring and Sophisticated Control Systems
• Seamless Integration of Various Sensors (Temperature, Pressure, Flow, etc.)
• Reliable Analog Signal Acquisition in Industrial Environments
• Critical Component in Compact Automation Systems and Machines
• Essential for OEM Equipment Requiring Accurate Analog Feedback
• Data Logging and Trend Analysis in Manufacturing and R&D

Why Choose This Model?

• Seamless Expansion: Provides direct and straightforward analog input expansion for your Mitsubishi FX3G PLCs, significantly enhancing system capabilities.
• Simplified Integration: Eliminates the need for additional wiring or valuable mounting space, streamlining installation and reducing overall system complexity.
• Reliable Performance: Delivers fast, accurate, and highly reliable signal processing, ensuring the integrity of your analog data and control signals.
• Space Optimization: Its board-type design mounts directly onto the PLC, making it an ideal choice for control panels with limited space.
• Mitsubishi Quality: Benefits from Mitsubishi Electric's renowned reputation for trusted performance, exceptional durability, and long-term operational reliability.
• Cost-Effective Solution: Offers an economical way to add crucial analog input functionality to your FX3G system without compromising on quality or performance.

Order Now

Elevate the capabilities of your automation system today by integrating the Mitsubishi FX3G-2AD-BD analog input expansion board. This efficient, compact, and highly reliable solution is perfect for acquiring and processing analog signals with precision. Enhance your control, improve your monitoring, and ensure the optimal performance of your industrial applications. Don't miss out on empowering your FX3G PLC with advanced analog input functionality. Order now and experience the difference that Mitsubishi Electric's engineering excellence can bring to your operations!
