Mitsubishi CM600DU-24NF

Overview

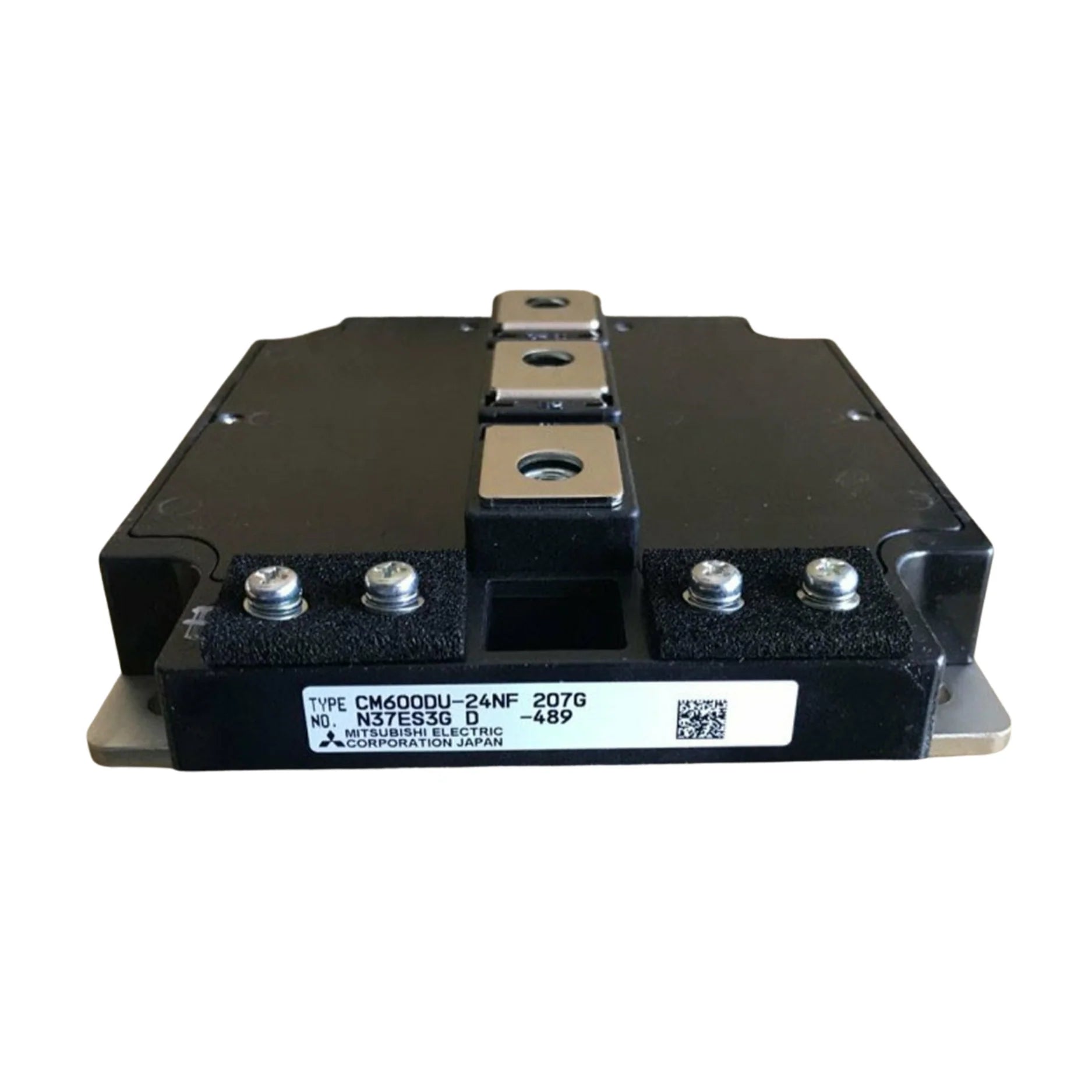

The Mitsubishi CM600DU-24NF is a high-performance dual IGBT (Insulated Gate Bipolar Transistor) module engineered to excel in demanding high-power industrial applications. This robust module is part of Mitsubishi Electric's renowned IGBT series, designed to provide exceptional efficiency and reliability for critical systems. With an impressive rating of 600 A and 1200 V, the CM600DU-24NF is the ideal solution for sophisticated power conversion, motor drives, and inverter designs where stability and performance are paramount. Its advanced trench-gate IGBT technology, combined with integrated fast-recovery diodes, ensures rapid switching characteristics and significantly reduced power losses, making it a cornerstone for energy-efficient systems.

The module's insulated base and sturdy package contribute to its outstanding thermal management capabilities and mechanical resilience, ensuring long-term operation even in harsh industrial environments. This unit exemplifies Mitsubishi Electric's commitment to delivering cutting-edge power semiconductor solutions that meet the evolving needs of modern automation and control systems.

Key Features

• Dual IGBT configuration in a half-bridge layout for versatile application
• Robust 600 A continuous collector current capability
• High 1200 V collector-emitter voltage for high-power systems
• Advanced trench-gate IGBT design ensures minimal switching losses
• Integrated fast-recovery diodes optimize overall system efficiency
• Chassis mount with an insulated base for superior heat dissipation
• Durable industrial package guarantees reliability and longevity

Technical Specifications

• Part Number: CM600DU-24NF
• Configuration: Dual IGBT with integrated diodes
• Collector Current (Ic): 600 A
• Collector-Emitter Voltage (Vce): 1200 V
• Saturation Voltage (VCE(sat)): Approximately 2.0–2.2 V @ 600 A
• Gate-Emitter Voltage (VGE): ±20 V
• Switching Characteristics: High-speed switching
• Thermal Resistance (Junction-Case): ~0.035 °C/W
• Mounting Type: Chassis mount (insulated base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Standard industrial power module
• Weight: Approximately 600 g

Applications

• High-power industrial inverters and motor drive systems
• Renewable energy converters, including solar and wind power
• Advanced industrial automation and robotics
• Traction systems and power conditioning units
• Uninterruptible Power Supplies (UPS) and critical backup systems
• Electric vehicle charging infrastructure

Why Choose This Model?

• Exceptional 600 A current rating combined with 1200 V blocking voltage provides robust power handling.
• Optimized thermal and switching performance ensures maximum efficiency and reduced operational costs.
• Benefits from Mitsubishi Electric's proven IGBT reliability and stringent quality standards.
• Specifically designed for the rigorous demands of heavy-duty industrial applications.
• Offers an efficient and compact solution for precise power control and management.
• Global availability with worldwide shipping ensures easy access to this vital component.

Order Now

Secure the Mitsubishi CM600DU-24NF IGBT module today and elevate the performance and reliability of your high-power industrial applications. This essential component is readily available and ships worldwide, bringing Mitsubishi Electric's leading-edge technology directly to your projects. Explore our comprehensive collection of Mitsubishi IGBT Modules, specifically curated for high-efficiency power conversion and unwavering performance in industrial automation. Don't miss the opportunity to enhance your systems with this superior solution. Browse the complete range of Mitsubishi IGBT Modules and discover other state-of-the-art power electronics components, including diodes, thyristors, GTOs, and MOSFETs, to optimize your designs.
