Lenze EVS9321-EK

Overview

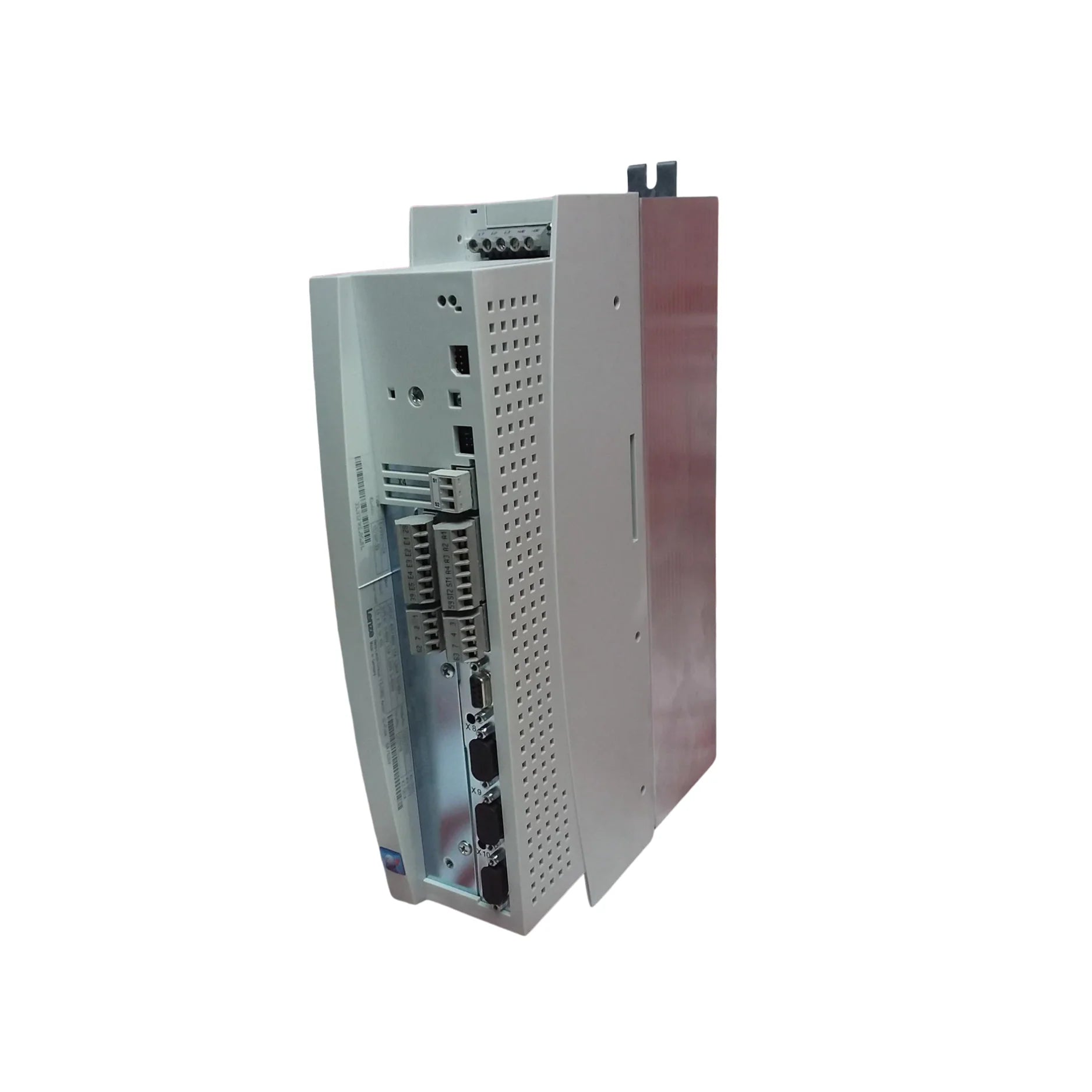

The Lenze EVS9321-EK is a high-performance 0.37 kW servo inverter from the renowned 9300 modular series, meticulously engineered to deliver exceptional precision and control in dynamic automation environments. This specific variant integrates the EK (extension communication) module, significantly enhancing its communication capabilities and seamless integration with external control systems. Designed for applications demanding robust and accurate motor control within compact footprints, the EVS9321-EK is an ideal solution for a diverse range of industrial machinery, ensuring highly efficient vector control for both synchronous and asynchronous motors. Its advanced functionalities make it a critical component for optimizing machine performance and connectivity.

Key Features

• Optimized Power Output: 0.37 kW (0.5 HP) rated power for efficient small drive applications.
• Flexible Input Voltage: 3-phase 400 V AC input, suitable for industrial power grids.
• Advanced Control Modes: Supports both sensorless and encoder-based vector control for superior motor dynamics.
• Integrated EK Extension: Enables sophisticated communication with various external control systems and networks.
• Built-in Brake Chopper: Enhances safety and control during braking operations, especially for applications with high inertia.
• Comprehensive Motion Control: Includes integrated functionalities for precise motion sequencing and positioning.
• Compact & Robust Design: IP20 housing specifically engineered for space-saving cabinet mounting.

Technical Specifications

• Model: EVS9321-EK
• Series: Lenze 9300 Modular Series
• Rated Power: 0.37 kW / 0.5 HP
• Input Voltage: 3 x 400 V AC ±10%
• Output Frequency: 0 – 599 Hz
• Protection Class: IP20
• Cooling: Internal fan
• Mounting: Panel-mounted (cabinet installation)
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)
• Communication Options: Configurable via EK extension (e.g., CAN, RS232, other fieldbuses depending on module)
• Certifications: CE, UL, cUL
• Integrated Features: Brake chopper, motion control functionality

Applications

• Small-Scale Automation Systems: Ideal for compact and distributed control architectures.
• OEM Equipment: Perfect for integration into machinery requiring reliable and precise motor control solutions.
• Conveyor and Positioning Systems: Ensures accurate motion and speed synchronization in material handling.
• Robotics and Material Transport: Provides dynamic control for robotic arms and automated guided vehicles (AGVs).
• Machines with Embedded Control Needs: Suited for specialized equipment that benefits from integrated communication and motion.
• Packaging Machinery: Delivers precise and repeatable movements crucial for efficient packaging processes.

Why Choose This Model?

• Exceptional Precision in a Compact Form: Delivers 0.37 kW of power, perfectly suited for small drives in space-constrained applications without compromising control accuracy.
• Enhanced Communication & Integration: The integral EK extension module provides unparalleled flexibility for integrating with diverse external control systems, streamlining your automation architecture.
• Reliable Performance from a Trusted Brand: Benefit from Lenze's reputation for designing robust and long-lasting industrial automation components, ensuring operational stability and reduced downtime.
• Future-Proof Modular Design: As part of the 9300 modular platform, this servo inverter offers scalability and adaptability, allowing for seamless upgrades and expansions as your system requirements evolve.
• Comprehensive Control Capabilities: Equipped with an integrated brake chopper and advanced motion control, it provides a complete solution for dynamic and demanding motor control tasks.
• Worldwide Availability: Easily accessible and shippable globally, ensuring that your projects can proceed without geographical limitations.

Order Now

Equip your industrial automation systems with the superior precision and enhanced communication capabilities of the Lenze EVS9321-EK servo inverter. This powerful yet compact 0.37 kW unit, part of the acclaimed 9300 modular series, is engineered to elevate the performance and efficiency of a wide array of applications. With its integrated EK extension, you can achieve seamless data exchange and sophisticated control, making it an indispensable asset for modern manufacturing and machinery. Don't miss out on optimizing your operations; order the Lenze EVS9321-EK today and experience the difference that cutting-edge technology and reliable engineering can make. Return to our full selection of Lenze 9300 Servo Inverters EVS Series for more options in this range, or explore our complete catalog of Lenze industrial automation products.
