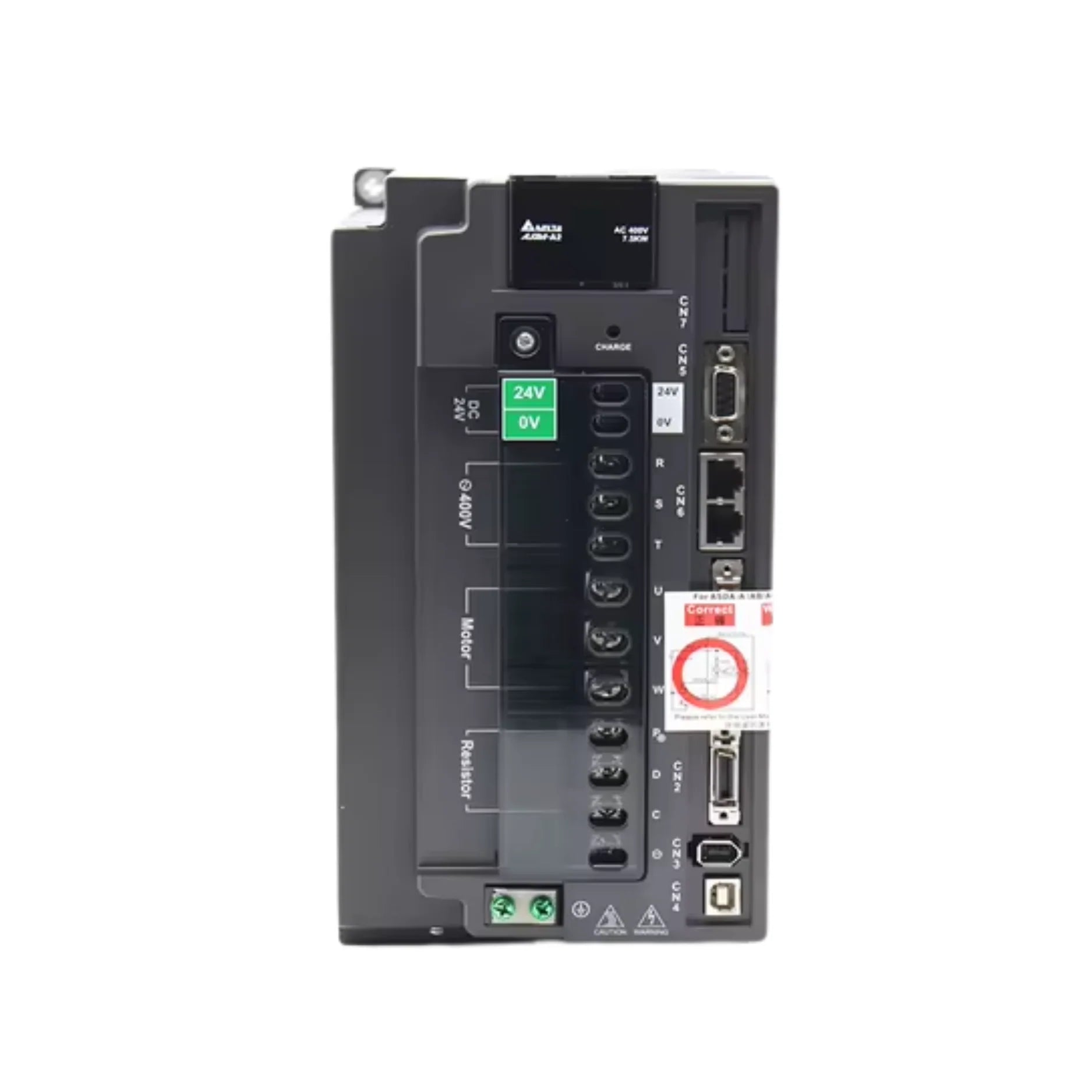

Delta ASD-A2-7543-M – 7.5 kW

Overview

The Delta ASD-A2-7543-M is a powerhouse 7.5 kW servo drive, meticulously engineered as part of Delta's esteemed ASDA-A2 series. This advanced drive is purpose-built to deliver exceptionally precise and dynamic motion control, making it an indispensable component for the most demanding industrial automation environments. Operating seamlessly on a robust 400V 3-phase power supply, the ASD-A2-7543-M integrates effortlessly into complex systems thanks to its advanced CANopen communication capabilities. Furthermore, its innovative full-closed loop control system actively enhances positioning accuracy by vigilantly compensating for even the most subtle mechanical imperfections, ensuring consistently superior performance and reliability.

Key Features

• High Power Output: Delivers a substantial 7.5 kW for robust and efficient operation.
• Advanced Communication: Features CANopen DS301 standard with a rapid 1 Mbps speed for seamless system integration.
• Superior Positioning Accuracy: Utilizes full-closed loop control for enhanced precision.
• Versatile Motion Control: Supports position, speed, and torque control modes for diverse applications.
• Electronic Cam (E-CAM): Offers up to 720 points for executing highly complex and synchronized motion profiles.
• Vibration Suppression: Automatic suppression of both low-frequency and high-frequency resonances for smooth operation.
• Internal Position Mode (PR Mode): Allows for flexible definition of intricate motion paths with up to 64 internal position settings.

Technical Specifications

• Model: ASD-A2-7543-M
• Series: ASDA-A2
• Input Voltage Range: 3-phase 380–480V AC
• Continuous Output Current: 30 Arms
• Peak Output Current: 62.46 Arms
• Power Rating: 7.5 kW
• Communication Protocol: CANopen DS301
• Electronic Cam Points: Up to 720
• Encoder Support: 20-bit incremental encoder for ultimate precision feedback.
• Operating Temperature: 0°C to 55°C
• Control Modes: Position, Speed, and Torque Control
• Dimensions: Please refer to the official ASDA-A2 Series Catalog for comprehensive dimensional details and mounting specifications.

Applications

• CNC Machinery: Essential for achieving ultra-precise tool positioning and ensuring exceptionally smooth, artifact-free operation in advanced machining centers.
• Robotics: Enables highly accurate, responsive, and repeatable movements for both collaborative and industrial robotic systems.
• Packaging Equipment: Significantly enhances synchronization and overall efficiency in high-speed and complex packaging lines, reducing waste and improving throughput.
• Printing Machines: Guarantees consistent and superior-quality print registration, vital for high-resolution graphics and consistent branding.
• Textile Machinery: Adeptly supports the highly complex and synchronized motion requirements prevalent in modern textile production processes, from weaving to cutting.
• Material Handling Systems: Provides robust and reliable control for conveyors, automated storage and retrieval systems (AS/RS), and other logistics applications.

Why Choose This Model?

• Unmatched Precision: Achieve superior control and accuracy with 20-bit encoder support, crucial for critical and delicate operations.
• Seamless Integration: The advanced CANopen interface ensures effortless and efficient communication with existing automation systems, minimizing setup time.
• Robust Industrial Performance: Built to withstand and excel in the most demanding industrial environments, ensuring continuous and reliable operation under heavy loads.
• Exceptional Versatility: Multiple control modes (position, speed, torque) provide unparalleled adaptability to a wide array of application requirements.
• Reliability and Durability: Incorporates advanced built-in protection features, guaranteeing long-term operational stability and extended product lifespan, reducing downtime and maintenance costs.
• Advanced Motion Control: Features like E-CAM and PR Mode empower users to implement highly sophisticated and customized motion profiles.

Order Now

Elevate the performance and precision of your industrial automation systems today. The Delta ASD-A2-7543-M servo drive, a pinnacle of engineering excellence, is available for prompt shipping. Invest in this high-performance drive to unlock new levels of efficiency, accuracy, and reliability in your operations. For a comprehensive overview of our product offerings and to explore further technical specifications, please explore our extensive range of Delta Servo Drives – High-Precision Motion Control, meticulously designed for all your industrial automation needs. Contact us now to secure your advanced motion control solution.
