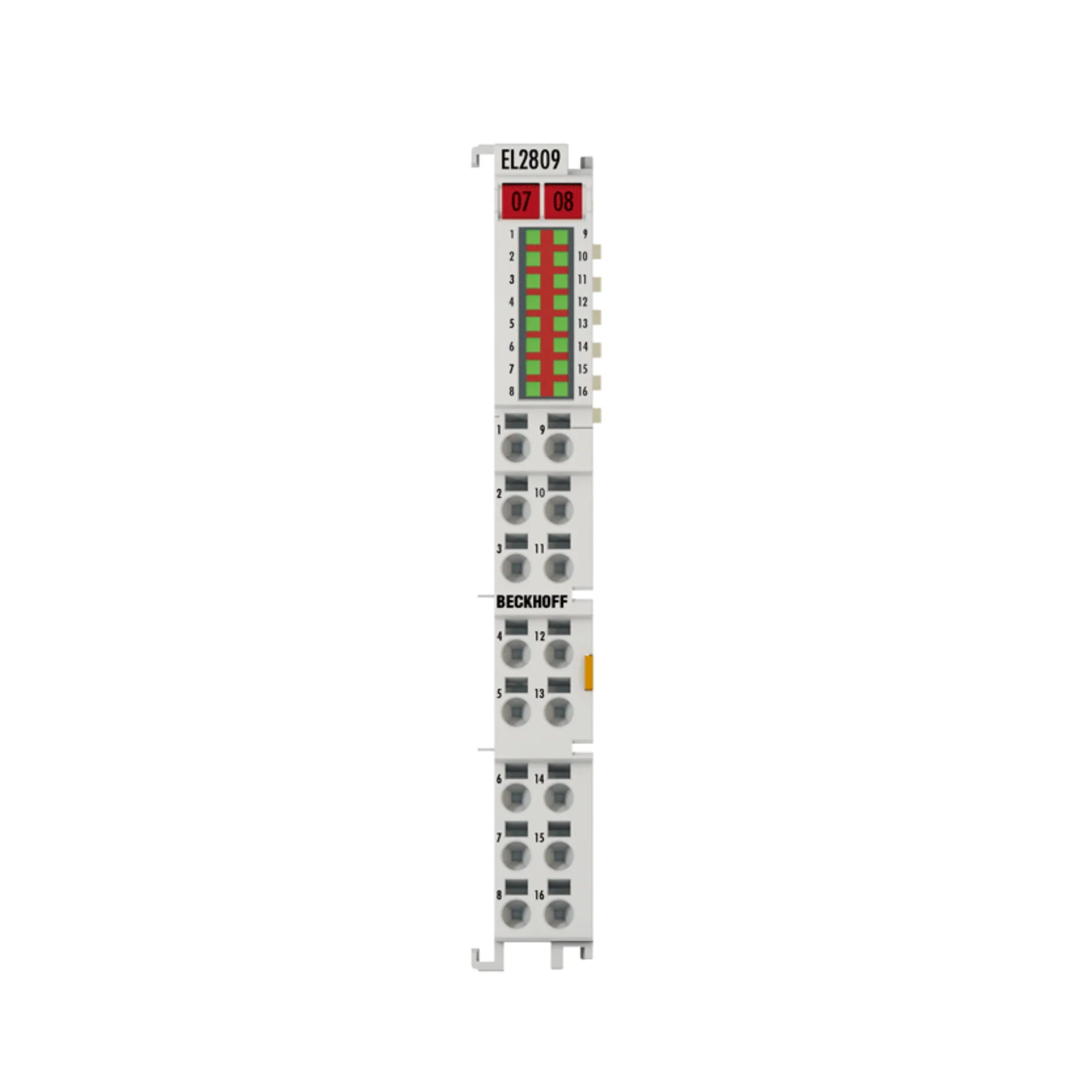

Beckhoff EL2809

Overview

The Beckhoff EL2809 is a high-performance 16-channel digital output terminal, engineered to provide robust and precise control for 24V DC loads. As part of Beckhoff's renowned EtherCAT Terminals series, the EL2809 stands out for its ability to reliably switch up to 0.5A per channel, making it an indispensable component for a wide array of industrial automation tasks. Whether you're actuating solenoids, driving relays, or controlling various actuators, this terminal ensures optimal performance and seamless integration into existing Beckhoff I/O systems. Its design prioritizes efficiency, accuracy, and durability, catering to the demanding environments of modern manufacturing, process control, and machine automation.

This advanced digital output terminal is not just about switching capabilities; it's about enhancing your operational efficiency. With its rapid response times and compact footprint, the EL2809 is perfectly suited for complex automated systems where space is at a premium and real-time control is paramount. Its integration into the EtherCAT communication protocol guarantees high-speed data exchange and synchronized operations across your entire network, solidifying its position as a cornerstone for advanced industrial control solutions.

Key Features

• High-Density 16 Digital Outputs: Maximizes signal switching capacity in a compact form factor.
• Reliable 24V DC Switching: Ensures stable and consistent performance for industrial loads.
• 0.5A Output Current per Channel: Supports a wide range of frequently used industrial actuators and components.
• Fast Response Time: Facilitates real-time automation and immediate signal processing.
• Compact DIN Rail Mounting: Optimizes space utilization within control cabinets.
• Integrated LED Diagnostics: Provides clear and immediate status monitoring for troubleshooting.
• Seamless EtherCAT Integration: Guarantees high-speed communication and full compatibility with Beckhoff I/O systems.

Technical Specifications

• Model: EL2809
• Number of Outputs: 16
• Output Type: Digital (Sink/Source depending on wiring)
• Switching Voltage: 24V DC
• Output Current per Channel: 0.5A
• Total Current: Max 8A (sum of all channels)
• Connection Type: Spring-loaded terminals (no special tools required for wiring)
• Mounting Type: DIN Rail
• Protection Rating: IP20
• Operating Temperature: -25°C to 60°C (-13°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimensions (W x H x D): Approximately 12mm x 100mm x 68mm (standard EtherCAT Terminal dimensions)
• Power Consumption: Typical 65mA (from E-bus)

Applications

• Machine Automation & Control: Precision switching for solenoids, contactors, and pneumatic/hydraulic valves.
• Manufacturing & Process Automation: Ensures fast and reliable control in assembly lines and material processing.
• SCADA & PLC Integration: Seamlessly interfaces with Beckhoff TwinCAT and other compatible control systems.
• Material Handling & Logistics: Enhances the efficiency of conveyor systems, sorters, and robotic grippers.
• Robotics & Motion Control: Provides accurate digital signal control for robotic end-effectors and auxiliary functions.
• Building Management Systems: Controls lighting, HVAC components, and access systems with digital outputs.

Why Choose This Model?

• Unmatched Reliability: Engineered for continuous operation in harsh industrial environments.
• Space-Saving Design: Its compact form factor is perfect for optimizing control cabinet real estate.
• Effortless Integration: Part of the EtherCAT ecosystem, ensuring plug-and-play compatibility with Beckhoff controllers.
• Enhanced Diagnostics: On-board LEDs allow for quick status checks and simplified troubleshooting, minimizing downtime.
• Versatile Application Scope: Suitable for a broad spectrum of industries requiring precise digital output control.
• Future-Proof Technology: Benefits from Beckhoff's continuous innovation in automation and I/O systems.

Order Now

Elevate your automation capabilities with the Beckhoff EL2809 16-channel digital output terminal. This robust and versatile component offers the precision, reliability, and seamless integration you need to optimize your industrial processes. Don't miss out on enhancing your control systems with cutting-edge technology. Order your Beckhoff EL2809 today and experience the difference in performance and efficiency.

Fast shipping and worldwide delivery options are available to ensure your components arrive promptly.
