B&R X20AI1744-3

Overview

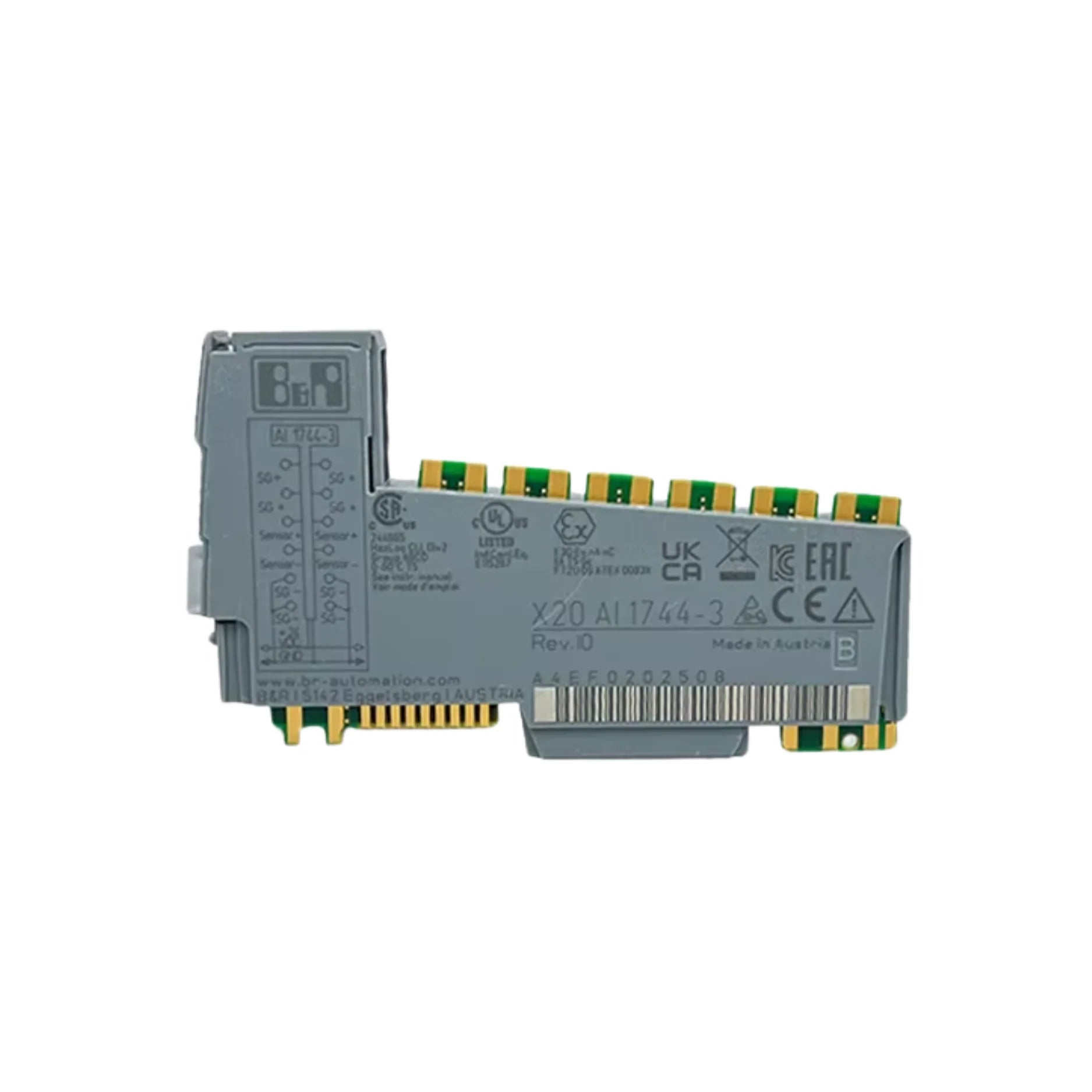

The B&R X20AI1744-3 is an advanced analog input module from the renowned X20 series, meticulously engineered for high-precision measurement applications, particularly those involving full-bridge strain gauges. This module stands out with its exceptional 24-bit resolution, ensuring ultra-accurate data acquisition crucial for demanding industrial environments where even the slightest variations can impact operational efficiency and safety. Its robust design and specialized features make it an indispensable component for systems requiring reliable and precise force, weight, and strain measurements.

Key Features

• High-Resolution Input: Equipped with a single full-bridge strain gauge input for accurate sensor integration.
• Superior 24-bit Resolution: Delivers unparalleled precision in data acquisition, capturing minute changes with exceptional clarity.
• Configurable Data Output Rate: Flexible output rates ranging from 0.1 Hz to an impressive 7.5 kHz to suit diverse application speeds.
• Advanced Operating Modes: Supports synchronous mode and multiple sampling for optimized data collection strategies.
• Adjustable Filter Levels: Allows for configurable filter settings to enhance signal processing and reduce noise interference.
• Wide Compatibility: Seamlessly integrates with both 4-wire and 6-wire strain gauge load cells, offering versatile sensor options.
• ATEX Compliant: Certified for safe operation in hazardous environments, ensuring reliability in challenging industrial settings.

Technical Specifications

• Model Number: X20AI1744-3
• Series: X20
• Input Type: 1 full-bridge strain gauge input
• Resolution: 24-bit
• Input Signal Range: 2 to 256 mV/V
• Excitation Voltage: 5.5 VDC, maximum 65 mA
• Sampling Rate: 0.1 to 7500 samples per second
• Signal-to-Noise Ratio (SNR): 60 dB
• Input Impedance: 85 to 5000 Ω
• Operating Voltage: 24 VDC
• Dimensions (HxWxL): 9.9 cm x 1.25 cm x 7.7 cm
• Weight: Approximately 0.2 kg
• Certifications: ATEX compliant

Applications

• Industrial Automation: Facilitates precise force, weight, and torque measurements within automated manufacturing and assembly lines.
• Material Testing & Quality Control: Essential for accurate strain and stress measurements in research and development, as well as production quality assurance.
• Structural Health Monitoring: Critical for assessing and monitoring stress and strain on vital infrastructure, buildings, and bridges to ensure safety and longevity.
• OEM Equipment Integration: Ideal for integration into specialized machinery and custom systems requiring high-accuracy strain measurement capabilities.
• Process Control: Used in various industries to monitor and control processes where weight or force is a critical parameter.
• Laboratory & Research: Provides reliable data for experimental setups and scientific investigations demanding precise analog input.

Why Choose This Model?

• Unmatched Precision: The 24-bit resolution sets a new standard for accuracy, delivering data you can trust for critical applications.
• Exceptional Flexibility: With configurable data rates and filter levels, this module adapts effortlessly to a wide array of measurement requirements.
• Operate Anywhere: ATEX compliance ensures safe and reliable operation even in the most challenging and potentially hazardous industrial environments.
• Broad Compatibility: Supports both 4-wire and 6-wire strain gauge load cells, offering greater freedom in sensor selection and system design.
• Reliable Performance: Engineered by B&R, a leader in industrial automation, guaranteeing durability and consistent performance.
• Optimized for Strain Gauges: Specifically designed and tuned for full-bridge strain gauge inputs, ensuring optimal performance for these specialized sensors.

Order Now

Elevate your measurement capabilities with the B&R X20AI1744-3 precision analog input module. Its industry-leading accuracy, robust design, and versatile features make it the ideal choice for demanding industrial and scientific applications. Available for immediate worldwide shipping, ensure your operations benefit from unparalleled measurement reliability. Secure yours today and experience the B&R advantage!
