B&R 7DM465.7

Overview

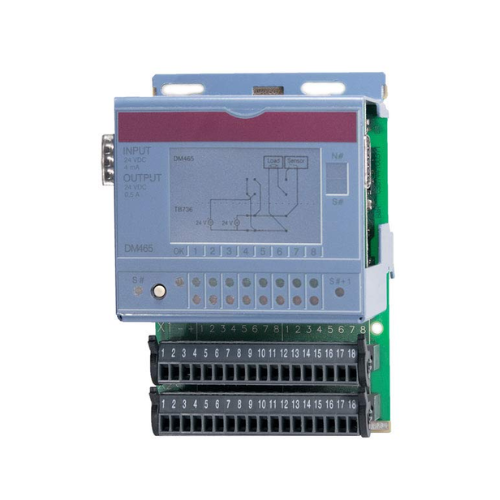

The B&R 7DM465.7 is a high-performance digital mixed module meticulously engineered for seamless integration with B&R 2003 I/O systems. This robust and versatile component combines 16 digital inputs and 16 transistor outputs, all operating efficiently at 24V DC. It serves as a cornerstone for advanced industrial automation, providing precise signal processing and comprehensive control capabilities. Designed to meet the rigorous demands of modern manufacturing and process control, the 7DM465.7 ensures reliable and efficient operation across a multitude of applications, from intricate machine control to extensive process monitoring.

Key Features

• Integrated 16 Digital Inputs (Sink) & 16 Transistor Outputs (High-Side Driver)
• Optimized for 24V DC Operation (18–30V DC Range)
• Fast Input & Output Switching Delays (Max. 1 ms Input, 450 µs I/O)
• Robust Overload Protection with Automatic Recovery
• Comprehensive LED Diagnostics for Status and Health Monitoring
• 500 Veff Isolation Voltage for Enhanced System Protection
• Wide Operating Temperature Range: -25°C to +60°C
• CE, UKCA, cULus HazLoc (Class I, Division 2) Certifications

Technical Specifications

• Model Number: 7DM465.7
• Series: B&R 2003 I/O Systems
• Digital Inputs: 16 channels, Sink connection
• Input Voltage: 24V DC (18–30V DC)
• Input Delay: Maximum 1 ms
• Input Current: Approximately 4 mA per channel at 24V DC
• Switching Thresholds (Input): Low: <5 VDC, High: >15 VDC
• Digital Outputs: 16 transistor outputs, High-side driver
• Output Voltage: 24V DC (18–30V DC)
• Output Current: Up to 0.5 A per channel; Total module current up to 8 A
• Leakage Current (Off-State): 12 µA
• Switching Delay (Output): On to Off: Max. 450 µs, Off to On: Max. 450 µs
• Isolation Voltage: 500 Veff between input/output and PLC
• Power Consumption: Maximum 1.1 W
• Operating Temperature: -25°C to +60°C
• Certifications: CE, UKCA, cULus HazLoc (Class I, Division 2, Groups A, B, C, D)
• Mounting: Compatible with B&R 2003 system racks

Applications

• Industrial Automation: Enhancing signal processing and control within complex automated systems and factories.
• Machine Control: Providing reliable interfaces for sensors and actuators in diverse machinery, optimizing operational efficiency.
• Process Monitoring: Ensuring accurate and robust input/output operations in critical process industries such, as chemical plants and food processing.
• Building Automation: Facilitating the seamless integration of various digital signals within advanced building management systems for smart infrastructure.
• Robotics: Critical for precise control and feedback in robotic arms and automated manufacturing cells.
• Test and Measurement Systems: Offering dependable digital I/O for accurate data acquisition and control in various testing environments.

Why Choose This Model?

• Integrated Efficiency: Combining 16 inputs and 16 outputs in a single module, the 7DM465.7 maximizes space efficiency while streamlining system architecture.
• Unwavering Reliability: Engineered with fast response times and robust protection mechanisms, ensuring consistent and dependable performance even in demanding industrial environments.
• Superior Diagnostics: Equipped with intuitive LED indicators for both input/output status and overall module health, enabling rapid and effective troubleshooting to minimize downtime.
• Seamless Integration: Designed for perfect compatibility with B&R 2003 I/O systems, guaranteeing a hassle-free setup and expansion within existing or new automation projects.
• Global Compliance: With certifications including CE, UKCA, and cULus HazLoc, this module meets stringent international safety and performance standards, making it suitable for global deployment.
• Enhanced Durability: Built for resilience, with an operating temperature range from -25°C to +60°C, ensuring stable operation in a wide array of environmental conditions.

Order Now

Elevate your industrial automation capabilities with the B&R 7DM465.7 Digital Mixed Module. Its advanced features, robust design, and seamless compatibility make it the ideal choice for demanding applications. Available for immediate worldwide shipping, this essential component is ready to empower your control systems. Optimize your operations and secure your competitive edge today.
