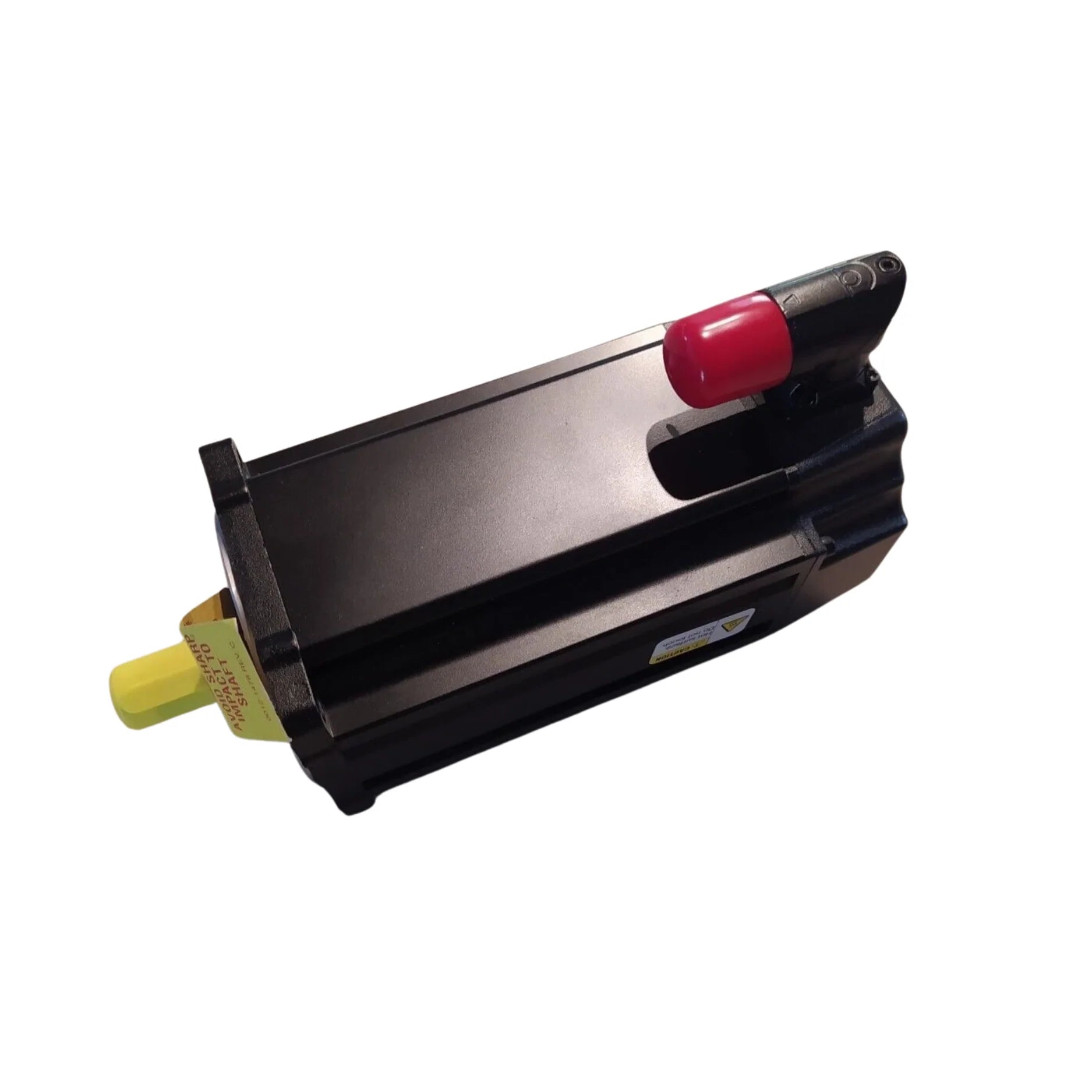

Allen-Bradley VPL-B1152T-PK14AA

Overview

The Allen-Bradley VPL-B1152T-PK14AA is a high-performance Kinetix VP low-inertia servo motor designed for the most demanding precise motion applications. As part of the renowned Kinetix VP series, this motor is engineered to deliver exceptional speed, accuracy, and responsiveness, making it ideal for automation systems requiring rapid acceleration, deceleration, and highly precise positioning. With its robust construction and advanced features, the VPL-B1152T-PK14AA ensures reliable operation and enhanced productivity across a wide range of industrial environments. Its 115 mm frame and specialized T winding support impressive speeds up to 6750 RPM, catering to applications where every millisecond counts. This motor integrates seamlessly into existing Kinetix drive systems, providing a comprehensive solution for sophisticated motion control.

Key Features

• Ultra-High Speed Performance: Achieves speeds up to 6750 RPM, enabling rapid cycle times and high throughput.
• Low Inertia Design: Optimized for dynamic applications demanding fast acceleration and deceleration, leading to precise control.
• Multi-Turn Encoder: Equipped with an 18-bit single-turn and 12-bit multi-turn encoder for superior position feedback and advanced motion control capabilities.
• Keyless Shaft: Facilitates easy and secure mechanical integration, simplifying mounting and reducing installation time.
• Integrated 24V DC Holding Brake: Provides essential safety and control, ensuring loads are held securely when power is removed or in emergency stops.
• Robust 115 mm Frame: Designed for durability and reliable operation in industrial environments.
• 480 VAC Voltage: Compatible with common industrial power supplies for versatile application.

Technical Specifications

• Catalog Number: VPL-B1152T-PK14AA
• Rated Voltage: 480 VAC
• Frame Size: 115 mm bolt circle
• Magnet Stacks: 2
• Winding Type: T
• Rated Speed: 6750 RPM
• Encoder Type: Digital high-resolution (18-bit single-turn + 12-bit multi-turn)
• Shaft Type: Keyless
• Holding Brake: Included, 24 V DC
• Connector Type: SpeedTec DIN, right-angle
• Mounting Style: IEC metric flange
• Protection Rating: IP50
• Operating Temperature: 0 °C to 40 °C
• Weight: Approximately 7.8 kg

Applications

• High-speed conveying and intricate indexing systems requiring precise product placement.
• Advanced robotics and pick-and-place automation where rapid, repeatable movements are critical.
• Motion platforms with stringent response requirements, such as flight simulators or test equipment.
• OEM machinery demanding compact, yet powerful and highly responsive motor solutions.
• Complex servo systems necessitating fast acceleration and deceleration for improved cycle times and efficiency.
• Packaging and material handling systems benefiting from quick and accurate positioning.

Why Choose This Model?

• Superior Performance: The exceptional 6750 RPM performance ensures rapid cycle times and maximizes throughput in high-demand applications.
• Enhanced Accuracy: Low-inertia capabilities coupled with a high-resolution multi-turn encoder enable remarkably fast and supremely accurate motion control.
• Simplified Integration: The keyless shaft design streamlines mechanical integration, reducing installation complexity and maintenance efforts.
• Increased Safety: An integrated 24 V DC holding brake provides an additional layer of safety and control, crucial for applications involving vertical loads or emergency stops.
• Robust and Reliable: Built with industrial-grade quality, ensuring long-term reliability and consistent performance in challenging operational environments.
• Global Availability: This product ships worldwide, ensuring accessibility for diverse international projects.

Order Now

Elevate your automation systems with the precision and speed of the Allen-Bradley VPL-B1152T-PK14AA Kinetix VP Low-Inertia Servo Motor. This motor is readily available and ready to ship worldwide, providing a powerful solution for your most demanding motion control needs. Explore our extensive selection of Kinetix VPL Low-Inertia Servo Motors and other Allen-Bradley Servo Motors today to discover the perfect components to optimize your industrial processes and achieve unparalleled operational efficiency.
