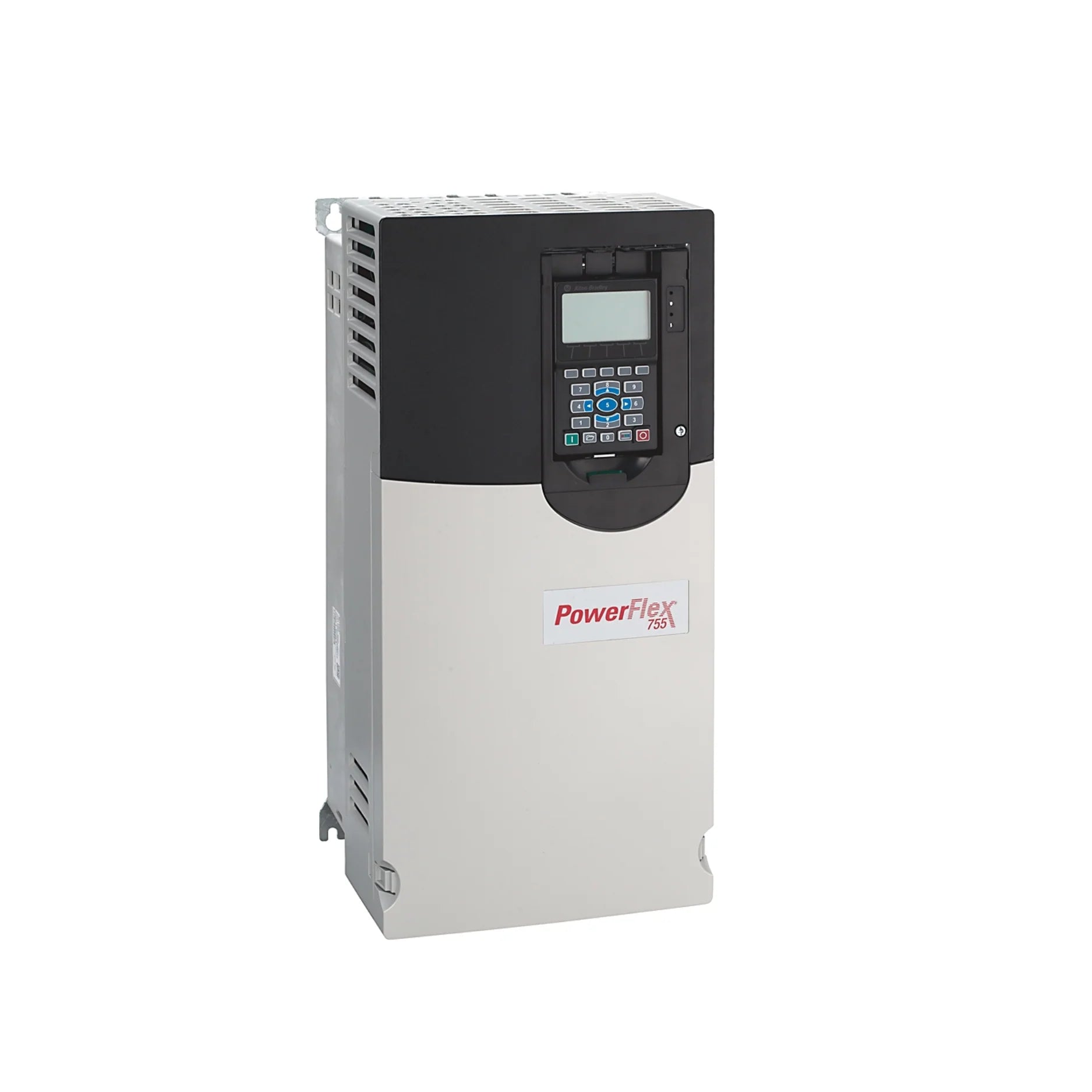

Allen Bradley 20G11NC104JA0NNNNN

Overview

The Allen-Bradley PowerFlex 755 AC Drive (model 20G11NC104JA0NNNNN) is a high-performance, robust, and versatile solution engineered for the most demanding heavy industrial automation applications. As part of the renowned PowerFlex 755 series, this drive offers precise and powerful motor control for machinery requiring substantial operational capabilities. Designed for adaptability, it features dual Normal Duty (55kW) and Heavy Duty (45kW) ratings, making it ideal for a wide array of demanding load requirements. Its air-cooled, open-type (IP00) design ensures reliable performance in standard industrial environments, providing an efficient and controlled solution for high-power settings. This particular model is a Frame 5 drive, signifying a larger physical footprint built for serious industrial integration. The 20G11NC104JA0NNNNN is an integral component for optimizing efficiency and control in critical industrial processes.

Key Features

• Dual Duty Ratings: Offers 55kW Normal Duty and 45kW Heavy Duty for enhanced application flexibility.
• Air Cooled, Open Type (IP00): Efficient cooling designed for seamless integration into existing industrial enclosures.
• 400V AC Input, 3-Phase: Ensures compatibility with standard industrial power grids for straightforward implementation.
• AC Input with Precharge: Facilitates smooth and controlled motor startups, safeguarding motor and drive components.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), improving overall system reliability and performance.
• Built-in DB Transistor: Enables dynamic braking for rapid deceleration and precise motor stopping control.
• Packaged Drive: All essential components are included for simplified and rapid installation, saving time and resources.

Technical Specifications

• Manufacturer: Rockwell Automation (Allen-Bradley)
• Series: PowerFlex 755
• Model: 20G11NC104JA0NNNNN
• Type: AC Packaged Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - requires external enclosure for protection)
• Frame Size: 5
• Input Voltage: 400 V AC, 3-Phase
• Current Rating: 104 A
• Capacity (Normal Duty): 55 kW
• Capacity (Heavy Duty): 45 kW
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Included (Built-in)
• Filtering: Included (Integrated for EMI reduction)
• CM Jumper: Installed (For enhanced EMC compliance)
• Human Interface Module (HIM): Not Included (Blank)

Applications

• Large-scale pumps and fans in demanding industrial processes, HVAC, and water/wastewater treatment plants.
• Heavy-duty conveyors and complex material handling systems in manufacturing, warehousing, and mining.
• Large packaging machinery and complex automated assembly lines requiring precise motor control.
• High-power machine automation and sophisticated process control systems.
• Heavy-duty textile machinery, large-scale woodworking equipment, and metalworking machinery.
• Oil and gas operations, including drilling, pumping, and refining applications.

Why Choose This Model?

• Superior Performance: Delivers robust and precise motor control for mission-critical industrial operations.
• Versatile Duty Ratings: Adaptable to a wide range of applications with both Normal and Heavy Duty capabilities.
• Enhanced Reliability: Integrated filtering and precharge functionality ensure stable and consistent operation in challenging environments.
• Simplified Installation: As a packaged drive, it includes key components for quicker setup and reduced commissioning time.
• Optimized for Heavy Industry: Specifically designed to meet the rigorous demands of high-power industrial automation.
• Rockwell Automation Quality: Benefit from the trusted reliability, support, and engineering excellence of Allen-Bradley products.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley PowerFlex 755 AC Drive 20G11NC104JA0NNNNN. This powerful and versatile drive is an essential asset for optimizing the efficiency, control, and reliability of your high-power motor applications. Contact us today to secure your solution and enhance your operational performance with this industry-leading technology.
