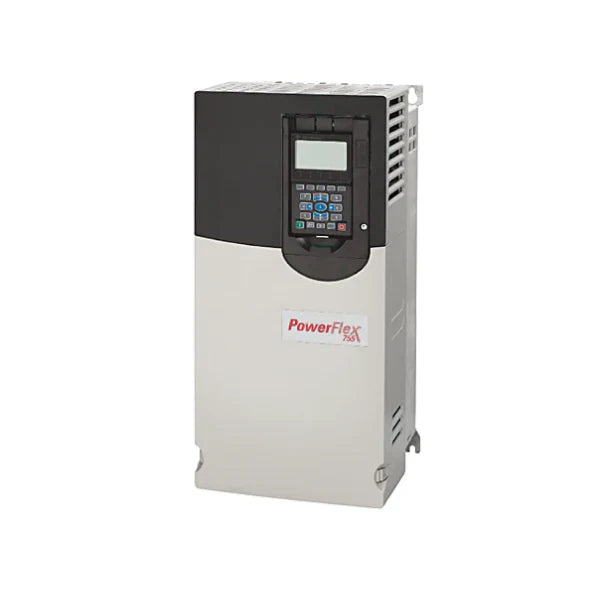

Allen Bradley 20G1ANF142JN0NNNNN

Overview

The Allen-Bradley PowerFlex 755 20G1ANF142JN0NNNNN AC Drive is a high-performance, open-type solution meticulously engineered for strenuous industrial automation environments requiring precise motor control at 690V. As part of the renowned PowerFlex 755 series from Rockwell Automation, this drive is celebrated for its versatility, reliability, and robust design. It stands out with integrated Ethernet/IP capabilities, ensuring seamless integration into modern industrial networks for advanced control and monitoring. This particular model, a Frame 6 drive, is ideally suited for applications demanding high power output and efficient operation. Its dual rating of 132kW Normal Duty and 110kW Heavy Duty provides exceptional flexibility, allowing it to adapt to a wide spectrum of load requirements within challenging operational settings. Designed specifically for 690V AC input, it does not include DC terminals, streamlining its application in dedicated AC systems.

Key Features

• Embedded Ethernet/IP: Facilitates effortless integration into EtherNet/IP networks, enabling sophisticated control, real-time monitoring, and efficient data acquisition capabilities.
• Air Cooled, Open Type (IP00): Engineered with an efficient air-cooling system and an open-type design, suitable for standard industrial environments while requiring an appropriate external enclosure for optimal protection.
• 690V AC Input, 3-Phase: Specifically designed to be compatible with high-voltage 690V industrial power systems, a crucial differentiator for demanding applications.
• Dual Rating (132kW ND / 110kW HD): Offers unparalleled flexibility with both Normal Duty and Heavy Duty ratings, allowing adaptation to diverse load profiles and application requirements.
• AC Input with Precharge: Ensures a smooth and controlled motor startup sequence, significantly reducing mechanical stress on both the motor and the drive components.
• Integrated Filtering: Effectively minimizes electromagnetic interference (EMI), thereby enhancing overall system performance and ensuring superior reliability within demanding industrial settings.
• CM Jumper Installed (Preferred): Streamlines grounding procedures and significantly improves electromagnetic compatibility (EMC) compliance for stable operation.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANF142JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for protection)
• Frame Size: 6
• Main Power Supply: 690 V AC, 3-Phase
• Current: 142 A
• Capacity: 132 kW (Normal Duty), 110 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included

Applications

• High-power pumps and fans in industrial processes, HVAC systems, and water/wastewater treatment facilities.
• Heavy-duty conveyors and sophisticated material handling systems across manufacturing, warehousing, and logistics operations.
• Large-scale packaging machinery, intricate automated assembly lines, and various other automated production equipment.
• Advanced high-power machine automation and critical process control systems.
• Specialized machinery in textile, woodworking, and metalworking industries requiring precise speed and torque control.
• Mining and aggregate processing equipment that demands robust and reliable motor operation.

Why Choose This Model?

• Unmatched Control at High Voltage: Specifically designed for 690V applications, providing optimal performance and efficiency where it matters most.
• Seamless Network Integration: Embedded Ethernet/IP ensures effortless integration into existing control systems, offering superior flexibility and accessibility.
• Versatility for Diverse Loads: The dual Normal Duty and Heavy Duty ratings provide exceptional adaptability for various industrial loads, maximizing operational efficiency.
• Enhanced Reliability: Features like integrated filtering and AC input with precharge contribute to a stable and reliable operation, minimizing downtime.
• Robust Industrial Design: As a Frame 6, open-type drive from Rockwell Automation, it represents a commitment to durability and performance in harsh environments.
• Long-Term Value: Investing in a high-quality Allen-Bradley drive ensures longevity, reduced maintenance, and consistent performance for critical operations.

Order Now

Elevate your industrial processes with the superior control and reliability of the Allen-Bradley PowerFlex 755 20G1ANF142JN0NNNNN AC Drive. Engineered for high-voltage applications and demanding environments, this drive offers the performance and integration capabilities you need to optimize your operations. Secure your crucial component today and experience the difference that genuine Rockwell Automation quality can make.
