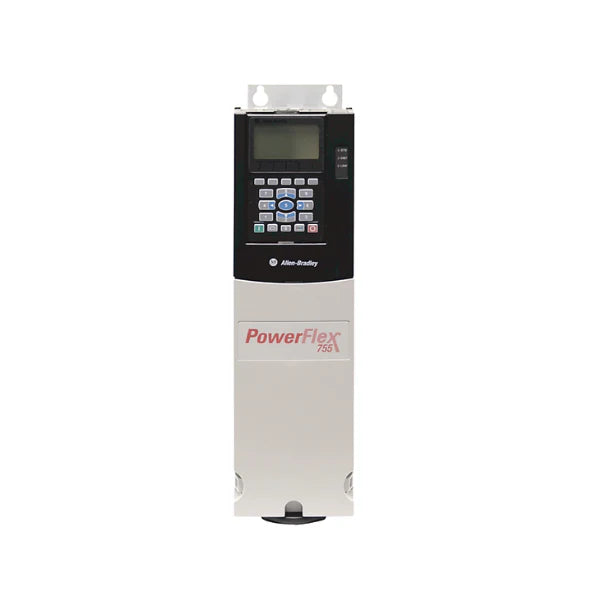

Allen Bradley 20G11RC8P7JA0NNNNN

Overview

The Allen-Bradley PowerFlex 755 AC Packaged Drive, model 20G11RC8P7JA0NNNNN, is a robust and compact motor control solution engineered for a wide array of demanding industrial automation applications. Part of the renowned PowerFlex 755 series, this drive delivers powerful and efficient performance in a space-saving design, making it an ideal choice for installations where footprint is a critical consideration. Its air-cooled, open-type configuration ensures reliable operation, while the dual Normal Duty (ND) and Heavy Duty (HD) ratings provide exceptional versatility to handle diverse load requirements across various industries.

Key Features

• Compact Design (Frame 1): Minimizes installation footprint, perfectly suited for space-constrained environments and retrofit applications.
• Air Cooled, Open Type (IP00): Offers efficient cooling for standard industrial environments (requires appropriate external enclosure for protection).
• 400V AC Input, 3-Phase: Ensures seamless compatibility with common global industrial power systems.
• Dual Rating (4kW ND / 2.2kW HD): Provides unparalleled flexibility to accommodate varying load profiles and application demands.
• AC Input with Precharge: Guarantees smooth and controlled motor startup, significantly reducing mechanical and electrical stress.
• Integrated Filtering: Effectively reduces electromagnetic interference (EMI), leading to enhanced system performance and overall reliability.
• Built-in DB Transistor: Facilitates dynamic braking for rapid deceleration and precise control of motor stopping sequences.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G11RC8P7JA0NNNNN
• Type: AC Packaged Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for environmental protection)
• Frame Size: 1
• Main Power Supply: 400 V AC, 3-Phase
• Current: 8.7 A
• Capacity (Normal Duty): 4 kW
• Capacity (Heavy Duty): 2.2 kW
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)

Applications

• Pumps and Fans: Ideal for HVAC systems, water circulation, and industrial fluid handling applications.
• Conveyors and Material Handling: Suited for manufacturing, warehousing, and logistics operations requiring precise material movement.
• Packaging Machinery: Enhances performance in automated assembly lines and other automated production equipment.
• General Machine Automation: Perfect for simple to moderately complex machine automation and process control systems.
• Textile and Woodworking Equipment: Provides reliable motor control for light to medium industrial machinery.

Why Choose This Model?

• Space-Saving Efficiency: Its compact Frame 1 design minimizes installation footprint, making it perfect for confined environments and legacy system upgrades.
• Simplified and Rapid Installation: The packaged drive concept streamlines setup and integration, significantly reducing both installation time and associated costs.
• Unmatched Operational Flexibility: With dual Normal Duty and Heavy Duty ratings, this drive effortlessly adapts to diverse load conditions and application demands.
• Enhanced System Reliability: Integrated filtering and AC input with precharge contribute to superior system performance and extended operational lifespan.
• Precise Motor Control: The built-in DB transistor enables dynamic braking, ensuring accurate and rapid motor deceleration for improved process control.
• Trusted Brand Quality: As an Allen-Bradley product from Rockwell Automation, you benefit from industry-leading quality, reliability, and support.

Order Now

Unlock peak performance and efficiency in your industrial applications with the Allen-Bradley PowerFlex 755 AC Packaged Drive (20G11RC8P7JA0NNNNN). This high-performance, compact drive is engineered to deliver reliable motor control, simplify installations, and optimize operations. Don't compromise on quality or performance. Invest in a solution that brings robust control and flexibility to your systems. Contact us today to secure your PowerFlex 755 drive and elevate your automation capabilities.
