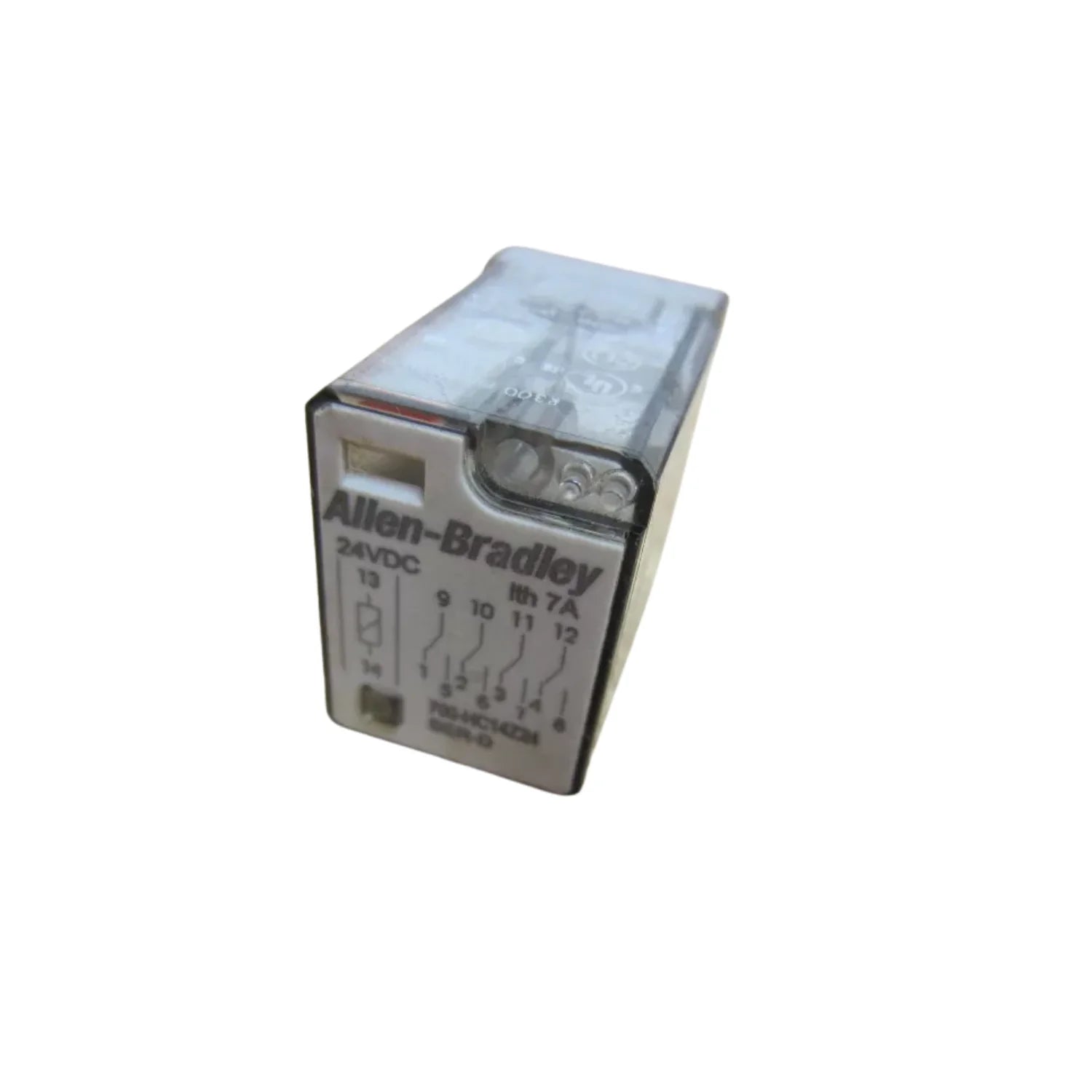

Allen-Bradley 700-HC14Z24

Overview

The Allen-Bradley 700-HC14Z24 is a high-performance, general-purpose relay from the renowned 700-HC series, meticulously engineered to provide exceptional reliability and versatility in a wide range of industrial automation and process control applications. Designed to handle both low-energy signals and higher current switching, this robust 4PDT (Four Pole Double Throw) relay is a cornerstone for systems requiring precision control and dependable operation, especially in environments where consistent conductivity is paramount.

With its gold-plated contacts, the 700-HC14Z24 is specifically optimized for low-current applications, ensuring that even the most delicate control circuits operate without interruption. This makes it an ideal choice for integrating into complex industrial control panels, safety circuits, and systems demanding superior signal integrity. Its 24V DC coil voltage aligns with industry standards, facilitating seamless integration into existing and new control architectures.

Key Features

• 4PDT (Four Pole Double Throw) Contact Configuration: Offers extensive switching flexibility with four independent sets of contacts, enabling control over multiple circuits simultaneously and enhancing system complexity.
• Gold-Plated Contacts: Guarantees unparalleled reliability and conductivity in low-current environments (rated 10V, 1mA), while still maintaining a robust 10A maximum current rating for versatile application.
• 24V DC Coil Voltage: Provides standard operating voltage for industrial control systems, ensuring compatibility and ease of integration into common electrical setups.
• Compact and Durable Design: Built to withstand the rigors of industrial settings, offering long-term efficiency and unwavering performance in demanding automation and process control applications.
• Blade Terminal Connections: Facilitates quick, secure, and straightforward wiring, significantly reducing installation time and ensuring reliable electrical connections.
• Optimized for Low-Energy Applications: Specifically designed to perform reliably with low-voltage and low-current signals, making it perfect for sensitive control circuits.
• Socket Mount Compatibility: Designed to fit standard 700-HC relay sockets, ensuring easy installation, maintenance, and replacement.

Technical Specifications

• Model: 700-HC14Z24
• Series: 700-HC
• Coil Voltage: 24V DC
• Contact Rating: 10A max
• Low Energy Rating: 10V, 1mA
• Contact Configuration: 4PDT (Four Pole Double Throw)
• Contact Material: Gold-plated
• Connection Type: Blade Terminal
• Mounting Type: Socket Mount (for use with compatible 700-HC sockets)
• Enclosure Type: Open style (designed for integration into control panels)
• Operating Temperature: Varies by application and enclosure, typically suited for standard industrial environments.

Applications

• Industrial Automation Systems: Essential for control logic, interlocks, and signaling in machinery, conveying systems, and automated production lines.
• Process Control and Monitoring: Provides reliable switching for critical automated processes in manufacturing, chemical, and pharmaceutical industries.
• Low-Voltage Signal Processing: Ideal for sensitive control circuits, sensor interfaces, and data acquisition systems where low-energy signals require precise handling.
• Building Management Systems (BMS): Enables efficient control of lighting, HVAC, security systems, and access control within commercial and industrial buildings.
• Safety Circuits: Can be integrated into interlocking safety systems to ensure machine operation only under safe conditions.
• Control Panel Integration: A versatile component for a wide array of control panel designs, serving as an intermediate switch or for signal amplification.

Why Choose This Model?

• Unwavering Reliability: The gold-plated contacts ensure consistent, high-performance operation, especially in critical low-current applications, minimizing downtime and maintenance.
• Exceptional Versatility: Capable of handling both low-energy signals and higher current switching, making it a flexible solution for diverse industrial requirements.
• Seamless Integration: Designed with a 24V DC coil and blade terminals, along with socket mount compatibility, facilitating easy and rapid integration into existing and new control systems.
• Durability for Demanding Environments: Engineered by Allen-Bradley, a leader in industrial control, for longevity and robust performance in harsh industrial conditions.
• Enhanced Control Capabilities: The 4PDT configuration provides extensive switching options, allowing for more complex and precise control over multiple circuits.
• Optimized for Modern Industrial Needs: Addresses the growing demand for reliable components in increasingly sophisticated automation and control architectures.

Order Now

Elevate the reliability and efficiency of your industrial control systems with the Allen-Bradley 700-HC14Z24 4PDT General Purpose Relay. Featuring gold-plated contacts for dependable low-energy performance and a robust design for demanding environments, this relay is an indispensable component for any modern automation setup. Secure your operations with Allen-Bradley's trusted quality and advanced engineering. Order yours today to experience unparalleled control and peace of mind.
