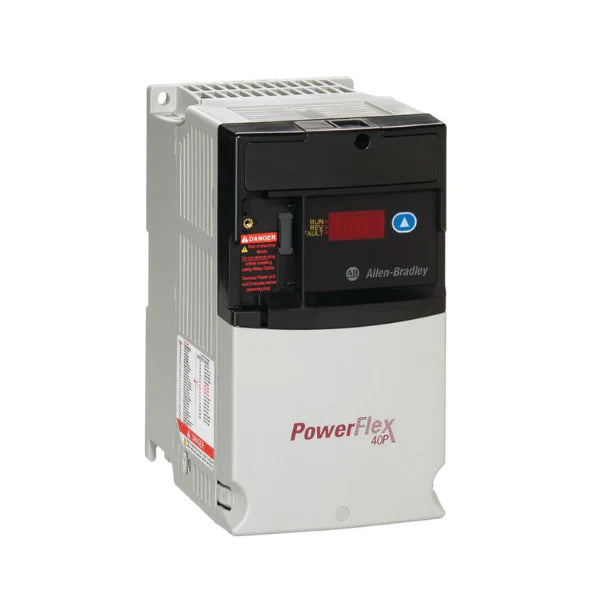

Allen-Bradley 22D-D1P4N104

Overview

The Allen-Bradley 22D-D1P4N104 PowerFlex 40P AC Drive is a robust and reliable solution engineered for precise motor control within a wide range of industrial applications. Part of the renowned PowerFlex 40P series, this AC drive delivers exceptional performance and efficiency for small motor-driven systems. Designed with reliability and cost-effectiveness in mind, it provides the essential features needed for effective motor management without unnecessary complexities, making it an ideal choice for businesses seeking streamlined operation and proven Allen-Bradley quality.

Key Features

• Optimized Motor Control: Provides reliable and precise control for small motors in industrial settings.
• 480V AC, 3-Phase Input: Configured for common industrial power supplies, ensuring broad compatibility.
• 0.4 kW (0.5 HP) Output: Perfectly suited for applications requiring modest power output.
• Compact Frame Size B: Designed for space-efficient integration into control panels.
• IP20 Protection: Offers protection against dust and touch, ensuring durability in various industrial environments.
• Panel Mount Design: Facilitates easy and secure installation within existing systems.
• Simplified Operation: Features a "Display Reset Only" function for straightforward control and maintenance.

Technical Specifications

• Model: 22D-D1P4N104
• Series: PowerFlex 40P
• Input Voltage: 480V AC, 3-Phase
• Output Power: 0.4 kW (0.5 HP)
• Output Current: 1.4 Amps
• Frame Size: B
• Mounting: Panel Mount
• Protection: IP20 (NEMA Type Open)
• Control Method: Display Reset Only
• Filter: Without CE Compliant Filter (cost-effective configuration)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Humidity: 95% non-condensing
• Weight: 1.75 kg (3.85 lbs)
• Dimensions (Approximate): Please refer to Allen-Bradley documentation for precise dimensions.

Applications

• Industrial Automation: Expertly controls small motors in automated production lines and systems.
• Pumps & Fans: Ideal for efficient management of motors in HVAC, water, and other fluid handling systems.
• Conveyor Systems: Ensures smooth and reliable operation of material handling and conveying equipment.
• Machines with Variable Loads: Provides consistent and stable performance for machinery operating under fluctuating loads.
• OEM Integration: An excellent choice for original equipment manufacturers seeking a dependable motor control component.
• Packaging Machinery: Enhances the precision and speed of various packaging processes.

Why Choose This Model?

• Cost-Effective Reliability: Offers a high-quality, dependable solution without unnecessary features, optimizing your investment.
• Seamless Integration: Its compact Frame Size B and panel mount design ensure easy and efficient installation into existing control panels.
• Robust Protection: The IP20 rating provides essential protection against dust and incidental contact, extending the drive's lifespan in industrial settings.
• User-Friendly Operation: With its "Display Reset Only" functionality, the drive is incredibly straightforward to operate and maintain, reducing training time.
• Trusted Allen-Bradley Quality: Benefit from the legendary reliability and engineering excellence synonymous with the Allen-Bradley brand.
• Versatility for Small Motor Needs: Perfectly engineered for a wide array of small motor applications, providing consistent and efficient performance across diverse industries.

Order Now

Elevate your motor control capabilities with the Allen-Bradley 22D-D1P4N104 PowerFlex 40P AC Drive. Its combination of performance, reliability, and cost-effectiveness makes it an indispensable component for modern industrial operations. Secure your competitive edge by integrating this advanced AC drive into your systems today. Contact us to learn more or to place your order and experience the difference of genuine Allen-Bradley quality.
