Allen-Bradley 22-HIM-C2S

Overview

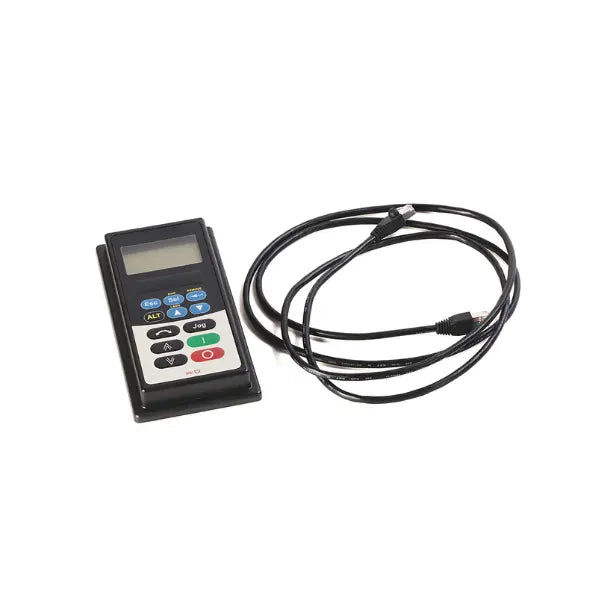

The Allen-Bradley 22-HIM-C2S is a highly efficient Human Interface Module (HIM) specifically engineered to seamlessly integrate with PowerFlex 4 and PowerFlex 4M series variable frequency drives (VFDs). This essential module provides an intuitive and robust interface, empowering users with comprehensive control, accurate configuration, and real-time monitoring of drive parameters. Designed for both ease of use and paramount reliability, the 22-HIM-C2S is an indispensable component for optimizing operational efficiency and ensuring precision in diverse industrial applications.

Key Features

• User-Friendly Interface: Equipped with a clear 2-line, 16-character LCD display and an 8-button keypad for effortless navigation and parameter adjustment.
• Real-Time Monitoring Capabilities: Delivers instant access to critical drive status, motor parameters, and fault diagnostics, significantly enhancing troubleshooting and maintenance workflows.
• Broad Compatibility: Guarantees seamless operation and integration with both PowerFlex 4 and PowerFlex 4M VFD models, providing versatile application options.
• Simplified Installation: Engineered for quick and straightforward installation, allowing for rapid integration into existing industrial setups with minimal downtime.
• Robust Industrial Design: Constructed to endure demanding industrial environments, ensuring sustained reliability and consistent performance over extended periods.
• Cost-Effective Control Solution: Offers an economical yet powerful solution for managing and monitoring drive systems, eliminating the need for complex and expensive external devices.
• Enhanced Operational Control: Provides direct and precise control over VFD operations, contributing to improved process accuracy and overall system performance.

Technical Specifications

• Model Number: 22-HIM-C2S
• Type: Human Interface Module (HIM)
• Compatibility: Designed for PowerFlex 4 and PowerFlex 4M series drives
• Display: 2-line, 16-character LCD display for clear parameter visualization
• Keypad: 8-button tactile keypad for quick and accurate adjustments
• Mounting Type: Removable; easily attachable directly to the drive unit
• Communication: Direct connection to PowerFlex drives for real-time data exchange
• Dimensions (HxWxD): Approximately 3.5 x 2.5 x 1.0 inches (89 x 64 x 25 mm)
• Power Supply: Receives power directly from the connected PowerFlex drive
• Certifications: UL Listed, CE Compliant, RoHS Compliant, ensuring global standards adherence
• Operating Temperature: Designed for standard industrial operating temperature ranges (refer to PowerFlex drive manual for specific limits)

Applications

• Motor Control Systems: Essential for precise control and monitoring of motors across various industrial automation sectors, including pumps, conveyor belts, and HVAC systems.
• Industrial Automation & Manufacturing: Widely deployed in manufacturing plants, sophisticated material handling systems, and advanced packaging machinery for comprehensive drive control and real-time monitoring.
• Energy Management: Critical for optimizing energy consumption by providing operators with vital drive parameters and diagnostic insights, leading to superior performance and effective energy usage strategies.
• System Diagnostics & Troubleshooting: Facilitates rapid fault detection and efficient diagnostics, significantly reducing potential downtime and elevating overall system reliability.
• Process Control: Ideal for applications requiring fine-tuned control over variable speed drives to maintain precise process parameters.
• Water and Wastewater Treatment: Used for managing pump operations and other critical processes in municipal and industrial water treatment facilities.

Why Choose This Model?

• Enhanced Control & Visibility: Gain unparalleled control and clear visibility into your PowerFlex drive operations, leading to improved efficiency and reduced errors.
• Seamless Integration: Enjoy effortless integration with your existing PowerFlex 4 and 4M VFDs, ensuring a smooth upgrade or installation process.
• Reliable Performance: Benefit from Allen-Bradley's reputation for robust and durable industrial components, guaranteeing long-lasting and consistent operation in challenging environments.
• Simplified Maintenance: Leverage real-time diagnostics and user-friendly controls to streamline maintenance procedures and minimize unexpected downtime.
• Optimized Productivity: Empower your operators with an intuitive interface, allowing for quicker adjustments and more effective management of drive-controlled processes, ultimately boosting productivity.
• Trusted Brand Quality: Invest in a product from Allen-Bradley, a global leader in industrial automation, synonymous with innovation and quality.

Order Now

Elevate the control and monitoring capabilities of your PowerFlex 4 and PowerFlex 4M drives with the Allen-Bradley 22-HIM-C2S Human Interface Module. This powerful yet easy-to-use device is an indispensable tool for enhancing operational efficiency, streamlining diagnostics, and ensuring reliable performance in your industrial applications. Secure your 22-HIM-C2S today and experience superior drive management.
