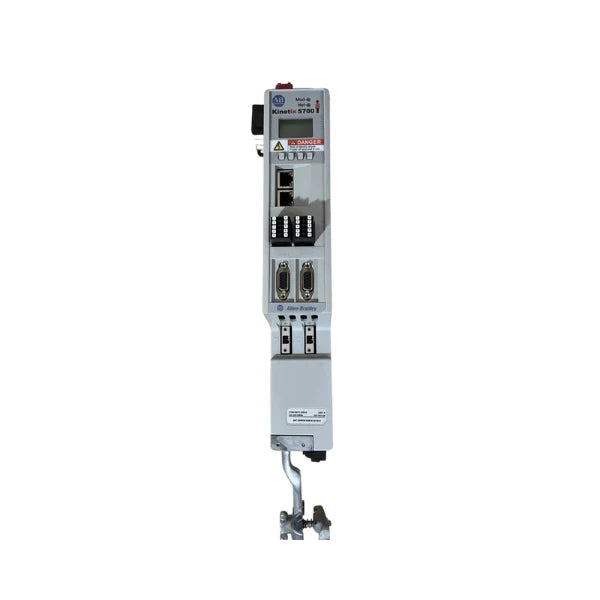

Allen-Bradley 2198-D012-ERS3

Overview

The Allen-Bradley 2198-D012-ERS3 is a high-performance Kinetix 5700 EtherNet/IP Integrated Drive System, meticulously engineered by Rockwell Automation to meet the rigorous demands of modern industrial automation. This advanced drive system is specifically designed for precise motor control in dynamic and high-throughput applications, seamlessly integrating into your existing EtherNet/IP network infrastructure. It delivers unparalleled control, ensuring optimal operational efficiency and reliability for a wide range of industrial processes.

Key Features

• EtherNet/IP Compatibility: Facilitates high-speed, real-time communication for unified control within networked environments.
• Integrated Drive Solution: Combines drive and motor control functionalities into a single, compact unit, streamlining system design and expediting installation.
• Flexible Configuration: Adaptable to a diverse array of industrial applications, from straightforward setups to intricate high-performance systems.
• Superior Performance: Supports advanced feedback mechanisms and offers highly precise motor control for critical applications such as conveyor systems, packaging machinery, and industrial robotics.
• Enhanced Diagnostics: Features sophisticated diagnostic tools that simplify troubleshooting and minimize costly downtime, maximizing operational uptime.
• Modular Design: Enables effortless expansion of your automation system with additional drives, facilitating seamless integration into larger, complex industrial architectures.
• Robust Construction: Built to withstand demanding industrial environments, ensuring long-term reliability and consistent performance.

Technical Specifications

• Product Type: Integrated Drive System
• Series: Kinetix 5700
• Model Number: 2198-D012-ERS3
• Brand: Allen-Bradley / Rockwell Automation
• Power Rating: 12 A Continuous, 12 A Peak (at 480V AC)
• Input Voltage: 380-480V AC, 3-Phase
• Output Voltage: 0-480V AC
• Control Method: EtherNet/IP for networked control of drives and motors
• Dimensions: 13.3 x 7.8 x 4.5 inches (338 x 198 x 114 mm)
• Weight: 6.5 lbs (2.95 kg)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Communication Interface: EtherNet/IP
• Cooling Method: Forced-air cooling with internal fan
• Overload Capacity: 200% for 1 second
• Fusing Requirements: 25 A for short circuit protection
• Certifications: UL, CE, CSA, RoHS compliant

Applications

• Conveyor Systems: Optimally controls speed and movement in various material handling and logistics conveyor systems.
• Packaging Machines: Provides exceptionally precise motor control for packaging applications that demand stringent control over speed and torque parameters.
• Robotic Systems: Delivers high-performance control capabilities essential for industrial robots in advanced manufacturing settings.
• Machine Tools: Perfectly suited for CNC machines, lathes, mills, and other precision equipment requiring exact and repeatable motion control.
• Automated Systems: Ideal for a broad spectrum of industrial automation applications, including food processing, automotive assembly lines, and pharmaceutical manufacturing.
• Printing and Converting: Ensures highly accurate web handling and tension control in printing presses and converting machinery.

Why Choose This Model?

• Seamless Integration: Designed for effortless integration into existing EtherNet/IP networks, minimizing installation complexity and maximizing compatibility.
• Enhanced Performance & Precision: Offers superior motor control and rapid feedback, crucial for applications demanding high levels of accuracy and dynamic response.
• Reduced Downtime: Advanced diagnostic features and a robust design contribute to improved system reliability and significantly reduced operational interruptions.
• Space-Saving Solution: Its integrated design combines multiple functions into a single compact unit, optimizing cabinet space and simplifying wiring.
• Future-Proof Technology: Built with cutting-edge EtherNet/IP communication, ensuring your automation solution remains relevant and efficient for years to come.
• Rockwell Automation Reliability: Backed by the trusted quality and support of Allen-Bradley and Rockwell Automation, guaranteeing long-term operational excellence.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 2198-D012-ERS3 Kinetix 5700 EtherNet/IP Integrated Drive System. Experience the difference in precision, efficiency, and reliability that this advanced drive system brings to your operations. Order yours today to ensure optimal performance and seamless control in your most demanding applications.
