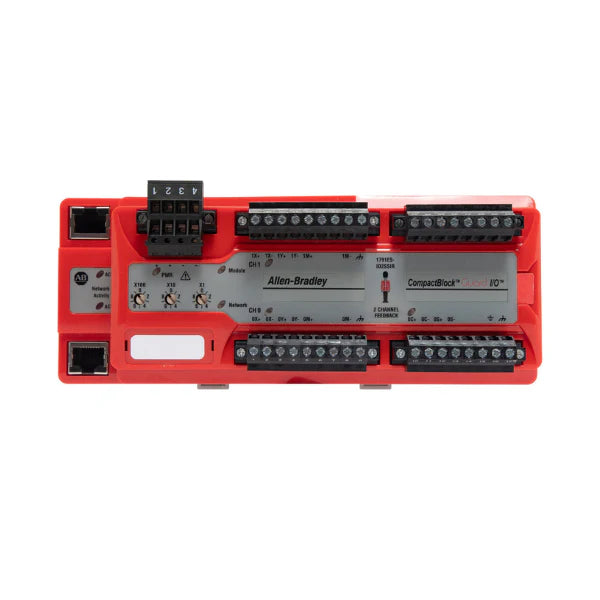

Allen-Bradley 1791DS-IB12 12-Point Digital Input Module for

Overview

The Allen-Bradley 1791DS-IB12 is a high-performance 12-point digital input module meticulously engineered for seamless integration within DeviceNet communication networks. As part of the renowned Allen-Bradley CompactBlock Guard Safety I/O series, this module delivers an exceptionally reliable and efficient solution for acquiring crucial digital input signals from a diverse range of industrial devices. Its primary purpose is to facilitate real-time data transmission, empowering advanced monitoring and precision control capabilities in demanding industrial environments. Built with a focus on durability and performance, the 1791DS-IB12 exemplifies Allen-Bradley's commitment to robust industrial automation solutions, ensuring optimal operational efficiency and data integrity.

Key Features

• 12 Digital Input Points: Provides versatile data acquisition from numerous industrial sensors and devices.
• Seamless DeviceNet Compatibility: Guarantees effortless integration and communication within existing DeviceNet architectures.
• Wide Input Voltage Range (10-30V DC): Offers exceptional flexibility for diverse industrial power supply configurations.
• Space-Saving Compact Design: Optimally designed for easy, efficient installation on DIN rails in control panels.
• Superior 1500V Isolation: Ensures enhanced safety and protection between field-side and logic-side circuits.
• Reliable LED Indicators: Facilitates quick status monitoring and efficient diagnostic troubleshooting.
• Robust Industrial Construction: Built to withstand challenging environmental conditions, ensuring long-term reliability.

Technical Specifications

• Model Number: 1791DS-IB12
• Input Type: Digital (12 points)
• Voltage Range: 10-30V DC
• Input Current: 7-15 mA
• Isolation: 1500V isolation between field-side and logic-side circuits
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimensions (HxWxD): 75 mm x 115 mm x 50 mm
• Weight: 0.35 kg
• Mounting: DIN Rail
• Communication Protocol: DeviceNet
• LED Indicators: For status monitoring and diagnostic purposes
• Certifications: UL, CE, and RoHS compliant
• Power Consumption: 200mA @ 24V DC

Applications

• Industrial Control Systems: Essential for data acquisition and precise process control in automated factories.
• Machine Monitoring: Ideal for collecting critical digital signals from sensors in various machinery for performance analysis.
• Automated Assembly Lines: Perfectly suited for automated systems requiring real-time input data for sequential control.
• Material Handling Systems: Optimizes communication and control within complex material handling operations.
• Energy Management: Used in systems designed to monitor and control energy consumption in industrial settings.
• Building Automation: Integrates into smart building systems for managing various digital inputs.

Why Choose This Model?

• Unmatched Reliability: Allen-Bradley's reputation for quality ensures dependable performance in critical applications.
• Enhanced Safety Features: 1500V isolation provides crucial protection for both equipment and personnel.
• Simplified Integration: Designed for effortless compatibility with existing DeviceNet networks and Allen-Bradley ecosystems.
• Optimized for Harsh Environments: Wide operating temperature range and robust construction guarantee durability.
• Cost-Effective Solution: Offers a high-value proposition with its blend of features, reliability, and ease of use.
• Advanced Diagnostics: Integrated LED indicators streamline troubleshooting, minimizing downtime and maintenance efforts.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1791DS-IB12 12-Point Digital Input Module. Its cutting-edge features, robust design, and seamless DeviceNet compatibility make it an indispensable component for modern control systems. Secure yours today to benefit from superior data acquisition and control, ensuring your operations run with maximum efficiency and reliability. Explore our full range of Allen-Bradley Industrial Automation Products for complementary solutions.
