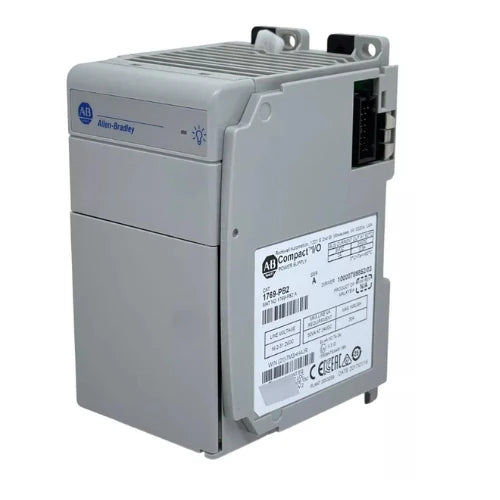

Allen-Bradley 1769-PB2

Overview

The Allen-Bradley 1769-PB2 is a robust and reliable 24V DC power supply module meticulously engineered for seamless integration with the CompactLogix and MicroLogix 1500 programmable logic controller (PLC) platforms. This essential component ensures a stable and regulated power output, crucial for the optimal performance of your controller systems and connected I/O modules. Capable of delivering a dependable 2.0 A at 5V DC and 0.8 A at 24V DC, the 1769-PB2 is designed to meet the rigorous demands of industrial automation environments, providing the necessary operational stability for critical processes. Its advanced design prioritizes efficiency and longevity, making it an indispensable asset in a wide array of control applications. This power supply unit is a cornerstone for building resilient and high-performing automation systems, offering a consistent and secure power foundation for your industrial infrastructure.

Key Features

• Optimized Power Delivery: Supplies 2.0 A at 5V DC and 0.8 A at 24V DC for reliable system operation.
• Broad Compatibility: Specifically designed for Allen-Bradley CompactLogix and MicroLogix 1500 platforms.
• Wide Input Voltage Range: Operates efficiently within a 19.2V to 31.2V DC range, accommodating industrial fluctuations.
• Integrated Protection: Features electronic overload and short-circuit protection for enhanced safety and equipment longevity.
• Diagnostic Indicators: Equipped with status indicators for quick and easy troubleshooting and operational monitoring.
• Flexible Mounting Options: Supports both convenient DIN rail and secure panel mounting for versatile installation.
• Compact & Durable Design: Space-saving form factor built to withstand demanding industrial conditions.

Technical Specifications

• Model: 1769-PB2
• Series: CompactLogix Power Supplies
• Input Voltage Nominal: 24V DC
• Input Voltage Range: 19.2V DC to 31.2V DC
• Output Current @ 5V DC: 2.0 A
• Output Current @ 24V DC: 0.8 A
• Max Inrush Current: 30 A
• Isolation Voltage: 75V (continuous), reinforced insulation
• Operating Temperature: 0°C to +60°C
• Dimensions (W x H x D): 70 mm x 118 mm x 87 mm
• Weight: Approximately 0.4 kg
• Certifications: CE, UL, c-UL-us, Class I Div 2, ATEX

Applications

• CompactLogix Controller Powering: Essential for providing stable power to CompactLogix controllers.
• MicroLogix 1500 System Expansion: Facilitates the reliable expansion of MicroLogix 1500 systems.
• Panel-Based Control Systems: Integrates seamlessly into various industrial control panels for consistent power.
• Manufacturing Automation Lines: Powers critical components in diverse manufacturing automation setups.
• Process Control Environments: Ensures stable operation of automated processes in diverse industries.
• Building Automation and HVAC: Provides dependable power for control systems in smart building applications.

Why Choose This Model?

• Unmatched Reliability: Delivers consistent and regulated power, minimizing downtime and maximizing operational efficiency in critical applications.
• Designed for Industrial Demands: Engineered to meet the stringent requirements of challenging industrial environments, ensuring long-term performance.
• Enhanced System Safety: Integrated electronic protection against overloads and short-circuits safeguards connected equipment and personnel.
• Simplified Diagnostics: Built-in status indicators allow for quick and effortless identification of operational issues, streamlining maintenance.
• Superior Compatibility: Perfectly complements Allen-Bradley CompactLogix and MicroLogix 1500 platforms, ensuring seamless integration and optimal performance.
• Global Compliance: Adheres to multiple international certifications, affirming its quality, safety, and suitability for worldwide deployment.

Order Now

Elevate the reliability and performance of your automation systems with the Allen-Bradley 1769-PB2 CompactLogix Power Supply. This high-performance module is an investment in the stability and efficiency of your industrial operations. With fast shipping and worldwide delivery options, securing this crucial component for your infrastructure is effortless. Don't compromise on power quality for your critical control systems—choose the trusted name in industrial automation. Explore our comprehensive range of CompactLogix Controllers and other Allen-Bradley Industrial Automation Products to find complementary components that will further enhance your system's capabilities. Act now to ensure your operations run smoothly and without interruption.
