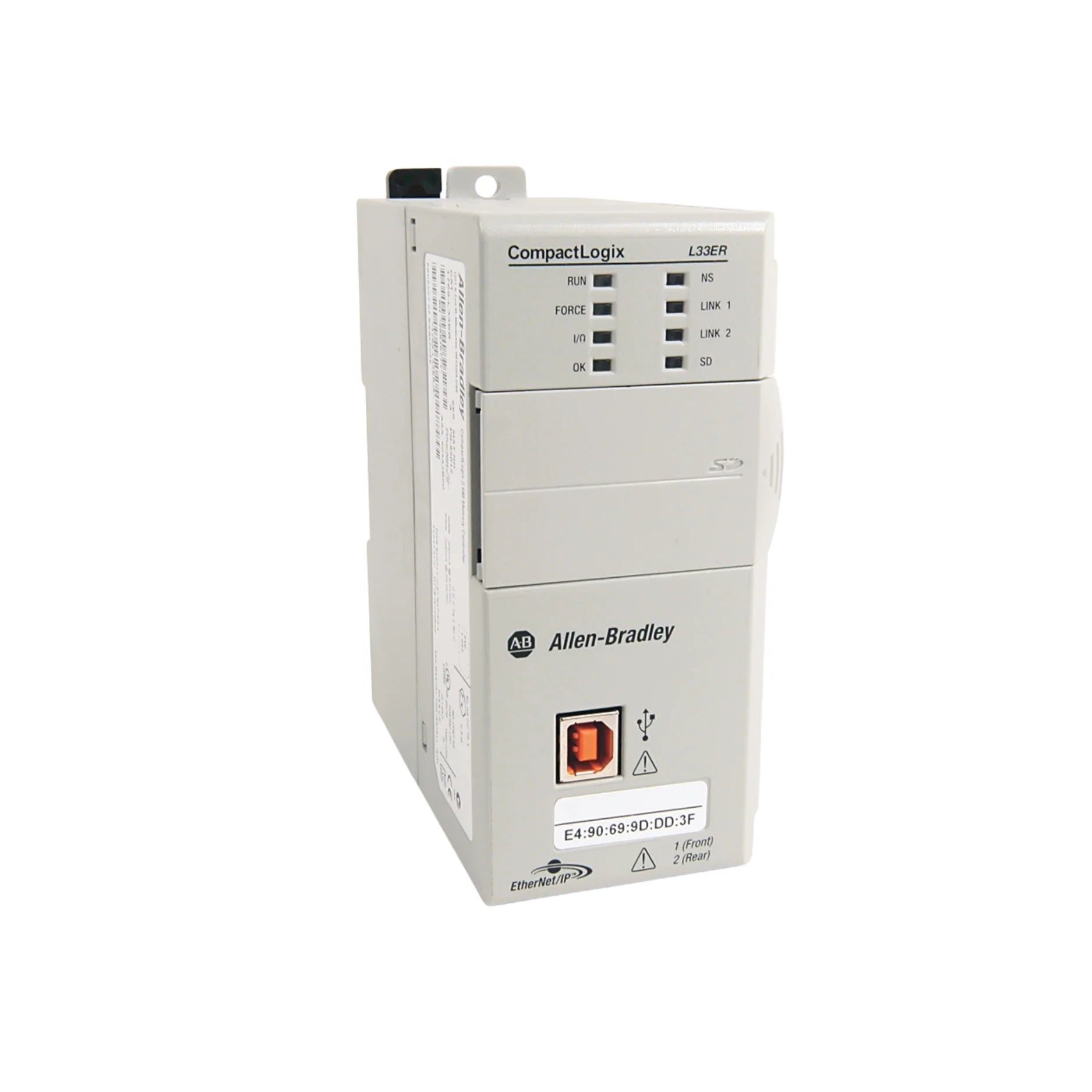

Allen-Bradley 1769-L33ERK

Overview

The Allen-Bradley 1769-L33ERK is a powerful and rugged CompactLogix 5370 L3 programmable automation controller, engineered for demanding industrial applications. This standout model combines a generous 2MB of user memory with dual Ethernet/IP ports featuring Device Level Ring (DLR) capability, ensuring robust communication and network flexibility. What truly sets the 1769-L33ERK apart is its conformal coating, providing superior protection against moisture, dust, and corrosive elements, making it an ideal choice for harsh operating environments. Its integrated SD card support and USB connectivity offer convenient data management and programming options, solidifying its role as a versatile and reliable solution for mid-to-large-sized control systems requiring high performance and durability.

Key Features

• 2MB user memory for complex program execution and data storage.
• Dual EtherNet/IP ports with DLR (Device Level Ring) for resilient network architecture and enhanced communication.
• Conformal coating for exceptional protection against environmental aggressors like humidity, chemicals, and temperature extremes.
• Supports up to 32 EtherNet/IP nodes, facilitating extensive system integration.
• Integrated SD card slot (up to 2GB) for streamlined firmware updates, project backups, and data logging.
• Expandable with up to 16 local Compact I/O (1769 series) modules for flexible system customization.
• Embedded motion control capabilities for up to 4 axes via EtherNet/IP, simplifying integrated automation solutions.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1769-L33ERK
• Controller Type: CompactLogix 5370 L3
• User Memory: 2MB
• Conformal Coating: Yes
• EtherNet/IP Ports: 2 (with Device Level Ring - DLR support)
• USB Port: 1 (Type B for programming and configuration)
• I/O Expansion: Up to 16 local 1769 I/O modules
• EtherNet/IP Nodes: Up to 32
• SD Card Support: Yes (supports cards up to 2GB for storage and backup)
• Motion Control: Integrated support for 4 axes via EtherNet/IP
• Mounting: Versatile DIN rail or panel mount options
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Dimensions (HxWxD): 118 mm x 87 mm x 87 mm (4.65 in x 3.43 in x 3.43 in)
• Weight: Approximately 0.5 kg (1.1 lbs)
• Certifications: CE, cULus, ATEX, IECEx (ensuring global compliance and safety standards)

Applications

• High-reliability machine control in manufacturing and industrial facilities.
• Process automation systems requiring robust EtherNet/IP communication and network redundancy.
• Industrial environments characterized by high humidity, dust, and potential chemical exposure, benefiting from conformal coated electronics.
• OEM systems demanding integrated motion control and efficient data logging capabilities.
• Water and wastewater treatment plants, where environmental protection is crucial for control components.
• Renewable energy systems, including wind turbine and solar farm control, due to its rugged design.

Why Choose This Model?

• Benefit from a larger 2MB memory, providing ample space for sophisticated control programs and expanding application complexity.
• Ensure unparalleled system longevity and reliability in harsh conditions thanks to its robust conformal coating.
• Achieve flexible and scalable automation solutions with extensive I/O and EtherNet/IP expandability options.
• Simplify system maintenance and diagnostics with convenient SD card support for firmware, backups, and data logging.
• Leverage integrated motion control capabilities to streamline automation architectures and reduce overall system complexity.
• Experience seamless integration and programming within the Studio 5000 Logix Designer environment, enhancing development efficiency.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1769-L33ERK CompactLogix 5370 L3 controller. This high-performance, conformal-coated controller is engineered for reliability and designed to excel in challenging environments. With its advanced features, robust connectivity, and expansive memory, it\
