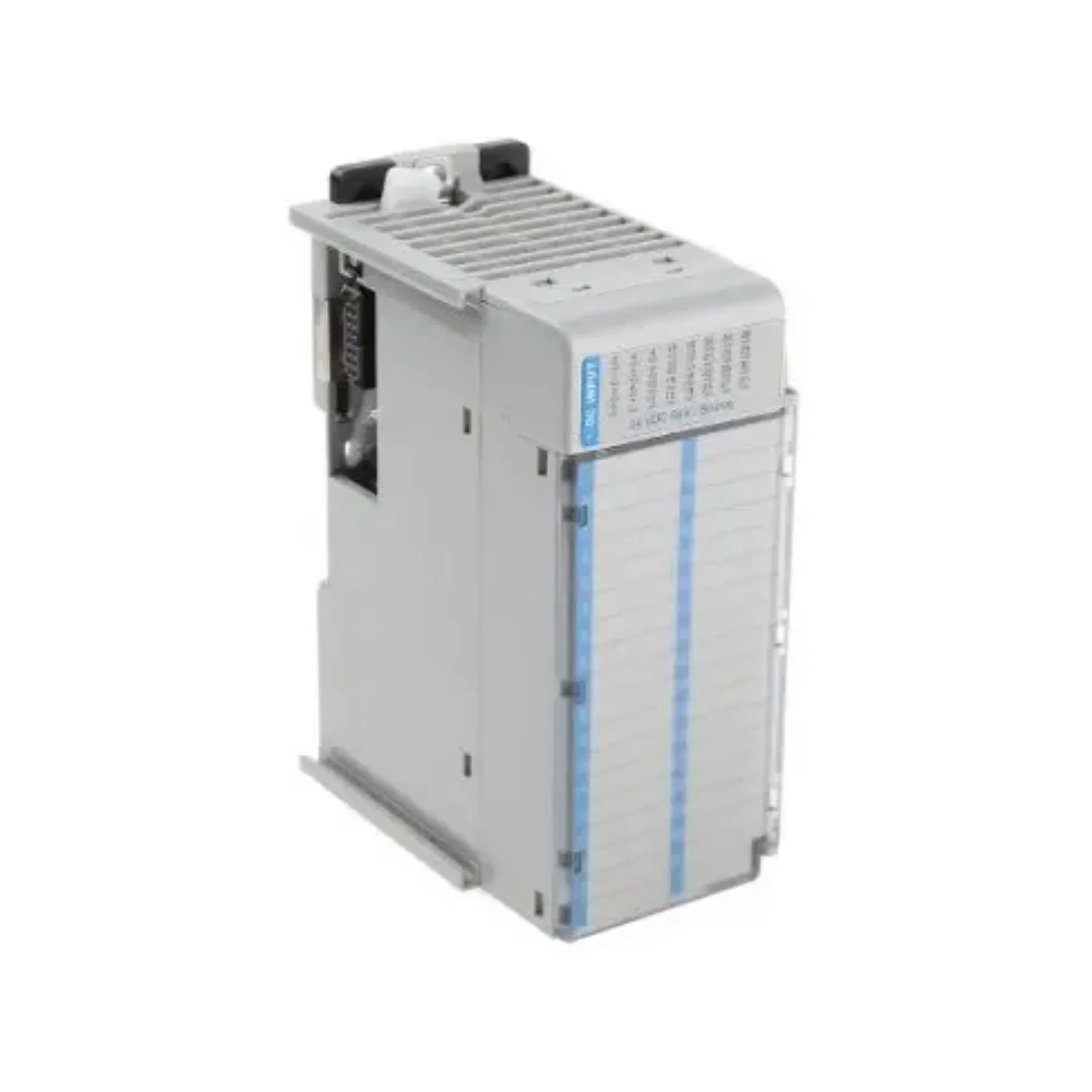

Allen-Bradley 1769-IQ32K

Overview

The Allen-Bradley 1769-IQ32K is a high-density 32-point 24V DC digital input module, a vital component within the Compact I/O family designed to optimize space and performance in industrial automation systems. This robust module is engineered for seamless integration with both CompactLogix and MicroLogix 1500 programmable logic controllers, making it an ideal solution for a multitude of control applications. Its primary purpose is to provide reliable and efficient acquisition of digital input signals in environments where space is at a premium and extreme conditions are a concern. The 1769-IQ32K distinguishes itself with a conformal coating, offering superior protection against humidity, corrosive elements, and environmental contaminants, thereby extending its operational lifespan and ensuring consistent performance in demanding industrial settings. This module represents Allen-Bradley's commitment to delivering high-quality, durable, and versatile automation solutions to meet the evolving needs of modern manufacturing and process control.

Key Features

• High-density 32-point 24VDC digital input, supporting both sourcing and sinking configurations.
• Equipped with a conformal coating for enhanced protection against harsh industrial environments, including humidity and corrosion.
• Seamlessly compatible with CompactLogix and MicroLogix 1500 PLC platforms for flexible system integration.
• Features LED status indicators for each input, providing clear and immediate operational feedback.
• Offers flexible mounting options, including both DIN rail and direct panel mount for versatile installation.
• Designed for compact control systems, optimizing panel space without compromising functionality.
• Robust design backed by Allen-Bradley / Rockwell Automation's reputation for industrial reliability.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1769-IQ32K
• Input Type: Digital (Sinking/Sourcing)
• Number of Inputs: 32
• Voltage Range: 10–30V DC (Nominal 24V DC)
• Input Delay Time: Off to On: 8 ms | On to Off: 8 ms
• Backplane Current (5V): 135 mA
• Backplane Current (24V): 0 mA
• Isolation Voltage: 75V DC working
• Input Current @ 24V DC: 6.4 mA per point
• Commons: 4 (supporting 8 points per common)
• Mounting: DIN rail or panel mount
• Dimensions (HxWxD): 118 mm x 35 mm x 87 mm
• Weight: Approximately 280 g
• Operating Temperature: 0 to 60 °C
• Certifications: UL, CE, CSA

Applications

• Machine automation requiring a high number of digital input signals.
• Industrial control panels with limited physical space demanding high-density I/O.
• Manufacturing and process environments subject to high humidity, dust, or corrosive agents.
• Acquisition of input signals from various field devices such as sensors, limit switches, and push buttons.
• Integration into CompactLogix and MicroLogix 1500 based control systems across diverse industries.
• Applications in demanding sectors such as automotive, food and beverage, and water treatment, benefiting from enhanced environmental protection.

Why Choose This Model?

• Space Efficiency: Maximizes the number of input points in a compact form factor, reducing panel footprint and overall system size.
• Environmental Durability: Conformal coating provides superior protection against moisture, chemicals, and contaminants, ensuring reliable operation in harsh conditions.
• Seamless Integration: Designed for effortless integration with existing CompactLogix and MicroLogix 1500 systems, simplifying upgrades and expansions.
• Reliable Performance: Backed by the trusted quality and engineering excellence of Allen-Bradley and Rockwell Automation, ensuring long-term stability and uptime.
• Enhanced Diagnostics: Individual LED indicators for each input point allow for quick troubleshooting and status verification, minimizing downtime.
• Versatile Mounting: Offers both DIN rail and panel mounting options, providing flexibility to suit different enclosure and installation requirements.

Order Now

Elevate your industrial control systems with the Allen-Bradley 1769-IQ32K digital input module. Its combination of high-density inputs, robust conformal coating, and seamless compatibility with CompactLogix and MicroLogix 1500 platforms makes it an indispensable component for reliable and efficient automation. Don't compromise on performance or protection; choose the 1769-IQ32K for your demanding applications and experience the renowned quality of Rockwell Automation. Optimize your panel space and ensure dependable signal acquisition by adding this essential module to your system today.
