Allen-Bradley 1762-OW16

Overview

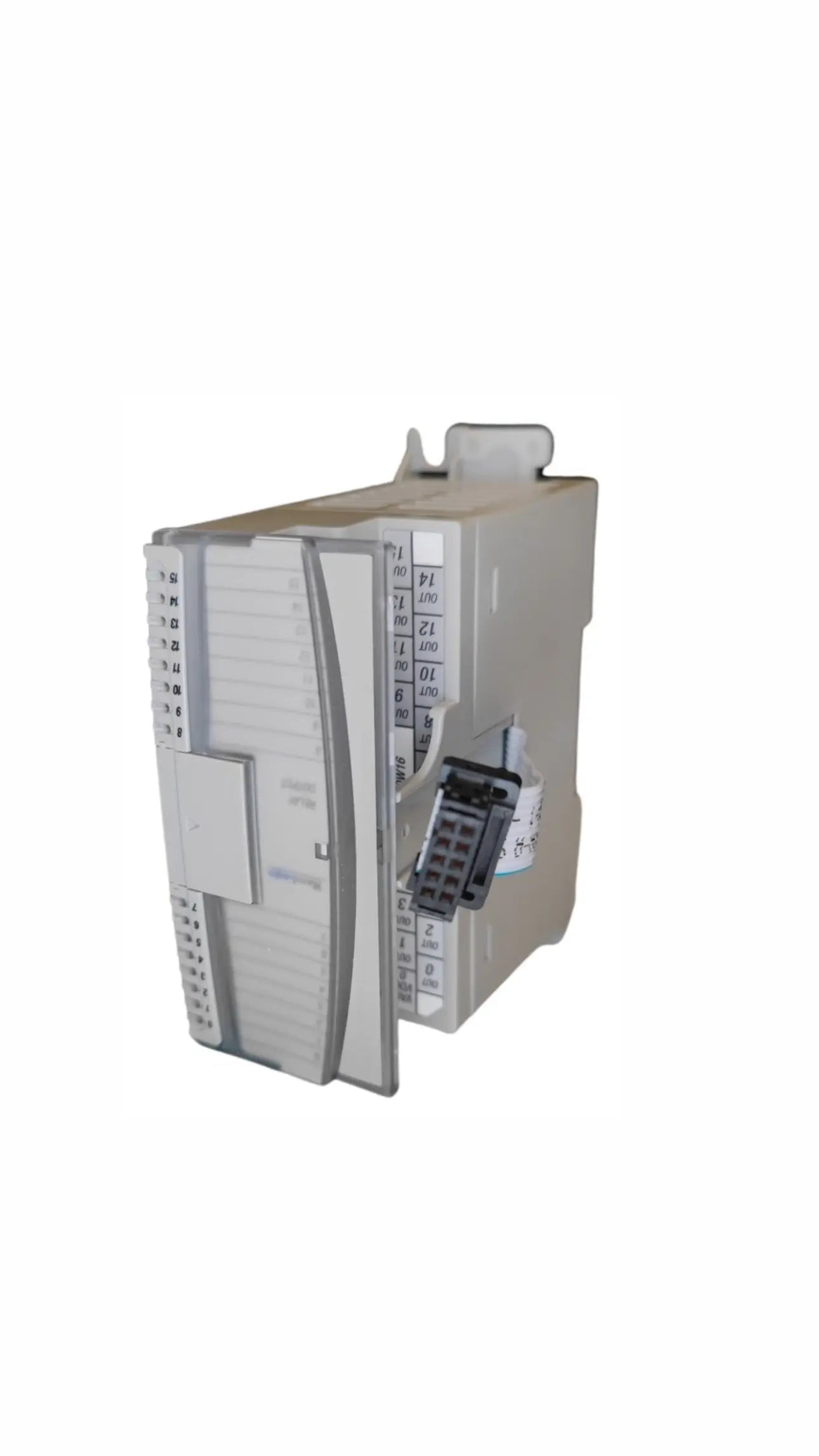

The Allen-Bradley 1762-OW16 is a high-performance 16-point relay output module specifically engineered for seamless integration with the MicroLogix 1200 programmable logic controller (PLC) systems. This versatile module is designed to provide reliable and efficient control over a wide array of industrial devices, offering both AC and DC voltage output capabilities. It stands as an essential component for expanding the output capacity of your MicroLogix 1200, making it an ideal solution for diverse industrial automation and control applications that demand robust and flexible switching.

Built with durability in mind, the 1762-OW16 ensures consistent performance in challenging industrial environments. Its electromechanical relays are capable of handling significant voltage and current variations, contributing to the longevity and stability of your control systems. Whether for process control, machine automation, or intricate industrial monitoring, this output module delivers the precision and reliability expected from Allen-Bradley.

Key Features

• 16 Independent Relay Outputs for flexible device control
• Wide AC (5-265V) and DC (5-125V) Voltage Compatibility
• Robust Electromechanical Relay Switching for high-load applications
• Compact DIN Rail and Panel Mount Design for space-saving installations
• Optical Isolation for enhanced circuit protection and reliability
• Intuitive LED Status Indicators for quick diagnostics
• Seamless Integration with MicroLogix 1200 Controllers

Technical Specifications

• Model: 1762-OW16
• Series: MicroLogix 1200
• Number of Outputs: 16
• Output Type: Relay (Electromechanical)
• AC Voltage Range: 5-265V AC
• DC Voltage Range: 5-125V DC
• Current Rating (AC): 2.5A per point (Max), 8A per module
• Current Rating (DC): 2.5A per point (Max), 8A per module
• Response Time: 10ms (On/Off)
• Isolation Voltage: 1500V AC (Optically isolated)
• Power Consumption: 0.8W
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5-95% non-condensing
• Mounting: DIN Rail or Panel Mount
• Certifications: UL, c-UL, CE
• Dimensions (H x W x D): Approx. 90mm x 40mm x 87mm

Applications

• Industrial Automation Systems for controlling motors, solenoids, and other field devices
• Factory and Machine Control, enabling reliable switching of AC/DC loads
• Expansion of MicroLogix 1200 Systems to add critical relay output capabilities
• Building Automation, ideal for managing lighting, HVAC, and process controls
• Packaging Machinery for precise control of pneumatic and hydraulic components
• Water and Wastewater Treatment Plants for pump and valve control

Why Choose This Model?

• **Unmatched Reliability:** Designed for consistent, high-durability performance in demanding industrial settings, ensuring minimal downtime.
• **Exceptional Versatility:** Supports a wide range of AC and DC voltages, making it adaptable to nearly any industrial application.
• **Seamless System Expansion:** Effortlessly integrates with existing MicroLogix 1200 controllers, significantly expanding your system's output capabilities.
• **Space-Saving Design:** Its compact form factor allows for efficient use of panel space, optimizing your control cabinet layouts.
• **Enhanced Protection:** Features optical isolation to safeguard your logic circuits from output surges and electrical noise, prolonging equipment life.
• **Simplified Troubleshooting:** Equipped with LED status indicators that provide immediate visual feedback, streamlining diagnostics and maintenance.

Order Now

Elevate your industrial control systems with the robust and reliable Allen-Bradley 1762-OW16 output module. Experience enhanced performance, versatility, and ease of integration for your MicroLogix 1200 platform. With fast shipping and worldwide delivery options available, upgrading your automation capabilities has never been easier. Don't miss out on optimizing your operations – secure your 1762-OW16 today and take the next step in industrial efficiency and control!
