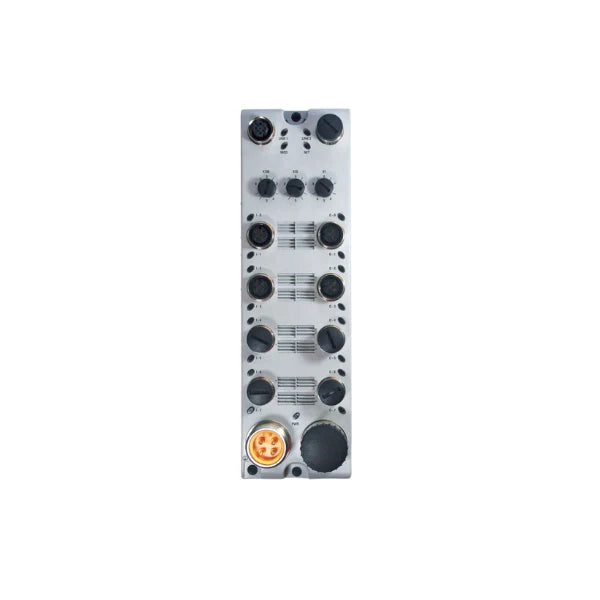

Allen-Bradley 1732E-16CFGM12QCR

Overview

The Allen-Bradley 1732E-16CFGM12QCR is a robust member of the ArmorBlock I/O module series, meticulously engineered for seamless distributed I/O implementation in the most demanding industrial settings. This module excels in its primary purpose of providing reliable data acquisition and control closer to the production process, thereby minimizing wiring, reducing installation time, and enhancing system flexibility. Its rugged design ensures dependable operation even in environments exposed to dust, water, and vibration, making it an ideal solution for a multitude of industrial automation applications. The 1732E-16CFGM12QCR specifically addresses the need for efficient and distributed control, offering a high degree of adaptability and ease of integration into existing or new EtherNet/IP networks.

Key Features

• Rugged ArmorBlock Design: Features a fully sealed, IP67-rated enclosure, providing superior protection against harsh industrial elements such as dust, water jets, and temporary submersion, ensuring maximum operational uptime.
• 16 Self-Configuring I/O Points: Simplifies setup and reduces commissioning time significantly by automatically detecting and configuring connected devices, facilitating quicker deployment and system adjustments.
• EtherNet/IP Communication: Utilizes the prevalent EtherNet/IP industrial protocol, ensuring high-speed data exchange and seamless integration with a wide range of control systems and devices.
• Dual-Port Network Connectivity: Supports both linear and Device Level Ring (DLR) network topologies, offering enhanced network flexibility and redundancy to minimize downtime in case of a network fault.
• M12 Quick Connectors: Equipped with industry-standard M12 quick-disconnect connectors, enabling rapid and secure connection and disconnection of field devices, leading to simplified maintenance and reduced installation efforts.
• Distributed I/O Excellence: Designed for optimal performance in distributed control architectures, allowing I/O to be placed directly on the machine or close to sensors and actuators, thereby minimizing cabling complexity and associated costs.
• Optimized for Harsh Environments: Built to withstand extreme temperatures, shock, and vibration, guaranteeing consistent and reliable performance in challenging industrial conditions where traditional I/O might fail.

Technical Specifications

• Model: 1732E-16CFGM12QCR
• Series: ArmorBlock I/O
• Product Type: Distributed I/O Module
• Communication Protocol: EtherNet/IP
• Number of I/O Points: 16 (specific breakdown of inputs/outputs should be verified from official documentation)
• Network Topology: Linear, Device Level Ring (DLR)
• Connector Type: M12 Quick Connect
• Enclosure Rating: IP67
• Configuration: Self-Configuring
• Mounting: Machine-mountable
• Manufacturer: Allen-Bradley (Rockwell Automation)

Applications

• Automotive Manufacturing: Ideal for machine-mounted I/O on assembly lines, robotics, and welding cells where robust and distributed control is critical.
• Material Handling Systems: Enhances efficiency in conveyor systems, automated storage and retrieval systems (AS/RS), and sortation equipment, offering dependable control in dynamic environments.
• Packaging Machinery: Perfect for high-speed packaging lines, filling machines, and labeling equipment, providing rapid and precise control over various sensors and actuators.
• Food and Beverage Industry: Suitable for washdown applications due to its IP67 rating, making it excellent for processing, bottling, and packaging lines that require regular cleaning.
• General Industrial Automation: Applicable across a broad spectrum of industrial processes requiring resilient, distributed I/O capabilities in challenging operating conditions.
• Machine Tool Applications: Provides reliable connectivity for control of cutting, milling, and grinding machines, offering precision and durability.

Why Choose This Model?

• Unmatched Durability: The ArmorBlock design with an IP67 rating ensures longevity and reliable performance in the harshest industrial settings, significantly reducing maintenance and replacement costs.
• Simplified Installation and Maintenance: Self-configuring I/O points and M12 quick connectors dramatically cut down installation time and streamline maintenance procedures, leading to increased operational efficiency.
• Enhanced Network Resiliency: Dual-port EtherNet/IP with support for DLR topologies provides critical network redundancy, safeguarding against production interruptions due to single-point-of-failure scenarios.
• Optimized for Distributed Control: Enables a leaner control architecture by moving I/O closer to the field devices, minimizing wiring complexity and improving signal integrity.
• Seamless Integration: As an Allen-Bradley product, it offers unparalleled compatibility and integration within Rockwell Automation ecosystems, simplifying system design and programming.
• Cost-Effective Solution: Its ruggedness, ease of use, and network capabilities contribute to a lower total cost of ownership over the product's lifecycle through reduced downtime and maintenance.

Order Now

Elevate your industrial automation system with the Allen-Bradley 1732E-16CFGM12QCR ArmorBlock I/O Module. Experience unparalleled durability, simplified installation, and reliable performance designed for the toughest environments. Add this essential component to your system today and optimize your operational efficiency. Contact DD Parts Solution for fast shipping and expert support.
