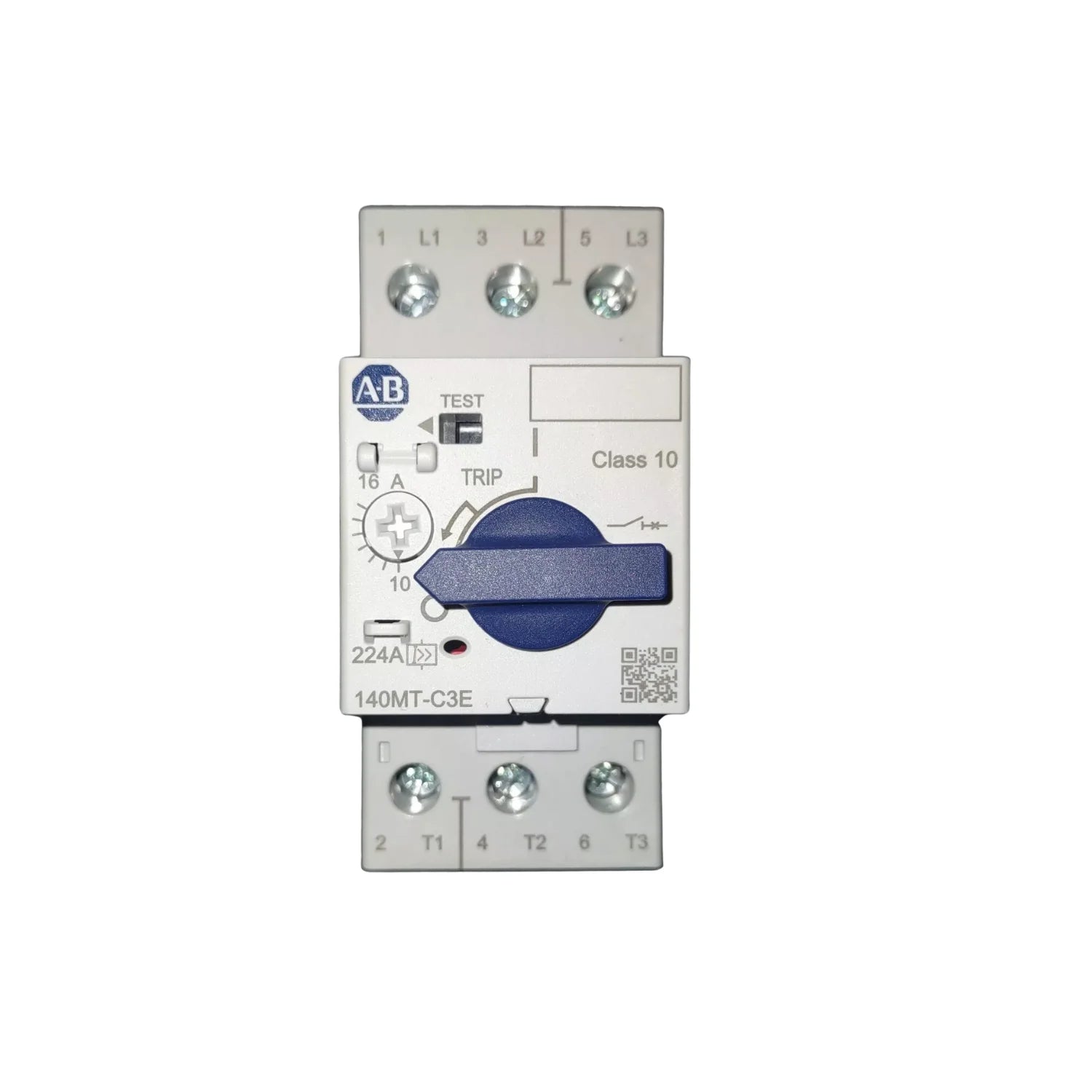

Allen-Bradley 140MT-C3E-C16

Overview

The Allen-Bradley 140MT-C3E-C16 is a high-performance Motor Protection Circuit Breaker (MPCB) engineered to deliver superior safeguarding for industrial motors. As part of Allen-Bradley's renowned line of industrial control components, this MPCB is specifically designed to provide essential protection against overloads, short circuits, and phase unbalance, ensuring the longevity and reliable operation of your critical motor-driven equipment. Its robust construction and precise engineering make it an indispensable component in demanding industrial automation and electrical distribution networks.

Key Features

• Adjustable Thermal Current Range (10-16A): Provides unparalleled flexibility to precisely match the specific current requirements of various motors, optimizing overload protection.
• Fixed Magnetic Trip (14x Ie): Delivers instantaneous and decisive action against severe current spikes and short circuits, preventing catastrophic damage to motors and electrical systems.
• Wide Operating Voltage (480V AC, 60Hz): Ensures seamless integration and compatibility with common industrial power systems, offering versatile application.

• Standard Breaking Capacity: Guarantees safe and dependable interruption of fault currents, enhancing the overall safety of your operational environment.
• Compact Frame Size C: Optimized for space efficiency, allowing for streamlined installation within control panels and electrical enclosures without compromising performance.
• DIN Rail Mountable: Facilitates quick, secure, and hassle-free installation, reducing downtime and simplifying maintenance processes.
• Phase Loss Sensitivity: Offers additional protection by detecting phase loss conditions, safeguarding motors from damaging imbalances.

Technical Specifications

• Model: 140MT-C3E-C16
• Type: Motor Protection Circuit Breaker (MPCB)
• Thermal Current Range: 10-16A (Adjustable)
• Magnetic Trip: Fixed at 14 x Ie (Instantaneous)
• Supply Voltage: 480V AC, 60Hz
• Breaking Capacity: Standard
• Frame Size: C
• Mounting: 35mm DIN Rail Mounting
• Protection: Overload, Short Circuit, Phase Loss
• Approvals: UL, CSA, CE (Check documentation for specific certifications)
• Operational Temperature: -20°C to +60°C (Refer to datasheet for precise range)

Applications

• Motor Control Panels: Essential for protecting individual and groups of motors within industrial control systems.
• Industrial Automation Systems: Integrates seamlessly into automated production lines and robotic cells to ensure continuous operation.
• Manufacturing & Processing Plants: Ideal for heavy-duty applications in environments requiring robust and reliable motor protection.
• Pump and Fan Systems: Provides critical safeguarding for motors driving pumps, fans, and ventilation equipment.
• HVAC Systems: Ensures the safe and efficient operation of heating, ventilation, and air conditioning motor-driven components.
• Electrical Distribution Networks: Functions as a key protective device within larger electrical infrastructures.

Why Choose This Model?

• Unwavering Reliability: Backed by Allen-Bradley's reputation for quality, ensuring consistent and dependable motor protection.
• Enhanced Motor Lifespan: Effectively prevents damage from electrical faults, significantly extending the operational life of your motors.
• Optimized Performance: The adjustable thermal range allows for precise tuning, minimizing nuisance tripping and maximizing uptime.
• Simple & Swift Installation: DIN rail mounting capability makes installation straightforward, saving valuable time and labor costs.
• Comprehensive Safety: Offers multi-faceted protection against overloads, short circuits, and phase loss, safeguarding both equipment and personnel.
• Global Compatibility: Designed to meet industrial standards, making it suitable for a wide range of international applications.

Order Now

Invest in the superior protection and reliability of the Allen-Bradley 140MT-C3E-C16 Motor Protection Circuit Breaker today. Experience peace of mind knowing your valuable industrial motors are safeguarded by a leading-edge solution. Order now for fast shipping and worldwide delivery options to elevate your industrial operations.
