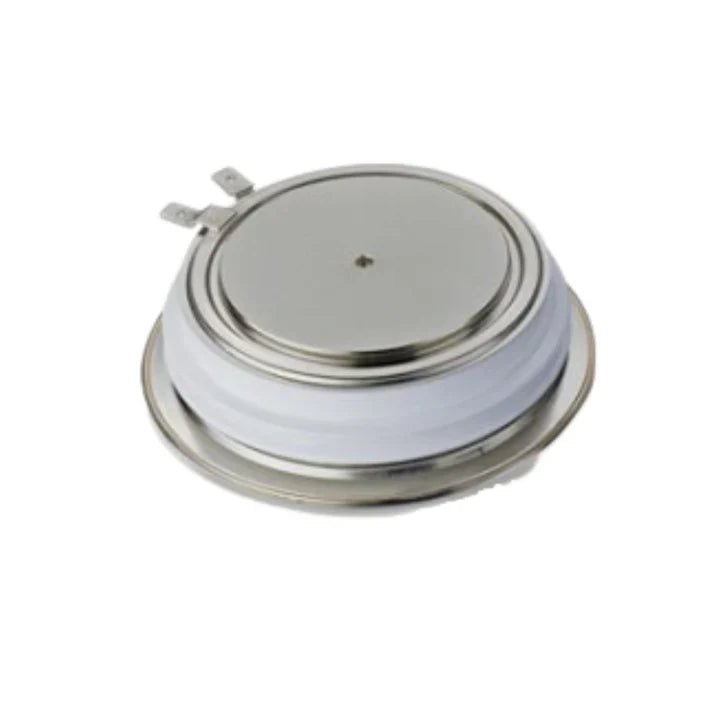

ABB 5SGS16H2500

Overview

The ABB 5SGS16H2500 is a high-performance symmetric thyristor engineered for demanding high-current and high-voltage power control applications. This advanced semiconductor device boasts a robust blocking voltage of 2500V and an impressive RMS current rating of 2500A, making it a cornerstone for efficient and reliable bidirectional current control. Its symmetric design is meticulously crafted to ensure consistent and balanced conduction characteristics across both positive and negative AC cycles, which is critical for maintaining system stability and longevity in dynamic industrial environments. The 5SGS16H2500 is a testament to ABB's legacy of innovation in power electronics, providing unparalleled performance for critical infrastructure, heavy-duty machinery, and advanced power regulation systems worldwide. From precise AC voltage regulation to the rigorous demands of cycloconverters and industrial rectifiers, this thyristor delivers the precision and durability required for twenty-first-century power management.

Key Features

• Exceptional 2500V blocking voltage for high-potential systems
• High 2500A RMS current rating for heavy-load applications
• True symmetric blocking capability ensures balanced AC control
• Superior surge current tolerance for enhanced system protection
• Optimized for critically low switching losses, boosting efficiency
• Constructed with a robust mechanical package for extreme durability
• Guaranteed long service life even under severe industrial stress

Technical Specifications

• Product ID: 5SGS16H2500
• Type: Symmetric Thyristor
• VDRM/VRRM (Repetitive Peak Off-State Voltage): 2500V
• IT(AV) (Average On-State Current): 2500A
• Switching Type: Fast Symmetric
• Surge Capability: High
• Mounting: Press-pack
• Cooling: Adaptable for Air or Liquid cooling solutions
• Housing: Industry-standard Round Package
• Gate Trigger Current (IGT): Optimized for sensitive control
• Operating Junction Temperature: -40°C to +125°C

Applications

• Advanced Cycloconverter systems for motor control
• High-precision AC Voltage Regulators
• Robust Power Supplies for Heavy Industrial Machinery
• Medium-Voltage Drives in manufacturing and processing plants
• High-Power Rectifiers for DC power conversion
• Sophisticated Static Power Controllers and soft starters

Why Choose This Model?

• Ensures exceptional reliability and consistent performance in both current directions, crucial for AC power stability.
• Specifically engineered for superior symmetrical AC power control, offering unparalleled precision in demanding applications.
• Benefits from ABB's globally recognized quality standards and cutting-edge engineering, signifying a trusted and proven solution.
• Exhibits remarkably high thermal endurance and impressive electrical strength, guaranteeing robust operation in extreme conditions.
• Minimizes energy wastage through optimized low switching losses, leading to significant operational cost savings over time.
• Provides a versatile and powerful solution for a broad spectrum of industrial applications, enhancing system flexibility and design.

Order Now

Elevate your power management systems with the ABB 5SGS16H2500 symmetric thyristor. This high-performance component is currently in stock and readily available for worldwide shipment, ensuring quick delivery to meet your project deadlines. Invest in ABB's trusted technology and experience the difference in efficiency, reliability, and long-term performance. Secure your industrial operations with a product designed for the future of power control. Place your order today and step into a new era of power handling capability!
