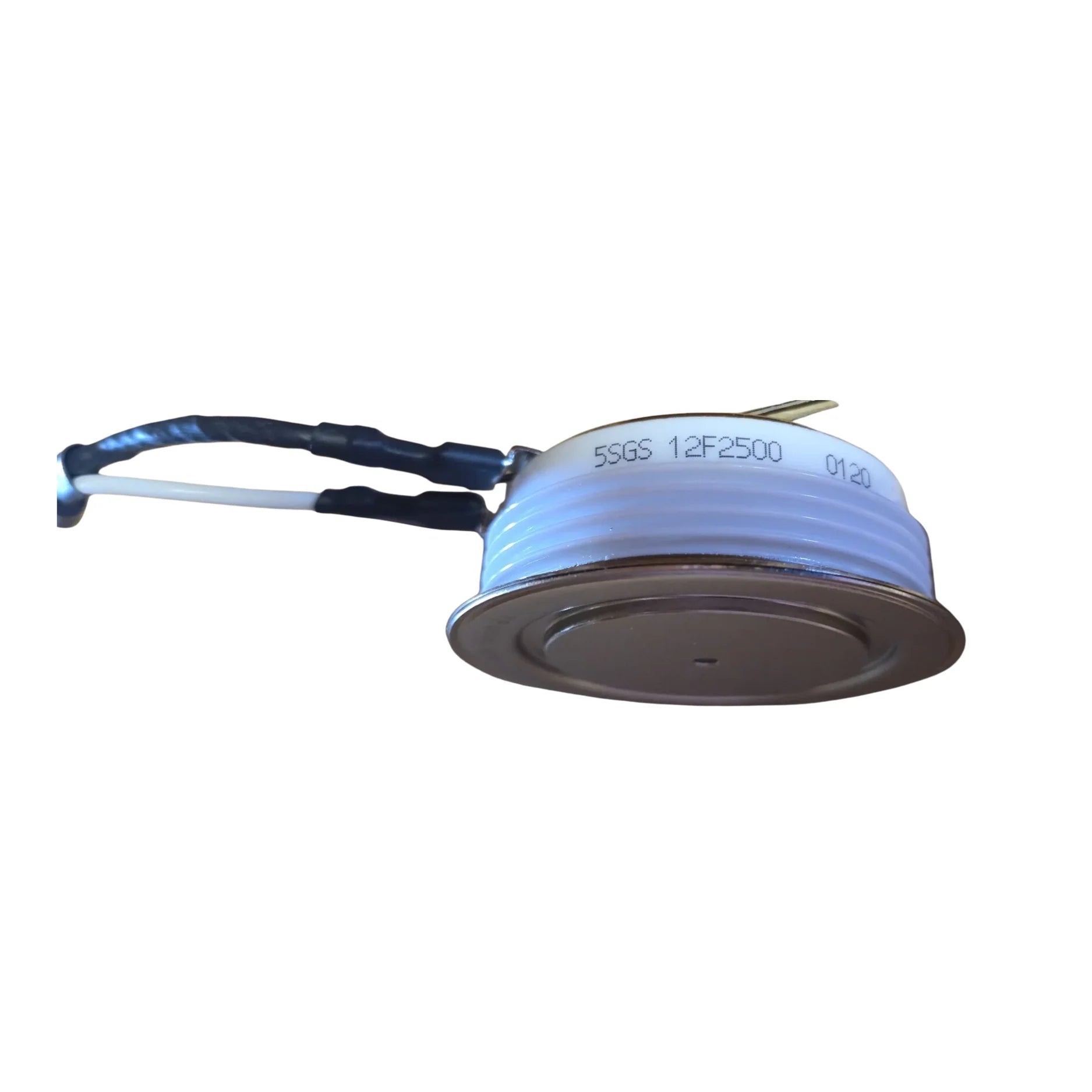

ABB 5SGS12F2500 symmetric thyristor, 2500 A 2500 V, for industrial power control and high-voltage converters

ABB 5SGS12F2500

$685.00
$685.00
Skip to product information
ABB 5SGS12F2500 symmetric thyristor, 2500 A 2500 V, for industrial power control and high-voltage converters
  • ABB 5SGS12F2500 symmetric thyristor, 2500 A 2500 V, for industrial power control and high-voltage converters
  • ABB 5SGS12F2500 symmetric thyristor, 2500 A 2500 V, for industrial power control and high-voltage converters
ABB 5SGS12F2500

ABB 5SGS12F2500

$685.00
$685.00

Overview

The ABB 5SGS12F2500 is a high-performance symmetric thyristor meticulously engineered for the most demanding high-power industrial applications. Part of ABB's renowned GTO thyristor series, this robust device is rated at an impressive 2500 Amperes and 2500 Volts, making it an indispensable component for systems requiring precise and reliable bidirectional current control. Its advanced design ensures consistent and stable operation across various challenging environments, minimizing conduction losses and enhancing thermal management. This leads to a significantly extended service life and unwavering performance, critical for applications such as AC control, advanced cycloconverters, and sophisticated phase-controlled rectifiers. Built upon ABB’s legacy of innovation and quality, the 5SGS12F2500 guarantees unparalleled efficiency and durability in critical power electronics solutions.

Key Features

  • Exceptional 2500V blocking voltage capability for high-voltage systems.
  • High RMS current rating of 2500A for demanding power control.
  • Symmetric blocking design (bi-directional) for versatile AC applications.
  • Enhanced surge current capability ensures reliability under transient conditions.
  • Minimised conduction and switching losses for superior energy efficiency.
  • Rugged, industrial-grade housing for extreme operating environments.
  • Optimized for long-term operational stability and extended product lifespan.

Technical Specifications

  • Model: 5SGS12F2500
  • Product Type: Symmetric Thyristor
  • VDRM/VRRM: 2500 V
  • IT(AV): 2500 A (Average On-State Current)
  • Thyristor Technology: Symmetrical (Bi-directional Blocking)
  • Surge Current Capability: Very High
  • Mounting Options: Versatile Press-pack or Chassis Mount
  • Cooling Method: Adaptable for Air or Liquid Cooling
  • Package Type: Industry-Standard Round Outline
  • Operating Temperature: Wide Industrial Range

Applications

  • Advanced Cycloconverter Systems
  • High-Power AC and DC Motor Drive Controls
  • Efficient Induction Heating Equipment
  • Static VAR Compensators (SVC) for Grid Stability
  • Precision High-Voltage Power Regulation
  • Industrial Power Factor Correction Systems

Why Choose This Model?

  • Unmatched current and voltage handling with reliable symmetric control.
  • Backed by ABB's reputation for delivering industrial-grade power electronics.
  • Engineered for an exceptionally long operational lifespan in high-stress applications.
  • Seamless integration into existing and new high-voltage converter systems.
  • Significantly reduces energy waste through low conduction and switching losses.
  • Provides consistent and predictable performance, minimizing downtime and maintenance.

Order Now

Elevate your power management systems with the ABB 5SGS12F2500 symmetric thyristor. This premium component is currently available for immediate dispatch and global delivery, ensuring your projects stay on schedule. Experience the reliability and performance that only ABB can provide. Secure your high-power control solution today and optimize your industrial operations for peak efficiency and longevity.
