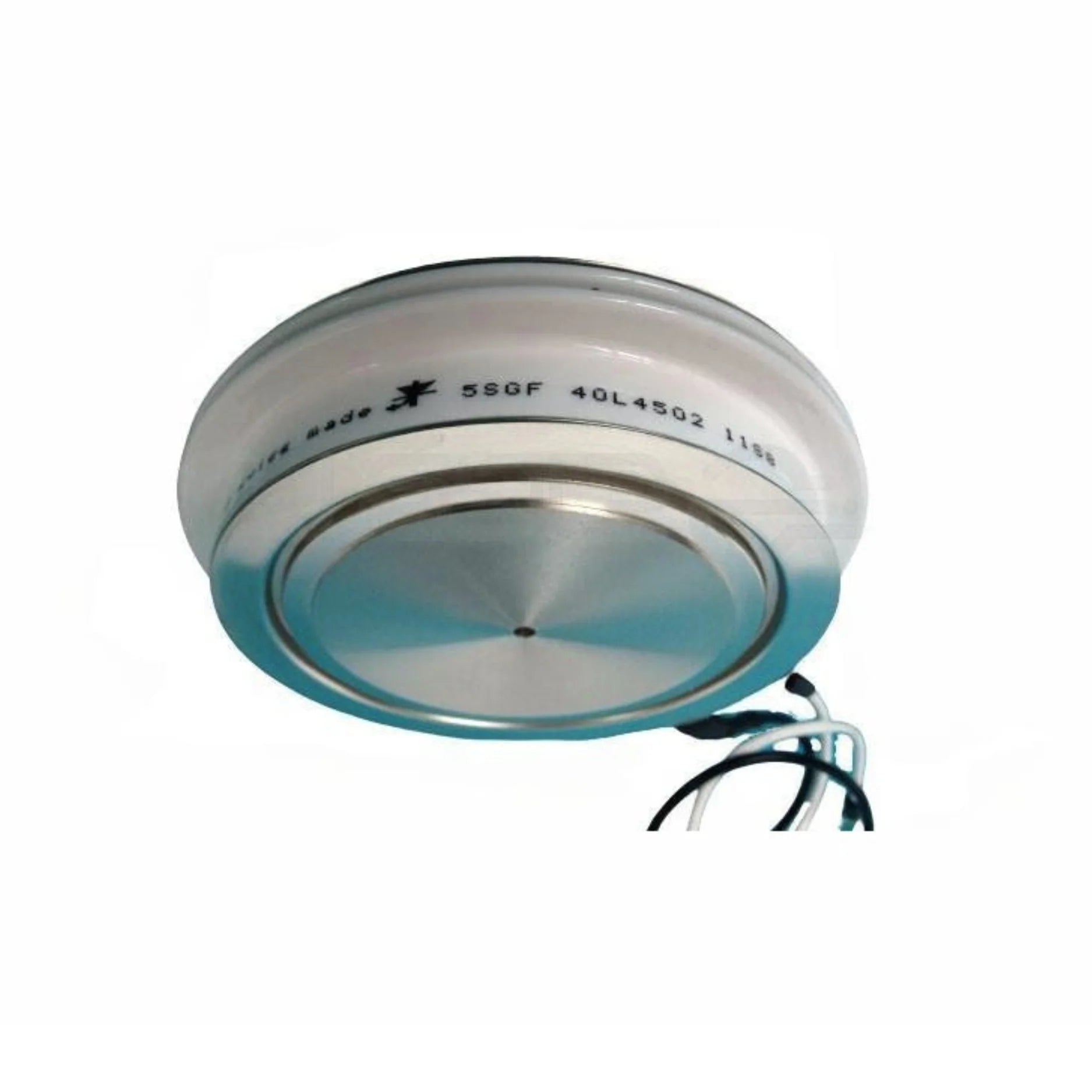

ABB 5SGF40L4502 GTO thyristor, 4000 A 4500 V, annular gate, round housing, low-loss free-floating silicon design

ABB 5SGF40L4502

$1,254.00
$1,254.00
Skip to product information
ABB 5SGF40L4502 GTO thyristor, 4000 A 4500 V, annular gate, round housing, low-loss free-floating silicon design
  • ABB 5SGF40L4502 GTO thyristor, 4000 A 4500 V, annular gate, round housing, low-loss free-floating silicon design
  • ABB 5SGF40L4502 GTO thyristor, 4000 A 4500 V, annular gate, round housing, low-loss free-floating silicon design
ABB 5SGF40L4502

ABB 5SGF40L4502

$1,254.00
$1,254.00

Overview

The ABB 5SGF40L4502 is an exceptional high-performance asymmetric Gate Turn-Off (GTO) thyristor, meticulously engineered by industry leader ABB for the most rigorous high-power electronic applications. This device is a cornerstone of reliable and efficient energy conversion within the high-voltage sphere. Boasting an impressive current rating of 4000 A and an imposing blocking voltage of 4500 V, the 5SGF40L4502 leverages ABB's patented free-floating silicon technology. This advanced design significantly minimizes both switching and conduction losses, thereby enhancing overall system efficiency and reducing operational costs. Its robust construction includes an annular gate electrode and a heavy-duty round package, making it an ideal solution for critical infrastructure in railway traction systems, sophisticated HVDC transmission grids, and diverse high-power industrial installations globally.

Key Features

  • High Rated Current: 4000 A for demanding power applications.
  • Superior Blocking Voltage: 4500 V ensures robust performance in high-voltage circuits.
  • Annular Gate Electrode: Facilitates precise and efficient current control.
  • Free-Floating Silicon Technology: Optimizes thermal management and stability.
  • Ultra-Low Losses: Significantly reduces switching and conduction energy dissipation.
  • Radiation-Resistant Structure: Enhances reliability in harsh operating environments.
  • Industry-Standard Housing: Robust round GTO package for compatibility and durability.
  • High Mounting Force: 40 kN ensures secure and stable installation.

Technical Specifications

  • Model: 5SGF40L4502
  • Type: Asymmetric Gate Turn-Off Thyristor (GTO)
  • Maximum Turn-Off Current (ITGQM): 4000 A
  • Repetitive Peak Off-State Voltage (VDRM): 4500 V
  • Mounting Force: 40 kN
  • Gate Structure: Annular electrode
  • Housing Type: Industry-standard round
  • Silicon Design: Free-floating chip
  • Loss Characteristics: Low on-state and switching losses
  • Radiation Resistance: Yes (optimized for cosmic radiation environments)

Applications

  • Railway Traction Drives: Essential for efficient power conversion in electric locomotives and high-speed trains.
  • HVDC Transmission Systems: Crucial for long-distance, high-capacity power transmission grids.
  • High-Voltage Static Converters: Integral components in industrial power supplies and voltage regulation.
  • Industrial Inverter Systems: Powers heavy machinery and motor control applications.
  • Energy Control and Storage Modules: Supports advanced battery storage and renewable energy integration.
  • Pulsed Power Applications: Provides reliable switching for research and industrial processes.

Why Choose This Model?

  • Unmatched Power Handling: Delivers exceptional current and voltage capacity for mission-critical applications.
  • Optimized Performance: Achieves enhanced thermal and electrical efficiency due to innovative design.
  • Built for Extremes: Engineered to withstand and perform reliably in challenging industrial and power grid environments.
  • Proven ABB Reliability: Backed by ABB's legacy of high-quality, long-lasting industrial components.
  • Seamless Integration: Compatible with existing standard GTO system layouts, simplifying upgrades and maintenance.
  • Cost-Effective Operation: Reduced losses translate to lower energy consumption and operational expenditures over time.

Order Now

Elevate your power management systems with the superior performance and unwavering reliability of the ABB 5SGF40L4502 GTO thyristor. This advanced component is the ideal choice for high-reliability power switching and conversion applications where precision, durability, and efficiency are paramount. Secure your critical infrastructure with cutting-edge ABB technology. Contact us today to place your order and experience global shipping convenience. Invest in the future of powerful and efficient energy control.
