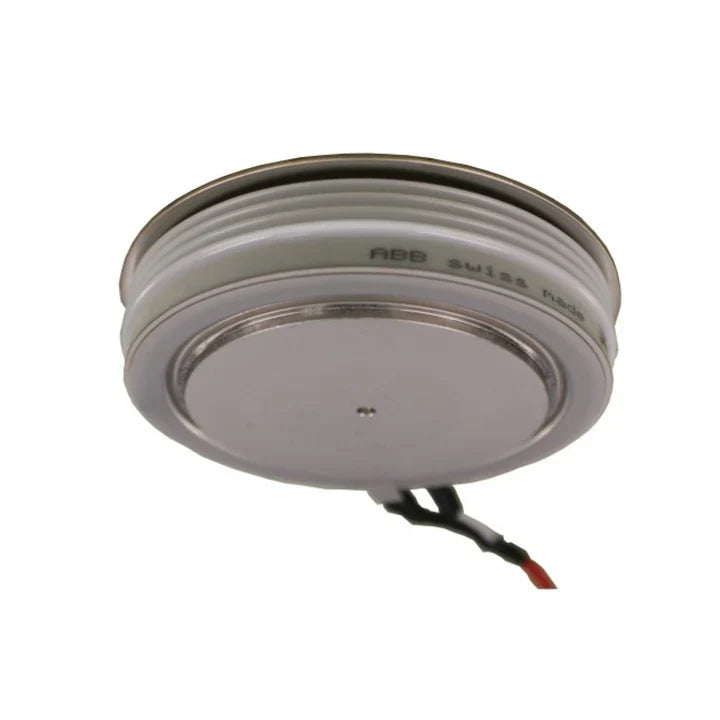

ABB 5SGA40L4501

Overview

The ABB 5SGA40L4501 is a state-of-the-art asymmetric Gate Turn-Off (GTO) thyristor engineered for unparalleled performance in demanding high-voltage power applications. As part of ABB's esteemed GTO series, this component stands out with its robust design and advanced patented free-floating silicon technology. This innovation significantly minimizes both switching and conduction losses, enhancing overall system efficiency and reducing operational costs. Designed to excel in extreme operational environments, the 5SGA40L4501 features a durable 120 mm round housing and necessitates a substantial 40 kN mounting force, ensuring stable and reliable integration into critical infrastructure such as high-voltage power converters, cutting-edge HVDC systems, and sophisticated traction inverters. Its exceptional reliability and performance make it the preferred choice for mission-critical power management.

Key Features

• Exceptional performance with a 4000 A rated current and 4500 V blocking voltage.
• Utilizes ABB's patented free-floating silicon technology for ultra-low switching and on-state losses.
• Features an annular gate electrode, optimizing current distribution for enhanced efficiency and longevity.
• Robust, cosmic radiation-resistant construction ensuring durability in harsh operating conditions.
• High mechanical strength, requiring a 40 kN mounting force for secure and reliable installation.
• Housed in an industry-standard 120 mm round GTO package, simplifying integration.
• Asymmetric Gate Turn-Off (GTO) design tailored for specific power switching needs.

Technical Specifications

• Product ID: 5SGA40L4501
• Type: Asymmetric Gate Turn-Off Thyristor (GTO)
• ITGQM (Rated Current): 4000 A
• VDRM (Blocking Voltage): 4500 V
• Package Diameter: 120 mm
• Package Height: 26 mm
• Gross Weight: 1.5 kg
• Mounting Force: 40 kN
• Gate Structure: Annular
• Housing Type: Industry-standard round
• Design Features: Free-floating silicon, cosmic radiation resistant

Applications

• High-Voltage Direct Current (HVDC) transmission systems.
• Advanced traction and railway inverter systems.
• High-power static power converters and industrial inverters.
• Critical high-voltage motor control systems.
• Comprehensive industrial and energy storage switching solutions.
• Renewable energy grid integration and power distribution networks.

Why Choose This Model?

• It is recognized as one of the highest current-rated GTOs available on the market, offering superior power handling capabilities.
• Built with ABB's renowned engineering expertise, ensuring long-term reliability and consistent performance in the most demanding high-voltage environments.
• Benefits from excellent thermal and electrical efficiency, leading to reduced energy waste and lower operating temperatures.
• Designed to withstand exceptionally harsh operating conditions, guaranteeing a prolonged service life and minimal downtime.
• Leverages trusted ABB technology and construction, providing peace of mind and proven performance.
• Optimized for mission-critical power systems where failure is not an option, making it an indispensable component for secure operations.

Order Now

Elevate your power systems with the unparalleled performance and reliability of the ABB 5SGA40L4501 GTO thyristor. This powerful component is the definitive solution for your ultra-high current and voltage switching requirements in critical applications. Experience global shipping and secure your essential power management solutions today. Invest in ABB's trusted technology for superior performance and lasting durability. Don't compromise on power control – choose the 5SGA40L4501 for excellence.
