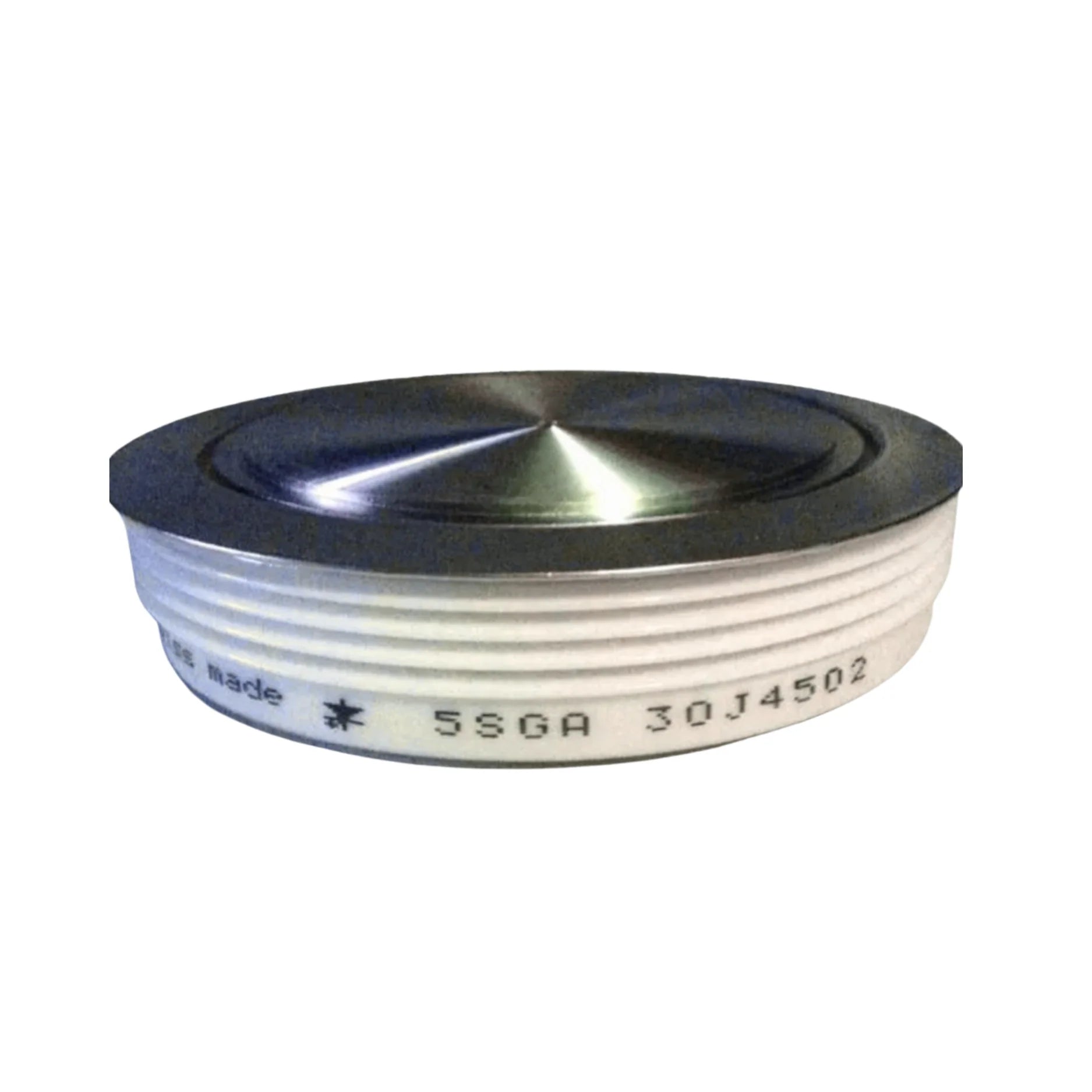

ABB 5SGA30J4502

Overview

The ABB 5SGA30J4502 is a cutting-edge Gate Turn-Off (GTO) thyristor, part of ABB's renowned series of high-power semiconductor devices. Engineered for exceptional performance in demanding environments, this asymmetric GTO thyristor is robustly rated for 3000A and 4500V. It incorporates ABB's patented free-floating silicon technology, a design innovation that ensures superior thermal performance and minimizes switching losses, making it an ideal choice for critical high-voltage applications. Housed in a durable 108mm round, industry-standard package, the 5SGA30J4502 is built to deliver unparalleled reliability and efficiency in systems where power control is paramount. Its advanced design makes it a cornerstone for modern power electronics, ranging from rail transportation to global HVDC networks, ensuring precise and efficient energy management.

Key Features

• High-current 3000A and high-voltage 4500V rating for demanding applications.
• Patented free-floating silicon technology for enhanced thermal management and efficiency.
• Annular gate electrode design, optimizing switching characteristics and performance.
• Robust, radiation-resistant construction suitable for extreme operating conditions.
• Low on-state and switching losses, contributing to significant energy savings.
• Standard 108mm round GTO housing, ensuring broad compatibility and ease of integration.
• High mechanical strength with a 40kN mounting force for secure and reliable installation.

Technical Specifications

• Product ID: 5SGA30J4502
• Type: Asymmetric Gate Turn-Off Thyristor (GTO)
• Rated Turn-Off Current (ITGQM): 3000A
• Repetitive Peak Off-State Voltage (VDRM): 4500V
• Package Diameter: 108mm
• Package Height: 26mm
• Gross Weight: 1.33kg
• Mounting Force: 40kN
• Gate Structure: Annular electrode
• Silicon Technology: Free-floating
• Radiation Rating: Cosmic radiation withstand
• Housing Type: Industry-standard round

Applications

• Rail and traction converters, ensuring efficient power delivery for modern transport systems.
• High-voltage DC (HVDC) transmission systems, facilitating long-distance energy transfer with minimal loss.
• Static power inverters and choppers for precise control in various industrial processes.
• Industrial motor drives, enabling variable speed control and energy optimization in heavy machinery.
• Energy storage and distribution systems, supporting grid stability and renewable energy integration.
• Mission-critical industrial power supplies requiring high reliability and performance.

Why Choose This Model?

• Unmatched current and voltage handling capabilities precisely engineered for demanding power electronics.
• Optimized for superior thermal efficiency and minimal power losses, reducing operational costs and extending lifespan.
• Designed and built to withstand extreme environmental stress, ensuring consistent performance in harsh conditions.
• Backed by ABB's legacy of proven reliability, delivering sustained operation for critical infrastructure.
• Facilitates the design of compact and highly efficient power systems, maximizing space and energy utilization.
• Offers long-term stability and reduced maintenance requirements due to its robust construction and advanced technology.

Order Now

Elevate your power control systems with the ABB 5SGA30J4502 GTO Thyristor. This advanced component is meticulously engineered to address the rigorous demands of high-power switching applications across the industrial, traction, and energy sectors. With its exceptional reliability, superior thermal performance, and robust design, it represents an intelligent investment in the efficiency and longevity of your critical systems. The ABB 5SGA30J4502 is available for global shipping, ready to be integrated into your next-generation power solutions. Secure your high-performance GTO thyristor today and experience the difference of ABB's innovation and quality.
