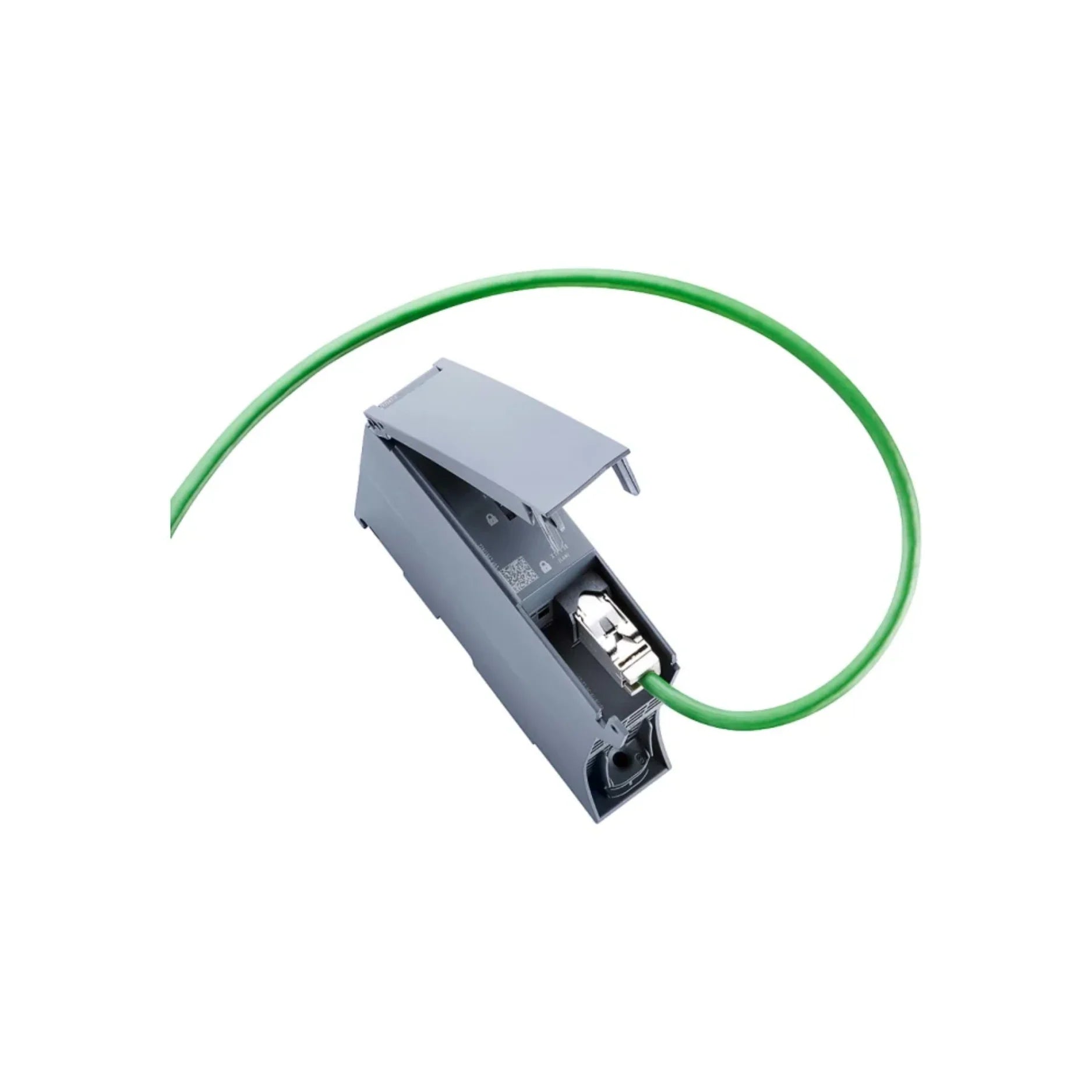

SIEMENS 6GK7543-1AX00-0XE0

Overview

The SIEMENS 6GK7543-1AX00-0XE0 is a robust and essential Communication Processor (CP 1543-1) from the acclaimed SIMATIC NET series. Meticulously engineered for seamless integration with SIMATIC S7-1500 PLCs, this module elevates your industrial automation infrastructure by providing cutting-edge, secure, and highly efficient Industrial Ethernet connectivity. It's designed to meet the rigorous demands of modern industrial environments, ensuring reliable data exchange and robust network security, making it ideal for critical applications.

Key Features

• Secure Industrial Ethernet: Advanced PROFINET and TCP/IP support with integrated security.
• High-Speed Data Transfer: Gigabit Ethernet interface (1x RJ45, 10/100/1000 Mbit/s) for rapid communication.
• Comprehensive Security Suite: Features a built-in firewall, VPN (IPsec), and Access Control Lists (ACLs).
• Remote Management: Integrated web server for convenient monitoring and configuration from any location.
• Enhanced Reliability: Supports network redundancy to minimize downtime and ensure continuous operation.
• Optimized for S7-1500: Specifically designed as a plug-in module for SIMATIC S7-1500 controllers.
• Advanced Diagnostics: SNMP support facilitates detailed network diagnostics and troubleshooting.

Technical Specifications

• Model: SIEMENS 6GK7543-1AX00-0XE0
• Series: SIMATIC NET CP 1543-1
• Compatibility: Exclusively for SIMATIC S7-1500 Controllers
• Ethernet Interface: 1x RJ45 (10/100/1000 Mbit/s)
• Supported Protocols: PROFINET, TCP/IP, ISO-on-TCP (RFC1006), SNMP, FTP, HTTP
• Security Features: Firewall, VPN (IPsec), Access Control Lists (ACLs)
• Power Supply: Via S7-1500 backplane bus (24V DC)
• Data Transmission Rate: Up to 1 Gbit/s
• Current Consumption: Approximately 180 mA
• Protection Rating: IP20
• Operating Temperature: 0°C to +60°C
• Dimensions (W x H x D): 35 mm x 147 mm x 129 mm
• Weight: Approximately 250g
• Certifications: CE, UL, cUL, EAC

Applications

• Industrial Automation Networks: Provides secure and high-speed communication for PLCs and other automation devices.
• Remote Access and Control: Enables secure remote access to industrial systems via VPN for monitoring and maintenance.
• Data Acquisition Systems: Ideal for reliable and high-speed data logging and transmission in critical applications.
• Smart Manufacturing & Industry 4.0: Facilitates seamless integration and communication within modern industrial ecosystems.
• Building Management Systems: Enhances connectivity and security for complex building automation infrastructures.
• Energy Management Systems: Supports secure data exchange and monitoring in power generation and distribution.

Why Choose This Model?

• Unmatched Security: Protect your industrial network from cyber threats with integrated firewall, VPN, and ACLs, ensuring data integrity and operational continuity.
• Superior Performance: Benefit from Gigabit Ethernet speeds and optimized data exchange, crucial for high-demand industrial applications.
• Effortless Integration: Designed for perfect compatibility with SIMATIC S7-1500 controllers, simplifying installation and configuration.
• Remote Accessibility: The integrated web server allows for convenient remote monitoring and configuration, boosting efficiency and reducing on-site visits.
• Robust Reliability: With support for network redundancy and a sturdy IP20 protection rating, this module is built for continuous, reliable operation in demanding environments.
• Future-Proof Your Operations: Equip your facility with a communication processor ready for the challenges and opportunities of Industry 4.0 and advanced industrial networking.

Order Now

Elevate the security, speed, and reliability of your industrial communication infrastructure with the SIEMENS 6GK7543-1AX00-0XE0. This SIMATIC NET CP 1543-1 communication processor is an indispensable asset for any SIMATIC S7-1500 system, ensuring seamless and secure operations. Invest in the cornerstone of modern industrial communication today to optimize performance and safeguard your network.
