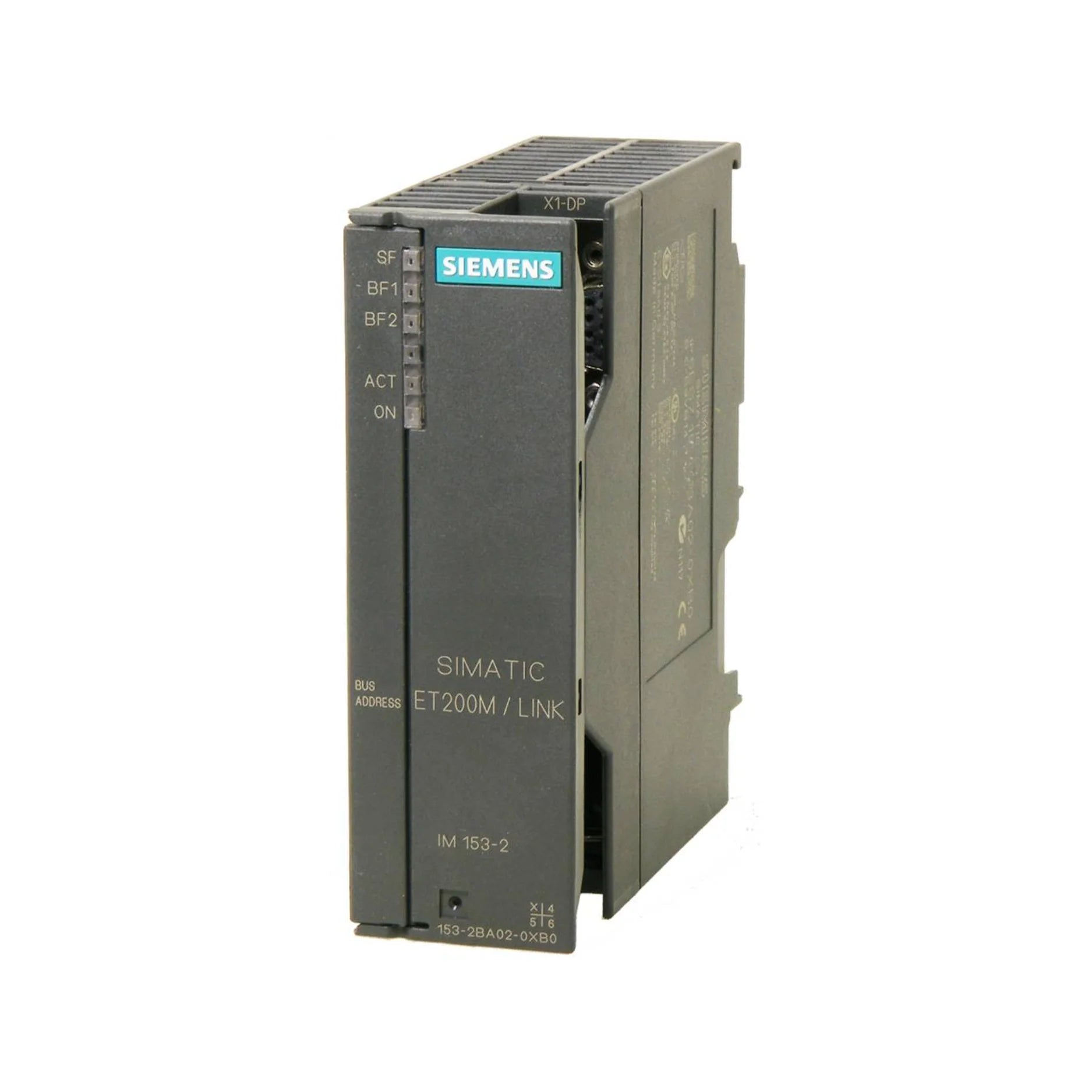

Siemens 6ES7153-2BA02-0XB0

Overview

The Siemens 6ES7153-2BA02-0XB0 is a robust and high-performing SIMATIC DP, ET 200M Interface Module IM 153-2 High Feature, engineered to seamlessly integrate up to 12 S7-300 modules into a PROFIBUS DP network. This essential component from the renowned Siemens industrial automation lineup is designed for applications demanding exceptional reliability, precision, and scalability. With its advanced functionalities like redundancy support and accurate timestamping, the 6ES7153-2BA02-0XB0 ensures continuous operation and precise data capture, making it a cornerstone for sophisticated industrial control systems.

Key Features

• Expansive Module Support: Connects up to 12 S7-300 modules, offering significant flexibility for system expansion and complex configurations.
• Redundancy Capability: Enhances system availability and minimizes downtime in mission-critical applications through robust redundancy options.
• Precision Timestamping: Provides accurate timestamping, ideal for isochronous mode operations and detailed event logging.
• Advanced Data Handling: Supports comprehensive data processing for HART auxiliary variables and compatibility with 64-channel modules having 32 signals per slot.
• Seamless Integration: Facilitates easy integration with Siemens Drive ES and Switch ES systems for superior interoperability.
• PROFIBUS DP Connectivity: Features PROFIBUS DP with automatic baud rate detection up to 12 Mbit/s, ensuring reliable and high-speed communication.
• Durable Design: Built to withstand demanding industrial environments with an IP20 protection class and a broad operating temperature range.

Technical Specifications

• Model: 6ES7153-2BA02-0XB0
• Product Type: ET 200M Interface Module IM 153-2 High Feature
• Series: SIMATIC DP, ET 200M
• Power Supply: Rated at 24 V DC (operating range: 20.4 V to 28.8 V)
• Current Consumption: Maximum 600 mA
• Output Voltage (Backplane Bus): 5 V DC
• Output Current (Backplane Bus): Up to 1.5 A
• Power Loss: Approximately 5.5 W
• Addressing Volume: 244 bytes for inputs, 244 bytes for outputs
• Interfaces: PROFIBUS DP (automatic baud rate detection up to 12 Mbit/s)
• Dimensions (W x H x D): 40 mm x 125 mm x 117 mm
• Weight: Approximately 360 g
• Operating Temperature: 0°C to +60°C
• Protection Class: IP20
• Mounting: DIN rail mounting

Applications

• Industrial Automation Systems: Optimal for integrating multiple S7-300 modules in complex and critical automation setups.
• Process Control Environments: Ideal for industries such as chemical, pharmaceutical, and food and beverage, requiring high availability and precise process synchronization.
• Manufacturing and Production Lines: Enhances flexibility and scalability in diverse manufacturing operations by supporting a wide array of I/O modules.
• Energy Management: Facilitates reliable data communication and control in energy distribution and monitoring systems.
• Transportation Systems: Suitable for control and monitoring applications within railway or other public transport infrastructure.

Why Choose This Model?

• Proven Siemens Reliability: Benefit from the renowned quality and engineering excellence of Siemens industrial products.
• High System Availability: Redundancy capabilities ensure continuous operation, minimizing costly downtime in critical applications.
• Precision and Accuracy: Timestamping functionality guarantees precise event recording and synchronization for demanding processes.
• Flexible Expansion: Support for up to 12 S7-300 modules allows for extensive customization and future-proofing of your automation system.
• Seamless Integration: Designed for easy integration with existing Siemens infrastructure, simplifying setup and configuration.
• Robust Performance: Engineered for demanding industrial environments, ensuring consistent performance and longevity.

Order Now

Elevate your industrial automation capabilities with the Siemens 6ES7153-2BA02-0XB0 ET 200M Interface Module. Offering unparalleled reliability, advanced features, and seamless integration, this module is an indispensable asset for optimizing your control systems. While this specific model is discontinued, it remains a highly demanded component for maintenance and legacy system support. Secure your Siemens 6ES7153-2BA02-0XB0 today to ensure the continued high performance and stability of your critical operations.
