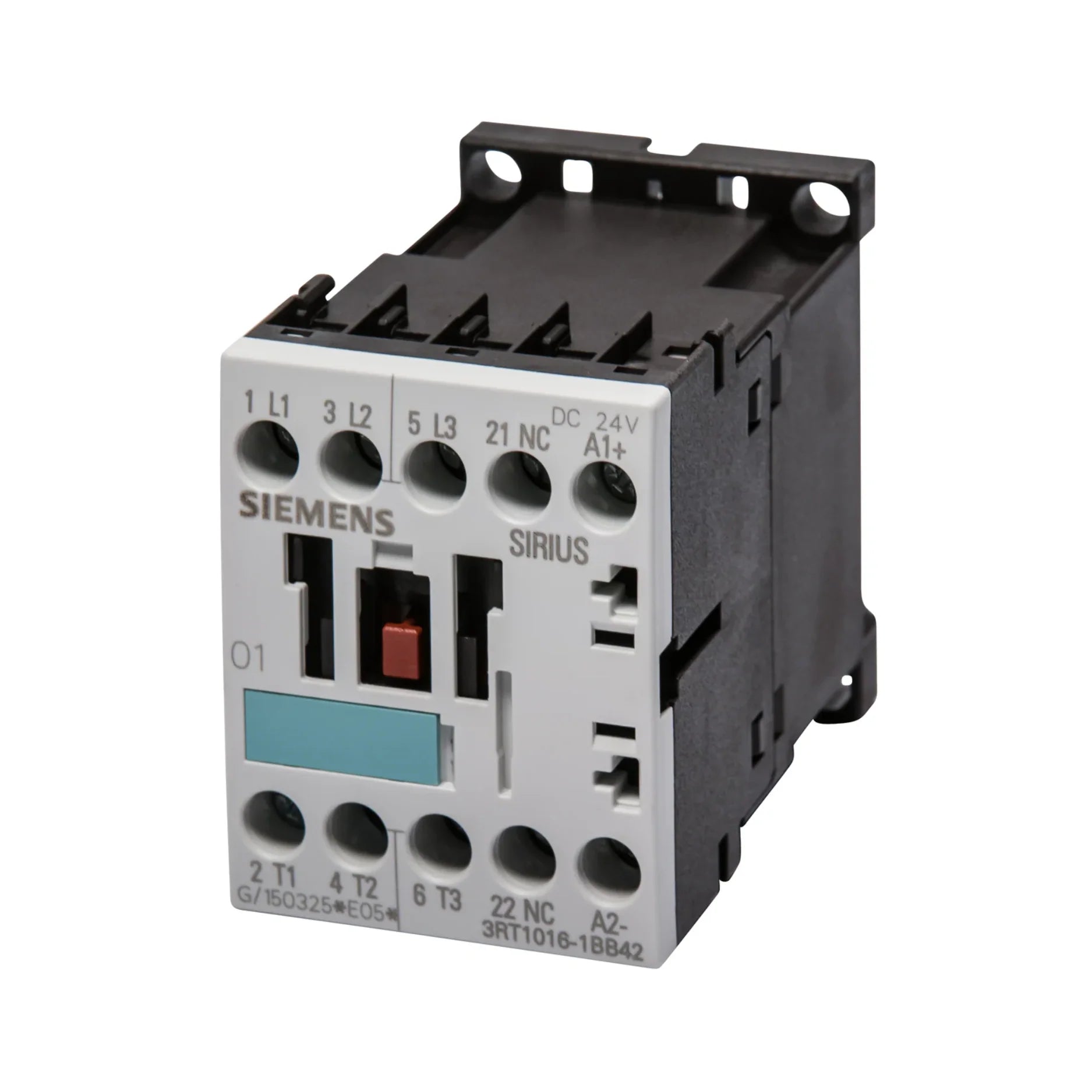

Siemens 3RT1016-1BB42

Overview

The Siemens 3RT1016-1BB42 is a cornerstone of the renowned SIRIUS line, meticulously engineered for precise and robust motor control within demanding industrial environments. This high-performance contactor serves as a critical component for switching and managing electric motors and various industrial loads with exceptional reliability. Boasting a 9A rated current and a 24V DC coil, it ensures unwavering operational stability and control, making it an indispensable asset for modern automation systems. Whether integrated into complex machinery or essential control panels, the 3RT1016-1BB42 delivers consistent, long-lasting performance.

Key Features

• Optimized for 9A Rated Current: Perfectly suited for efficiently switching a wide array of inductive and resistive industrial loads, including various motor types.
• Reliable 24V DC Coil Voltage: Guarantees stable and consistent operation within automation and control circuits, minimizing downtime and optimizing efficiency.
• Robust AC-3 Load Handling: Capable of smoothly managing motors up to 4 kW at 400V AC, providing versatile application across different power requirements.
• Compact & Modular Design: Facilitates effortless integration into control panels and motor starters, optimizing space and simplifying installation procedures.
• Exceptional Switching Reliability: Engineered for a long service life, ensuring dependable switching cycles even under continuous operational stress.
• Durable Construction: Built with high-quality materials to withstand harsh industrial conditions, ensuring extended product longevity.
• Global Compliance: Meets stringent international industrial automation standards, providing peace of mind and universal applicability.

Technical Specifications

• Product Type: SIRIUS Contactor
• Part Number: 3RT1016-1BB42
• Rated Current: 9A
• Coil Voltage: 24V DC
• AC-3 Load Capacity: Up to 4 kW at 400V AC
• Auxiliary Contacts: 1 NO + 1 NC (Normally Open + Normally Closed)
• Mounting Type: Standard DIN Rail Mounting
• Operating Temperature: -25°C to +60°C
• Electrical Life: Up to 10 million switching operations
• Standards Compliance: IEC 60947, UL, CSA, CCC
• Protection Class: IP20

Applications

• Industrial Motor Control: Ideal for starting, stopping, and reversing electric motors in manufacturing, processing, and assembly lines.
• Automation Systems: Integrates seamlessly into programmable logic controller (PLC) based systems and distributed control systems (DCS) for comprehensive automation.
• Power Distribution and Switching: Essential for safe and efficient power switching in control panels, distribution boards, and machinery.
• HVAC and پumping Systems: Provides reliable control for ventilation, heating, air conditioning, and fluid transfer applications.
• Machine Building: A core component in the control circuits of various industrial machines, ensuring precise and safe operation.
• Conveyor Systems: Used for managing the motors that drive conveyor belts in logistics, warehousing, and production facilities.

Why Choose This Model?

• Unmatched Siemens Quality: Benefit from Siemens
