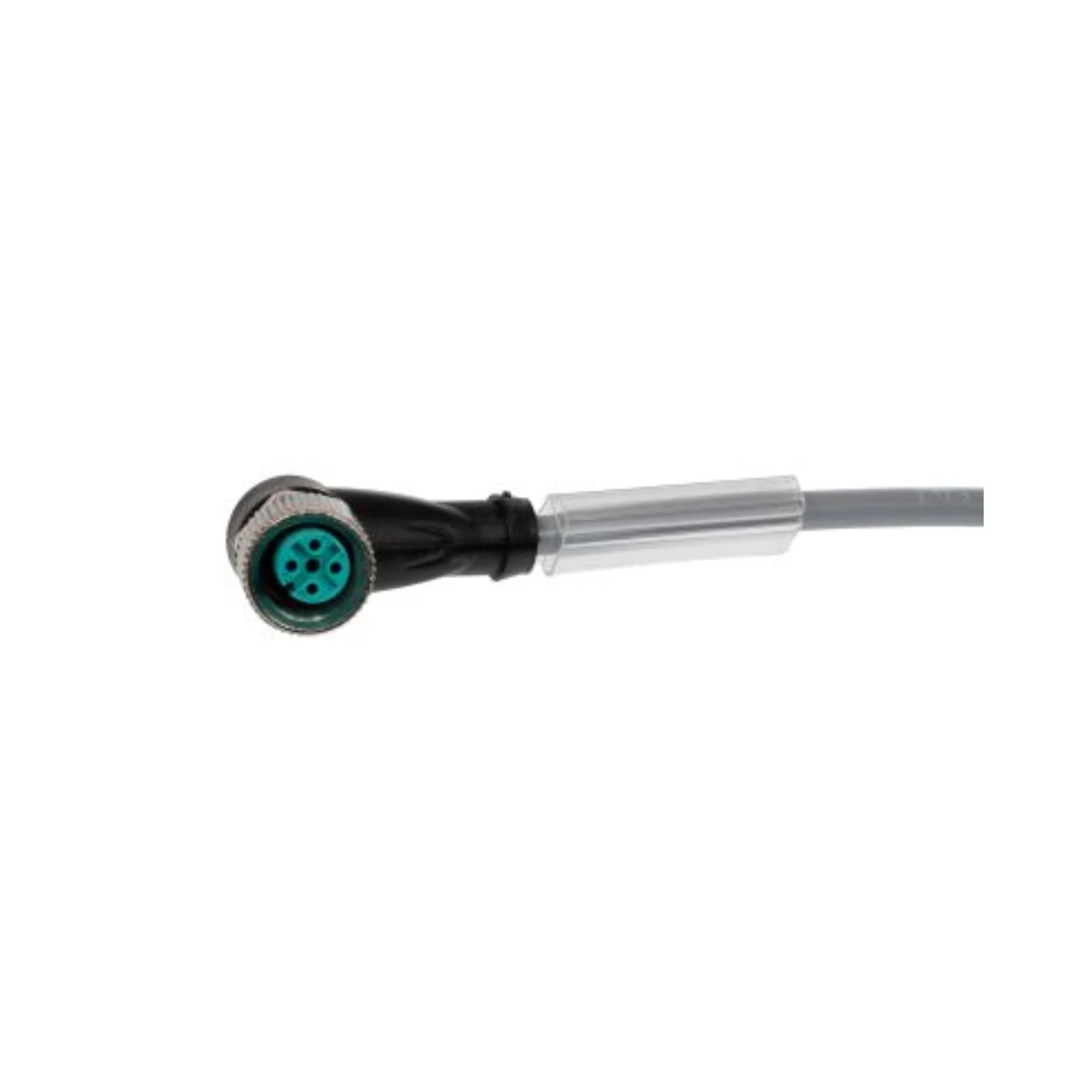

Pepperl+Fuchs V1-W-2M-PVC

Overview

The Pepperl+Fuchs V1-W-2M-PVC is a robust, pre-wired M12 angled female connector meticulously engineered for paramount reliability in demanding industrial automation environments. This specific model, part number 032797, is a cornerstone component within Pepperl+Fuchs' extensive range of connectivity solutions, celebrated globally for their durability and performance. Designed with a 90° angled configuration, it addresses the critical need for efficient cable management and stress reduction in compact installations or where space is a premium. The integrated 2-meter PVC cable provides immediate plug-and-play capability, significantly streamlining installation processes and reducing potential wiring errors, thereby contributing to increased operational efficiency and minimized downtime. This connector is an ideal choice for establishing secure and stable connections between sensors and actuators, vital for the seamless operation of modern machinery and production lines.

Key Features

• Angled M12 Female Connector (90°): Optimizes cable routing and reduces strain in confined or restricted mounting spaces.
• 4-Pin Configuration: Ensures broad compatibility with a vast array of standard industrial sensors and actuators, offering versatile application.
• 2-Meter PVC Cable (Pre-wired): Provides a durable, flexible, and oil-resistant connection, significantly reducing installation time and complexity.
• IP67 Protection Rating: Guarantees superior resistance against dust ingress and temporary immersion in water, ensuring reliable operation in harsh industrial conditions.
• High Electrical Performance: Rated for 250 V AC/DC and up to 4 A, suitable for a wide range of industrial power and signal requirements.
• Robust Industrial Grade Construction: Built to withstand vibrations, mechanical stress, and temperature fluctuations inherent in dynamic industrial settings.
• Trusted Pepperl+Fuchs Quality: Benefits from the brand's reputation for producing high-quality, long-lasting industrial components.

Technical Specifications

• Model: V1-W-2M-PVC
• Part Number: 032797
• Connector Type: M12 female, angled (90°)
• Pin Count: 4-pin
• Cable Length: 2 meters
• Cable Type: PVC jacketed, industrial grade
• Rated Voltage: 250 V AC/DC
• Rated Current: Up to 4 A
• Wire Gauge: 0.34 mm²
• Protection Rating: IP67
• Operating Temperature: -25°C to +90°C
• Material (Contact Carrier): TPU (Thermoplastic Polyurethane)
• Material (Contact): CuSn (Copper-Tin alloy)
• Mating Cycles: Min. 100
• Pollution Degree: 3

Applications

• Industrial Sensor and Actuator Connectivity: Essential for establishing reliable connections in diverse automation setups.
• Compact Automation Systems: Perfectly suited for machinery and equipment with limited internal space requiring efficient cable management.
• Robotics and Packaging Equipment: Provides secure and uninterrupted data and power transmission in high-speed and repetitive motion applications.
• Conveying and Material Handling Systems: Ensures robust connections in environments subject to continuous movement and potential harshness.
• Outdoor and Washdown Environments: The IP67 rating makes it ideal for use in areas exposed to moisture, dust, or industrial cleaning processes.
• Process Automation in Manufacturing Plants: Facilitates dependable communication between various components within a continuous production flow.

Why Choose This Model?

• Enhanced Reliability: Pepperl+Fuchs' commitment to quality ensures a product that performs consistently in even the most challenging industrial conditions, minimizing unexpected failures.
• Space-Saving Design: The 90° angled connector is specifically engineered to fit into tight spaces, preventing cable bending and damage, thereby extending cable lifespan.
• Rapid Installation: The pre-wired 2-meter PVC cable significantly reduces installation time and labor costs, offering a true plug-and-play solution right out of the box.
• Superior Environmental Protection: With an IP67 rating, this connector offers robust protection against dust and water ingress, making it suitable for a wide array of demanding industrial settings.
• Optimized Performance: Designed for excellent electrical conductivity and signal integrity, ensuring optimal performance of connected sensors and actuators.
• Global Availability and Support: Benefit from Pepperl+Fuchs' worldwide network for product availability, technical support, and comprehensive service.

Order Now

Elevate the reliability and efficiency of your industrial automation systems. The Pepperl+Fuchs V1-W-2M-PVC M12 angled female connector is a critical component for seamless operations, offering unparalleled performance and durability. Order yours today to experience the difference that premium industrial connectivity solutions can make in your applications. Available for global delivery, ensuring your projects stay on schedule, wherever you are.
