Pepperl+Fuchs NEN10-12GM50-E2-V1

Overview

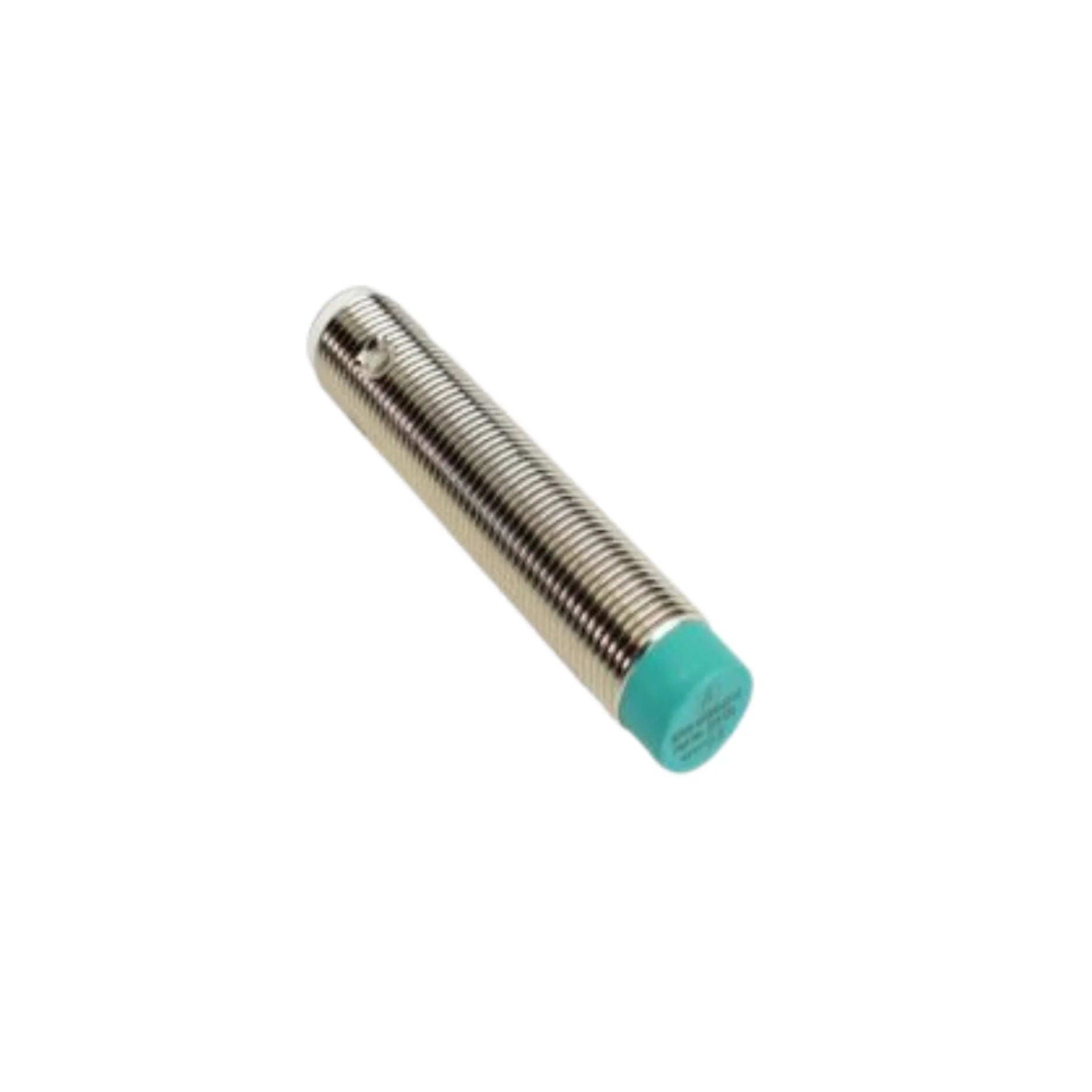

The Pepperl+Fuchs NEN10-12GM50-E2-V1 is an exceptionally reliable and high-performance M12 inductive proximity sensor from Pepperl+Fuchs' esteemed Standard Series. Engineered for precision in demanding industrial automation environments, this sensor excels at accurately detecting metallic objects. Its robust design, featuring a durable nickel-plated brass M12 threaded housing and a generous 10mm extended sensing distance, ensures consistent and dependable operation. Ideal for applications requiring non-flush mounting, the NEN10-12GM50-E2-V1 provides a critical component for optimizing efficiency and safety in a wide array of automated systems. This sensor is designed to integrate seamlessly into existing setups, offering a superior solution for advanced object detection needs.

Key Features

• Extended 10 mm Sensing Range: Provides greater flexibility in installation and application design, minimizing the risk of collision.
• PNP Normally Open (NO) Output: Standard configuration for broad compatibility with industrial control systems.
• IP67 Protection Class: Guarantees superior resistance against dust ingress and temporary immersion in water, ensuring longevity in harsh conditions.
• Robust M12 Threaded Housing: Constructed from nickel-plated brass for exceptional durability and resistance to mechanical stress.
• Wide Operating Voltage Range: Operates efficiently on 10 to 30 V DC, suitable for diverse power supply environments.
• High Switching Frequency: Achieves up to 600 Hz, enabling rapid and precise detection in dynamic applications.
• Visual Switching Status Indicator: Features a bright yellow LED for immediate and clear feedback on sensor operation.

Technical Specifications

• Model Number: NEN10-12GM50-E2-V1
• Series: Standard Series
• Switching Function: Normally Open (NO)
• Output Type: PNP
• Rated Operating Distance (sn): 10 mm
• Assured Operating Distance (sa): 0 to 8.1 mm
• Reduction Factors (Aluminum, Copper, Stainless Steel, Brass): 0.45, 0.4, 0.75, 0.45 respectively
• Operating Voltage (UB): 10 to 30 V DC
• Switching Frequency (f): 0 to 600 Hz
• Hysteresis (H): 0.06 to 1 mm
• Reverse Polarity Protection: Yes
• Short-Circuit Protection: Pulsing
• Voltage Drop (Ud): ≤ 2 V
• Operating Current (IL): 0 to 200 mA (max. 150 mA above 70°C)
• Off-State Current (Ir): ≤ 10 µA
• No-Load Supply Current (I0): ≤ 15 mA
• Time Delay Before Availability (tv): ≤ 50 ms
• Switching State Indicator: Yellow LED
• Connection Type: M12 x 1 connector, 4-pin
• Housing Material: Nickel-plated brass
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Dimensions: Length: 60 mm, Diameter: 12 mm
• Tightening Torque: ≤ 10 Nm
• Standards Compliance: EN IEC 60947-5-2
• Approvals: cULus Listed, General Purpose
• Operating Temperature Range: -25°C to +85°C (-13°F to +185°F)

Applications

• Industrial Automation Lines: Essential for precise detection of metallic components and product positioning on high-speed assembly lines.
• Robotics and End-of-Arm Tooling: Provides accurate feedback for robotic arm movements and gripper actuation, ensuring precise manipulation.
• Packaging and Bottling Machinery: Monitors the presence, orientation, and counting of metal caps, containers, and other packaging elements.
• Material Handling Systems: Detects metallic objects on conveyor belts, chutes, and sorting systems, preventing jams and ensuring smooth material flow.
• Machine Tooling: Used for tool presence detection, part positioning, and collision avoidance in CNC machines and other automated tooling.
• Automotive Manufacturing: Critical for sensing metallic parts during various stages of vehicle assembly, from stamping to final inspection.

Why Choose This Model?

• Unmatched Reliability: Engineered by Pepperl+Fuchs, a leader in sensor technology, ensuring consistent and long-lasting performance even in harsh industrial settings.
• Optimized Detection Range: The 10 mm extended sensing distance provides a significant advantage for applications requiring greater operational flexibility and reduced sensitivity to minor misalignments.
• Exceptional Durability: With its nickel-plated brass housing and IP67 rating, this sensor is built to withstand extreme temperatures, dust, and moisture, extending its service life and minimizing maintenance.
• Seamless Integration: Featuring a standard M12 x 1 connector, integration into existing or new control systems is straightforward and rapid, reducing installation time and complexity.
• Enhanced Operational Safety: Pulsing short-circuit protection and reverse polarity protection safeguards the sensor and connected equipment, contributing to a safer operational environment.
• Cost-Effective Solution: Its robust construction and reliable performance translate into fewer replacements and reduced downtime, offering an excellent return on investment over its lifetime.

Order Now

Elevate your industrial automation capabilities with the Pepperl+Fuchs NEN10-12GM50-E2-V1 M12 Inductive Proximity Sensor. Experience unparalleled precision and durability for your most demanding applications. This sensor is available for immediate purchase and worldwide shipping, ensuring prompt delivery to optimize your operations without delay. Secure yours today and take the first step towards enhanced efficiency and reliability in your automated systems.
