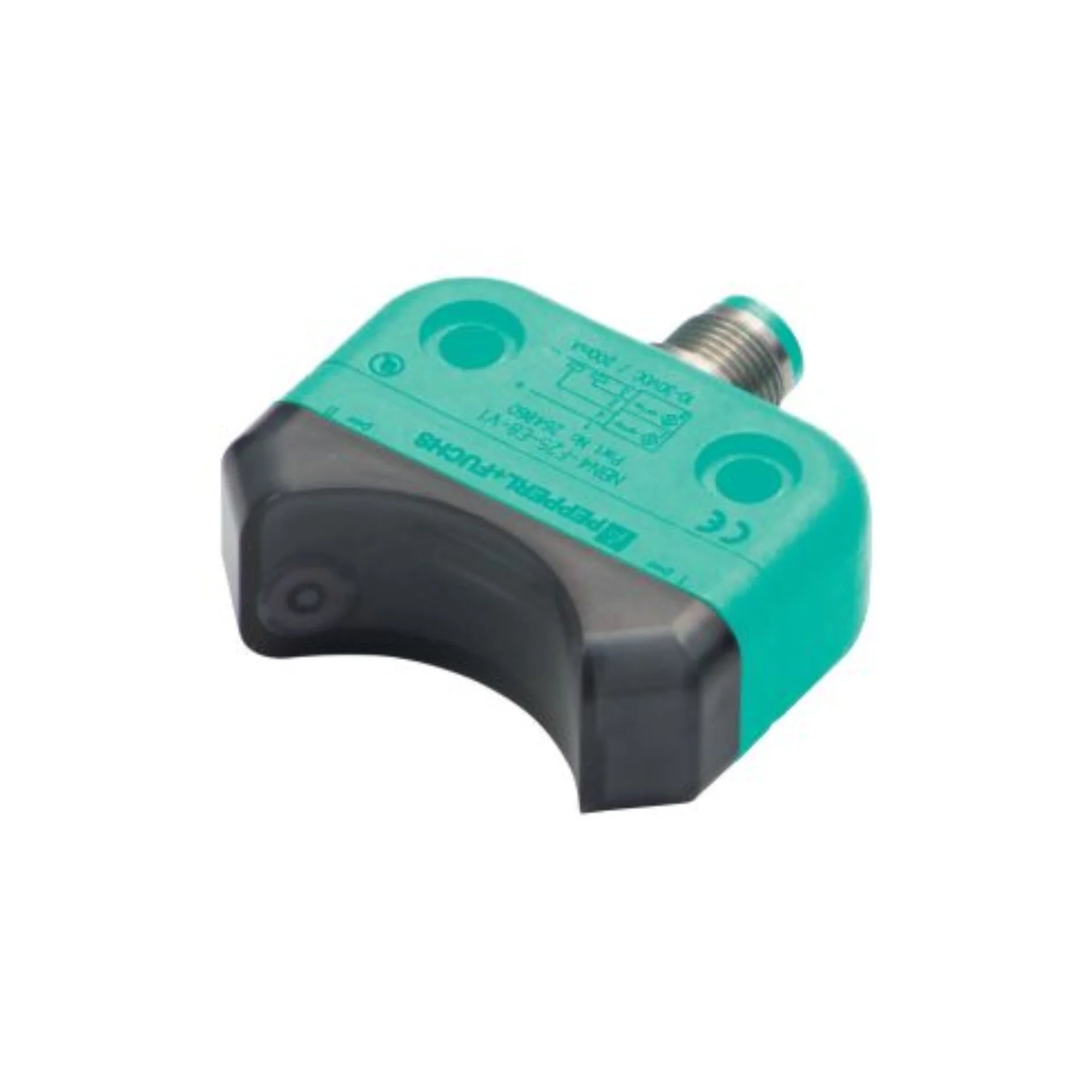

Pepperl+Fuchs NBN4-F25-E8-V1

Overview

The Pepperl+Fuchs NBN4-F25-E8-V1 (Part No. 264860) is a state-of-the-art inductive proximity sensor engineered for precision and reliability in demanding industrial environments. As a key component within the acclaimed F25 series, this compact rectangular sensor delivers a robust 4 mm flush sensing distance, making it ideal for applications where space is at a premium. Its PNP normally open (NO) output ensures seamless integration with modern control systems, while the convenient M8 connector facilitates quick and secure installation. Built with an IP67 protection rating, the NBN4-F25-E8-V1 is perfectly suited for dependable metal object detection in automation systems, robotics, and various machine integration tasks, ensuring consistent performance even in challenging conditions. This sensor represents Pepperl+Fuchs' commitment to providing high-quality, durable, and efficient sensing solutions that enhance operational integrity and productivity.

Key Features

• Precise 4 mm flush sensing distance for accurate object detection
• Reliable PNP Normally Open (NO) output for versatile control system compatibility
• Compact rectangular F25 series housing for installations with limited space
• Durable M8, 3-pin male connector for quick and secure electrical connection
• Robust IP67 protection rating ensures resistance to dust and water ingress
• High switching frequency of up to 1,000 Hz for rapid response times
• Integrated LED indicator provides clear operational status feedback

Technical Specifications

• Model Number: NBN4-F25-E8-V1
• Part Number: 264860
• Sensor Type: Inductive proximity sensor
• Installation Type: Flush mountable
• Sensing Distance: 4 mm
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10–30 VDC
• Connection Type: M8, 3-pin male connector
• Housing Style: Compact rectangular (F25 series)
• Housing Material: PBT plastic
• Protection Rating: IP67
• Switching Frequency: Max. 1,000 Hz
• Voltage Drop: ≤ 1.5 V
• Load Current: Max. 100 mA
• Current Consumption: ≤ 10 mA (no load)
• Short-Circuit Protection: Yes (pulsing)
• Reverse Polarity Protection: Yes
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Dimensions: Approx. 25 mm x 8 mm x 8 mm (0.98 in x 0.31 in x 0.31 in)
• Weight: Approx. 20 g (0.7 oz)

Applications

• Industrial Automation Systems: Precise metal part detection in intricate layouts
• Robotics: Accurate position feedback for robotic arms and end-effectors in confined areas
• Material Handling: Reliable monitoring of objects on mini conveyors and feeders
• Packaging Machinery: Ensuring correct component placement and sequencing
• OEM Equipment Integration: Ideal for embedding into custom machinery and specialized systems
• Assembly Lines: Non-contact detection of small metallic components

Why Choose This Model?

• Unmatched Precision in a Compact Design: Provides accurate 4 mm flush sensing, making it perfect for space-constrained applications without compromising performance.
• Effortless Integration: Features a quick-connect M8 plug and reliable PNP NO output, ensuring seamless and fast integration into existing PLC and control systems.
• Superior Durability for Harsh Environments: With an IP67 protection rating and robust PBT plastic housing, this sensor withstands dust, water, and challenging industrial conditions.
• Enhanced Operational Reliability: Equipped with short-circuit and reverse polarity protection, guaranteeing long-term, stable, and safe operation.
• Versatile and High-Performance: Offers a high switching frequency and wide operating temperature range, making it adaptable to a broad spectrum of dynamic industrial processes.

Order Now

Elevate the precision and reliability of your automation systems with the Pepperl+Fuchs NBN4-F25-E8-V1 inductive proximity sensor. Designed for excellence and built for tough environments, this sensor is the intelligent choice for demanding applications. Secure yours today and experience the difference that premium German engineering makes. In stock and ready to ship worldwide.
