Pepperl+Fuchs CBB8-18GS75-E2-V1

Overview

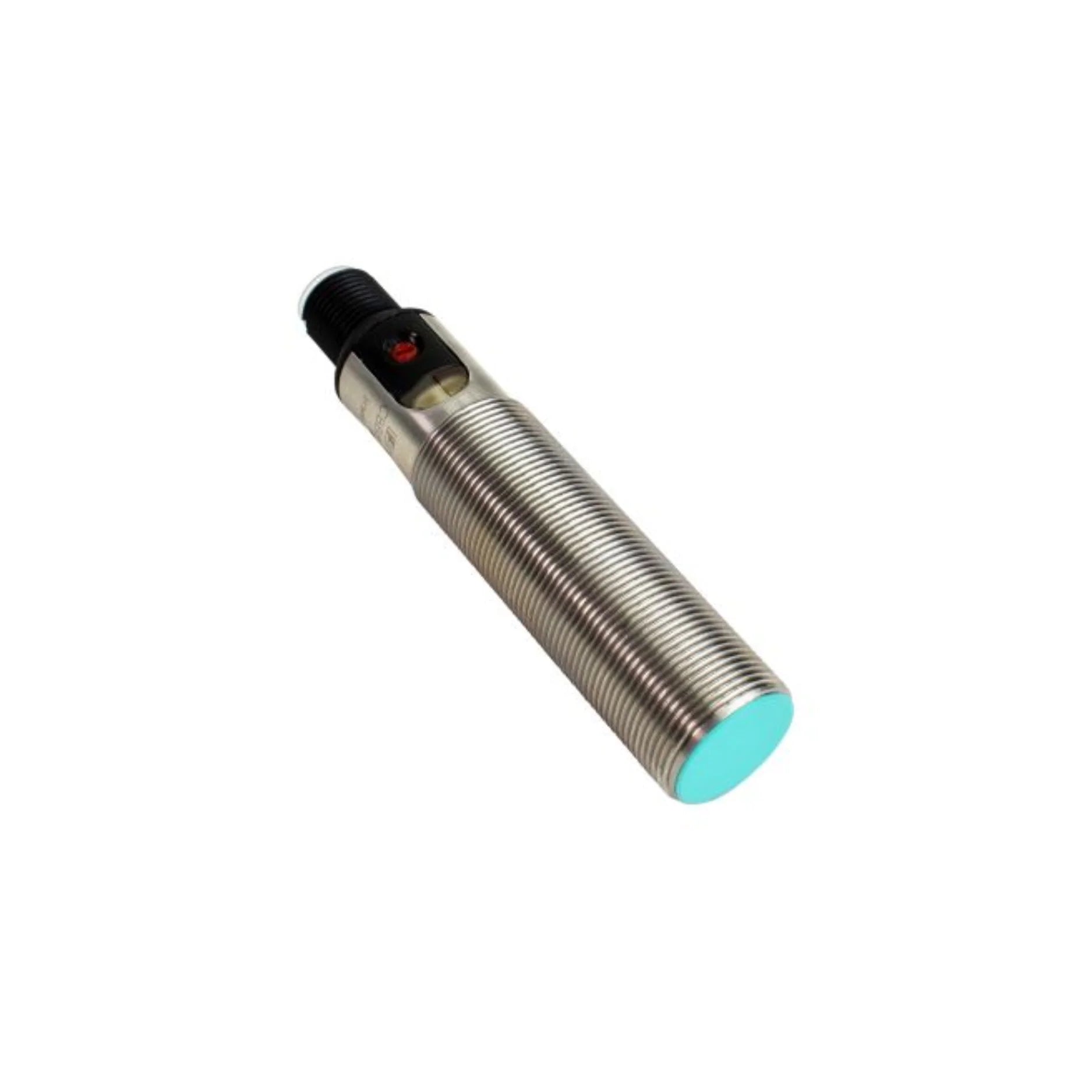

The Pepperl+Fuchs CBB8-18GS75-E2-V1, part number 237038, is a high-performance capacitive proximity sensor engineered for reliable detection of a wide array of materials. As a key component in industrial automation, this sensor excels at non-contact sensing of both conductive and non-conductive substances, including various liquids, powders, granules, and solid objects like plastics and glass. Encased in a robust M18 threaded housing, its compact design allows for easy integration into existing systems. The CBB8-18GS75-E2-V1 features a PNP normally open (NO) output and a standard V1 (M12) connector, ensuring straightforward installation and compatibility. With an impressive 15 mm sensing range and IP67 protection, this sensor is built to withstand demanding industrial environments, offering consistent and accurate performance where dirt, dust, and moisture are present. It's an essential tool for precise level detection, object presence confirmation, and material handling applications.

Key Features

• Versatile Capacitive Sensing: Effectively detects both conductive and non-conductive materials.
• Extended Sensing Range: Offers a reliable 15 mm sensing distance for diverse applications.
• Robust M18 Threaded Housing: Durable nickel-plated brass construction for industrial longevity.
• PNP Normally Open Output: Ensures compatibility with a wide range of control systems.
• IP67 Protection Rating: Provides excellent resistance against dust and water ingress.
• Integrated Sensitivity Adjustment: Potentiometer allows for fine-tuning to specific application needs.
• Standard M12 (V1) Connector: Facilitates quick and secure electrical connections.

Technical Specifications

• Model: CBB8-18GS75-E2-V1
• Part Number: 237038
• Sensing Distance: 15 mm (adjustable via potentiometer)
• Mounting Type: Non-flush installation
• Output Type: PNP, Normally Open (NO), 3-wire configuration
• Supply Voltage: 10–30 VDC
• Max Output Current: 100 mA
• Switching Frequency: Approximately 25 Hz
• Housing Material: Nickel-plated brass
• Sensing Face Material: Durable Plastic
• Ambient Temperature Range: -25°C to +70°C
• Electrical Connection: M12 (V1) connector, 4-pin
• Enclosure Rating: IP67 (Dust-tight and protected against temporary immersion)
• Sensor Type: Capacitive Proximity Sensor

Applications

• Level Detection: Accurate monitoring of liquids, powders, and granular materials in tanks and hoppers.
• Packaging Machines: Reliable confirmation of product presence and position in automated lines.
• Non-Metal Object Detection: Ideal for sensing plastic bottles, glass containers, and other non-metallic items.
• Material Handling & Logistics: Precise bin and hopper level monitoring in storage and transport systems.
• Food & Beverage Industry: Detection of various food products and liquids in processing and packaging.
• Industrial Automation: General purpose control and sensing tasks in various manufacturing processes.

Why Choose This Model?

• Unmatched Versatility: Detects a broad spectrum of materials, from solids to liquids, simplifying sensor selection.
• Reliable Performance: IP67 rating ensures durable and consistent operation in harsh industrial environments.
• Easy Integration: Standard M12 connector and M18 threaded body allow for quick and hassle-free installation.
• Precision & Control: Adjustable sensitivity via potentiometer enables fine-tuning for optimal application performance.
• Cost-Effective Solution: Offers a robust feature set and reliable performance at a competitive price point.
• Global Availability: Readily available and ships worldwide, ensuring you can get the parts you need, when you need them.

Order Now

Elevate your automation processes with the Pepperl+Fuchs CBB8-18GS75-E2-V1 capacitive proximity sensor. Engineered for precision, durability, and versatility, this sensor is an indispensable addition to any industrial setup requiring reliable material detection. Don't compromise on quality or performance—secure your advanced sensing solution today. Available and ready to ship worldwide to meet your operational demands.
