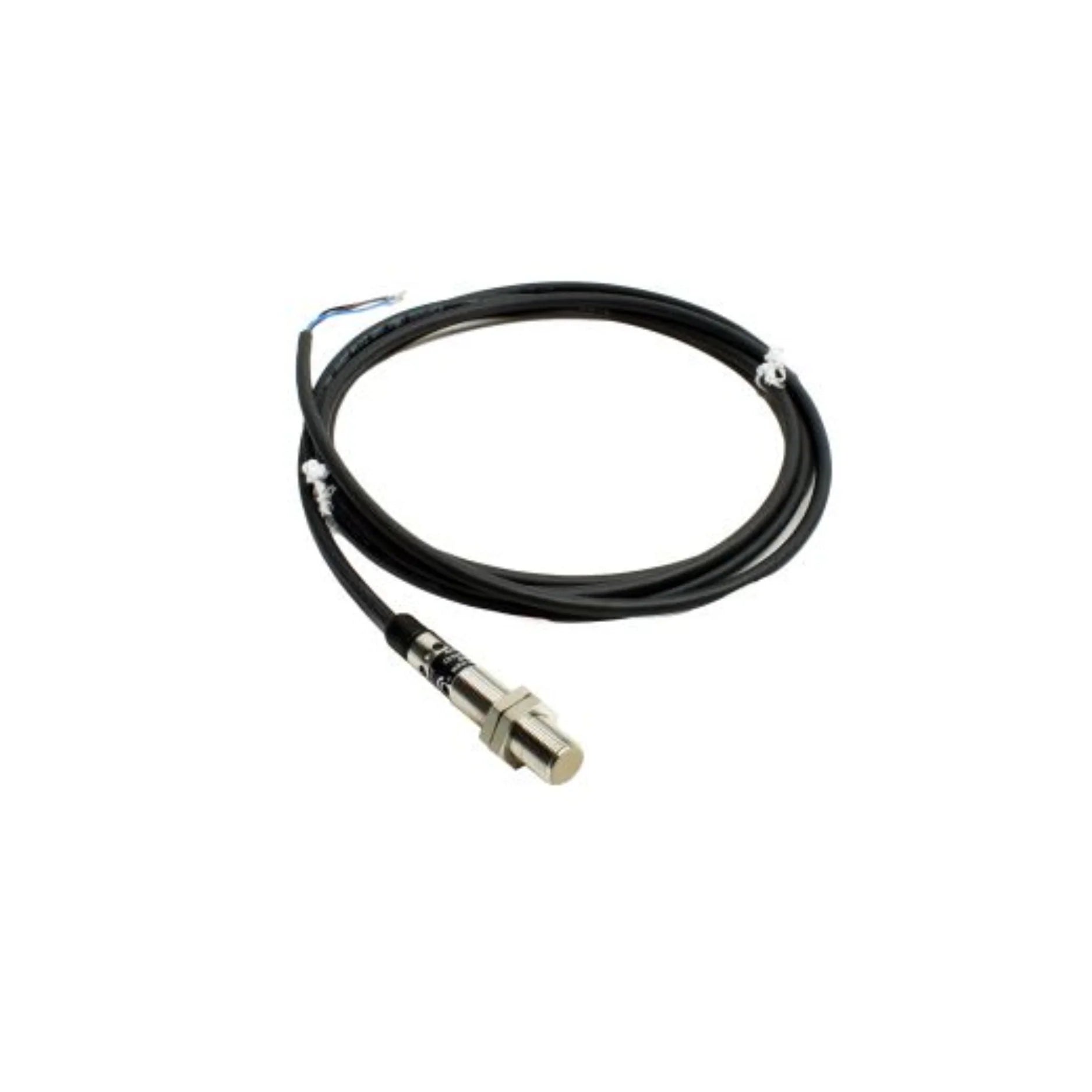

Pepperl+Fuchs CBB4-12GH70-E2

Overview

The Pepperl+Fuchs CBB4-12GH70-E2 is a high-performance capacitive proximity sensor meticulously engineered for precise and reliable detection of a wide array of materials, including solids, liquids, and granular substances. As part of Pepperl+Fuchs' esteemed capacitive sensor series, this model is built to ensure robust operation in demanding industrial environments. Its primary purpose is to provide non-contact sensing regardless of target color or surface texture, making it an indispensable tool for automation and process control. With a 4 mm sensing range and a PNP normally open output, this sensor seamlessly integrates into existing control systems, offering accurate feedback for critical applications.

Housed in a compact and durable M12 plastic casing, the CBB4-12GH70-E2 boasts an impressive IP67 protection rating, guaranteeing resistance against dust and water ingress. This makes it an excellent choice for installations where space is limited and environmental resilience is paramount. Whether monitoring levels in tanks, detecting objects on conveyor belts, or ensuring material presence in packaging lines, this Pepperl+Fuchs sensor delivers unwavering performance, enhancing operational efficiency and safety.

Key Features

• Versatile 4 mm Sensing Range: Accurately detects solids, liquids, and granular materials across diverse industrial settings.
• Advanced Capacitive Sensing: Reliably works with non-metallic targets such as plastic, glass, wood, powders, and various liquid types.
• PNP Normally Open Output: Ensures straightforward and efficient integration with a broad range of industrial control systems.
• M12 Quick Connector: Provides secure, reliable, and user-friendly plug-and-play electrical connectivity.
• Compact & Robust Housing: Designed with a cylindrical M12 plastic housing for easy installation in space-constrained applications.
• IP67 Environmental Protection: Offers superior resistance to dust and water, ensuring long-term durability in harsh conditions.

Technical Specifications

• Model: CBB4-12GH70-E2
• Part Number: 210620
• Sensor Type: Capacitive proximity sensor
• Sensing Range: 4 mm
• Output Type: PNP, Normally Open (NO)
• Housing Material: Plastic (cylindrical, M12 size)
• Mounting Type: Flush
• Connection: M12 connector, 4-pin
• Voltage Supply: 10–30 V DC
• Switching Frequency: ≤ 25 Hz
• Temperature Range: -25°C to +70°C
• Protection Rating: IP67
• Dimensions: M12 x 1 (cylindrical)
• Current Consumption: < 15 mA
• Short-circuit Protection: Pulsed
• Reverse Polarity Protection: Yes

Applications

• Level Detection: Precise monitoring of fill levels in tanks, silos, and hoppers for liquids and bulk materials.
• Non-metallic Object Sensing: Reliable presence detection of plastic, glass, wood, and other non-conductive materials on production lines.
• Packaging and Material Handling: Automation of sorting, counting, and positioning tasks in packaging machinery.
• Food and Beverage Industry: Detection of ingredients, liquids, and packaging materials in sanitary environments.
• Plastics and Rubber Manufacturing: Sensing of raw materials, molds, and finished products throughout the production process.
• Textile Industry: Monitoring of fabric rolls, thread presence, and material handling.

Why Choose This Model?

• Unmatched Versatility: Detects a wide spectrum of materials, from fine powders to dense liquids, providing a universal sensing solution.
• Exceptional Reliability: Built by Pepperl+Fuchs, a leader in industrial sensing, ensuring consistent and accurate performance even in challenging conditions.
• Effortless Integration: The PNP NO output and M12 connector simplify wiring and setup, significantly reducing installation time and costs.
• Space-Saving Design: Its compact M12 form factor allows for flexible mounting in tight spaces where larger sensors cannot fit.
• Durability for Demanding Environments: IP67 protection guarantees resistance against dust, moisture, and temperature fluctuations, extending sensor lifespan.
• Optimized for Efficiency: Provides rapid and precise feedback, helping to minimize downtime and enhance the productivity of automated systems.

Order Now

Elevate your industrial automation with the precision and reliability of the Pepperl+Fuchs CBB4-12GH70-E2 capacitive sensor. Ready for global shipping, this robust sensor is an investment in enhanced operational efficiency and accuracy. Don
