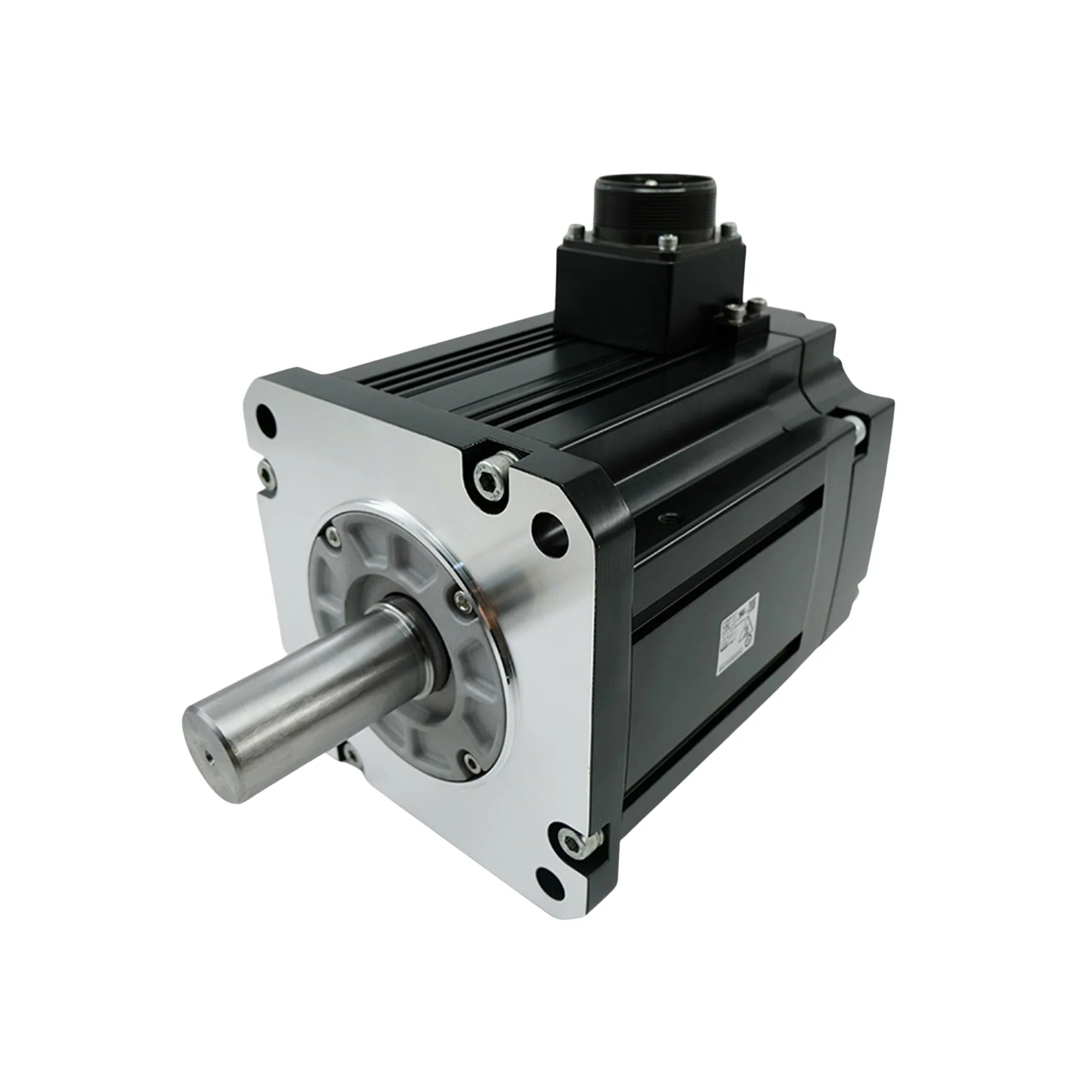

Mitsubishi HG-SR702B

Overview

The Mitsubishi HG-SR702B is a high-performance 7.0 kW AC servo motor from the renowned HG-SR series, meticulously engineered to deliver exceptional motion control in the most demanding industrial environments. This robust servo motor is an ideal solution for applications requiring unparalleled speed, pinpoint accuracy, and unwavering durability. Its advanced design, combining a medium inertia rotor with a high-resolution absolute encoder, ensures stable, precise, and efficient operation across a wide range of industrial automation tasks. Optimized for seamless integration with Mitsubishi MR-J4 servo amplifiers, the HG-SR702B empowers systems with enhanced performance and reliability, making it a cornerstone for modern manufacturing and automation.

Key Features

• Powerful Output: 7.0 kW rated output for robust performance.
• High Speed: Achieves 3000 RPM rated speed for dynamic operations.
• Precision Control: Utilizes a 22-bit absolute encoder for superior accuracy.
• Medium Inertia: Ensures stable operation and reduces vibrations.
• Rugged Durability: IP65 protection rating (excluding shaft) for harsh environments.
• Voltage Compatibility: Operates efficiently on 200 V AC power supplies.
• Secure Coupling: Features a keyed shaft for reliable mechanical connection.

Technical Specifications

• Part Number: HG-SR702B
• Manufacturer: Mitsubishi Electric
• Series: HG-SR
• Rated Power: 7.0 kW
• Rated Speed: 3000 RPM
• Maximum Speed: 5000 RPM
• Voltage: 200 V AC
• Encoder: 22-bit absolute encoder
• Shaft Type: Keyed, straight shaft
• Protection Class: IP65 (excluding shaft)
• Cooling: Natural convection
• Mounting: Flange
• Brake: Optional (not included)
• Operating Temperature: 0 °C to +40 °C
• Inertia: Medium
• Approvals: CE, UL, cUL
• Weight: Approximately 25 kg

Applications

• CNC Machine Tools: Providing precise and dynamic motion for cutting, milling, and grinding.
• Packaging & Printing Machinery: Ensuring high-speed and accurate synchronization for efficient production lines.
• Conveying Systems: Delivering reliable and consistent movement in automated material handling.
• Semiconductor Processing: Offering ultra-fine control for intricate semiconductor manufacturing processes.
• Robotic Arms & Industrial Automation: Powering articulated robots and automated systems with smooth and responsive motion.
• Textile Manufacturing: Enhancing the precision and speed of weaving and knitting machinery.

Why Choose This Model?

• Unmatched Precision: The 22-bit absolute encoder provides exceptionally accurate feedback, crucial for critical applications.
• Mitsubishi Reliability: Benefit from Mitsubishi Electric's long-standing reputation for high-quality, durable, and reliable industrial components.
• Superior Performance: 7.0 kW power output and 3000 RPM rated speed ensure your operations run at peak efficiency.
• Harsh Environment Ready: IP65 protection ensures the motor can withstand challenging industrial conditions, enhancing longevity.
• Seamless Integration: Designed for optimal synergy with Mitsubishi MR-J4 servo amplifiers, simplifying setup and maximizing performance.
• Global Availability & Support: Available for worldwide shipping with comprehensive technical support from Mitsubishi Electric and its partners.

Order Now

Elevate your industrial automation with the Mitsubishi HG-SR702B servo motor. This powerful and precise solution is readily available to enhance the performance and reliability of your machinery. With its advanced features and robust construction, the HG-SR702B is an investment in efficiency and long-term productivity. Place your order today and experience the difference of Mitsubishi Electric's cutting-edge servo technology, delivered worldwide to your facility. Don't miss out on optimizing your operations with this exceptional servo motor.
