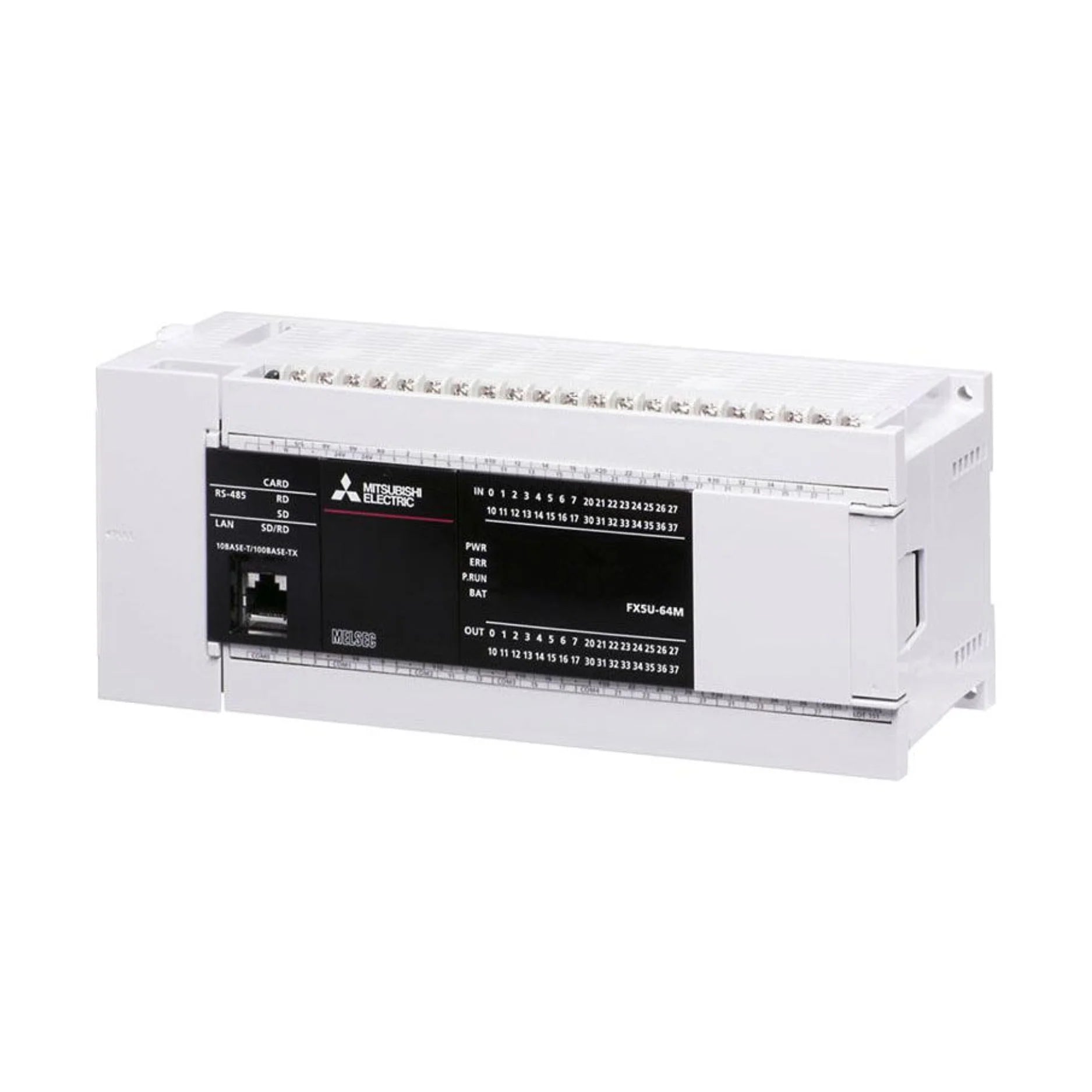

Mitsubishi FX5U‑64MT‑ESS

Overview

The Mitsubishi FX5U-64MT-ESS is a high-performance PLC main unit, part of the advanced FX5U (iQ-F) platform. Engineered for demanding industrial automation tasks, this compact yet powerful controller delivers exceptional speed, precision, and connectivity. With 64 I/O points, including 32 digital inputs and 32 transistor sink outputs, it provides the versatility required for a wide range of applications. Its 24V DC power supply ensures reliable operation in diverse environments, while integrated features such as Ethernet, USB, and an SD card slot facilitate seamless communication and data management. The FX5U-64MT-ESS is designed to meet the evolving needs of modern manufacturing, offering a robust solution for enhancing productivity and operational efficiency through its advanced capabilities and the trusted reliability of Mitsubishi Electric.

Key Features

• 64 I/O points (32 digital inputs, 32 transistor sink outputs)
• High-speed processing and advanced motion control capabilities
• Integrated Ethernet, USB, and SD card for enhanced connectivity
• Expandable architecture with FX5 series modules
• Built-in real-time clock and web server functionality
• Compatible with GX Works3 programming software for intuitive development
• Compact and robust design for space-efficient integration

Technical Specifications

• Catalog Number: FX5U-64MT-ESS
• Inputs: 32 digital (sink/source selectable)
• Outputs: 32 transistor sink (0.5 A per point max)
• Output Type: Transistor (sink)
• Power Supply: 24 V DC (±10%)
• Program Capacity: 128,000 steps
• Data Registers: 64,000 words
• Communication: Ethernet, USB Device, RS‑485 (via adapter)
• Mounting: DIN rail or panel
• Dimensions: Approximately 285 × 90 × 83 mm (W×H×D)
• Protection Class: IP10 (open type)
• Operating Temperature: 0 °C to +55 °C
• Certifications: CE, UL, cUL, RoHS

Applications

• Multi-axis motion control systems
• High-speed packaging and assembly lines
• OEM control panels and embedded systems
• Real-time monitoring and advanced data logging
• IIoT-enabled and scalable factory automation
• Process control in various industrial sectors

Why Choose This Model?

• Massive I/O Capacity: Offers 64 I/O points in a compact footprint, ideal for complex systems without sacrificing space.
• Advanced Integrated Capabilities: Features high-speed processing, versatile communication, and robust motion support directly integrated.
• Flexible Expansion: Designed for future growth with seamless compatibility with FX5 series expansion modules for evolving automation needs.
• Reliability and Support: Benefits from Mitsubishi Electric's renowned quality, reliability, and global support infrastructure.
• Cost-Effective Performance: Delivers high performance and advanced features typically found in larger systems, making it a powerful and efficient choice for mid-size applications.
• Ease of Programming: Compatible with GX Works3, providing a user-friendly and powerful development environment for efficient application creation.

Order Now

Elevate your automation solutions with the Mitsubishi FX5U-64MT-ESS PLC. This premier controller is ready to ship worldwide, offering a powerful blend of performance, flexibility, and reliability. Enhance your operational efficiency and embrace advanced industrial automation by integrating this robust PLC into your systems today. Explore the full range of Mitsubishi MELSEC Programmable Controllers for scalable solutions tailored to meet the demands of modern industry.
