Mitsubishi FX5-4AD

Overview

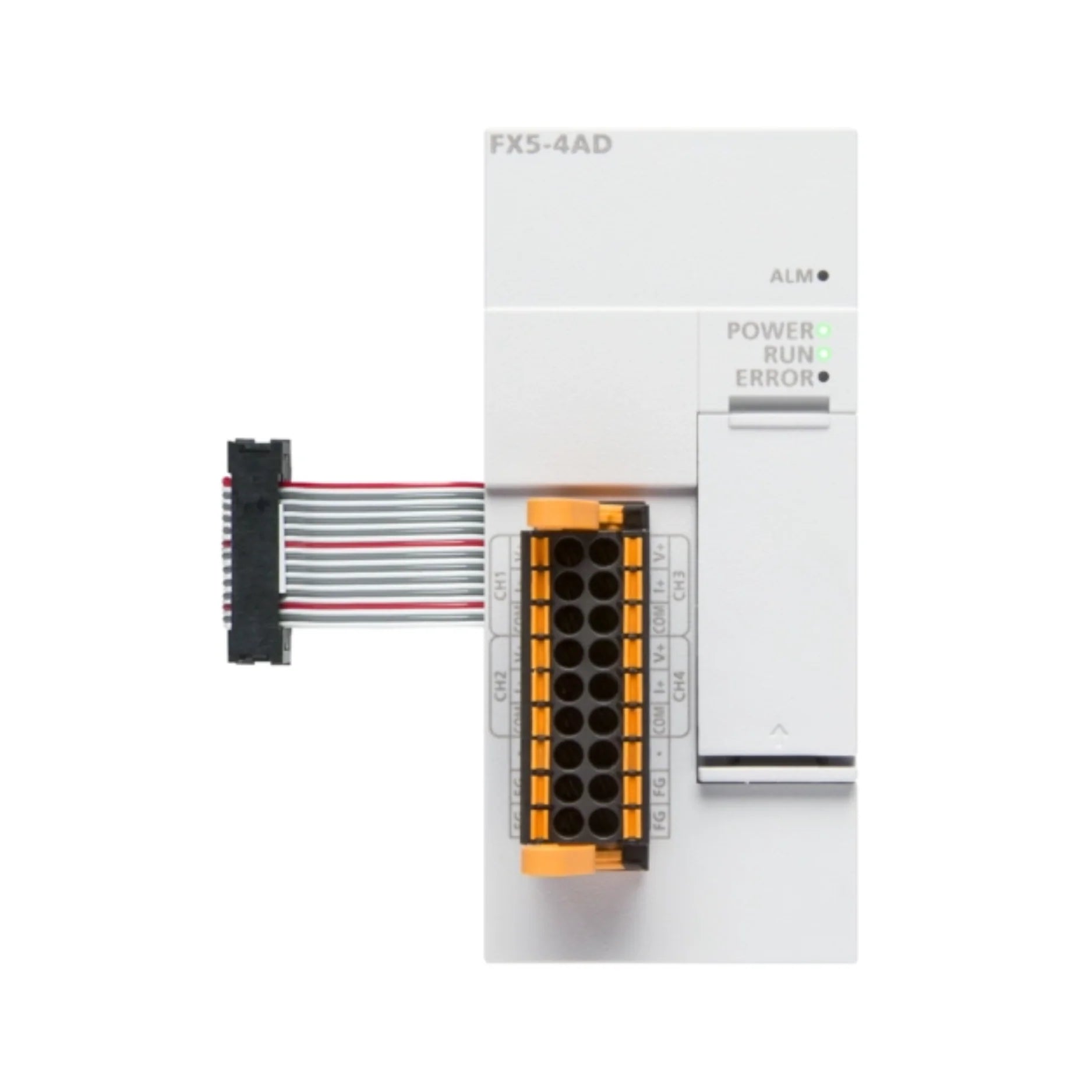

The Mitsubishi FX5-4AD is an advanced 4-channel analog input module designed specifically for the MELSEC iQ-F FX5U Series Programmable Logic Controllers (PLCs). This high-precision module excels at converting a variety of analog signals—including voltage (0–10V, ±10V) and current (4–20mA)—into digital data, providing your automation system with accurate and reliable real-time information. Engineered for robust industrial environments, the FX5-4AD ensures seamless integration and critical data acquisition for a wide array of applications, enhancing control and monitoring capabilities within your industrial processes.

As a vital component of the MELSEC iQ-F platform, the FX5-4AD significantly expands the analog input capacity of your FX5U PLC, enabling sophisticated measurement and control operations. Its flexible configuration options allow each channel to be independently set, offering unparalleled adaptability to diverse sensor types and process requirements. With its compact design and easy DIN rail mounting, this module is an efficient and indispensable tool for modernizing and optimizing your automation infrastructure.

Key Features

• 4 Independent Analog Input Channels: Provides versatile data acquisition from multiple sources.
• Wide Input Signal Compatibility: Supports voltage (0–10V, ±10V) and current (4–20mA) inputs.
• High 12-bit Resolution: Ensures precise and accurate analog-to-digital conversion for critical data.
• Individual Channel Configuration: Each channel can be independently set for specific input types.
• Integrated Status Indicators: Diagnostic LED indicators facilitate easy monitoring and troubleshooting.
• DIN Rail Mountable Design: Simple and secure installation into industrial control panels.
• Robust Industrial Reliability: Engineered for stable and consistent performance in demanding environments.

Technical Specifications

• Model: FX5-4AD
• Series: MELSEC iQ-F (FX5U)
• Number of Input Channels: 4 analog inputs
• Input Ranges: Voltage: 0–10V, ±10V; Current: 4–20mA
• Resolution: 12-bit (analog-to-digital conversion)
• Conversion Speed: Approximately 1 ms per channel
• Power Supply: Provided directly from the PLC main unit
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -20°C to 75°C (-4°F to 167°F)
• Mounting Type: Standard DIN rail mounting
• Weight: Approximately 0.15 kg (0.33 lbs)
• Certifications: CE, UL compliant for global industrial standards
• External Dimensions (W x H x D): Specific dimensions may vary, consult datasheet for precise measurements.

Applications

• Temperature and Pressure Monitoring: Precision measurement in HVAC, process control, and manufacturing.
• Flow and Level Measurement: Accurate data acquisition for liquids and gases in tanks and pipelines.
• Analog Sensor Integration: Connecting a wide range of industrial sensors for comprehensive data collection.
• Process Automation: Enhancing control over continuous and batch industrial processes.
• Environmental Control Systems: Monitoring and managing environmental parameters in various settings.
• Energy Management: Collecting data from current and voltage sensors for energy optimization.

Why Choose This Model?

• Seamless FX5U Integration: Designed for perfect compatibility and effortless communication with MELSEC iQ-F FX5U PLCs.
• Exceptional Accuracy: 12-bit resolution delivers highly precise analog data, crucial for critical applications.
• Versatile Signal Handling: Adapts to a broad spectrum of analog input types, minimizing the need for multiple modules.
• Space-Saving Design: Its compact form factor optimizes panel space, allowing for more flexible system layouts.
• Enhanced Diagnostics: Built-in LED indicators simplify setup and accelerate troubleshooting, reducing downtime.
• Proven Mitsubishi Reliability: Benefit from the high-quality engineering and enduring performance synonymous with Mitsubishi Electric industrial automation products.

Order Now

Elevate your automation capabilities with the Mitsubishi FX5-4AD 4-Channel Analog Input Module. This module is currently in stock and available for immediate shipment worldwide, ensuring you can quickly integrate it into your existing or new FX5U PLC systems. Don't miss the opportunity to enhance your data acquisition precision and system reliability. Secure your FX5-4AD today to experience the superior performance and seamless integration that only Mitsubishi Electric can provide. Explore our full range of Mitsubishi MELSEC Programmable Controllers for further innovative automation solutions.
