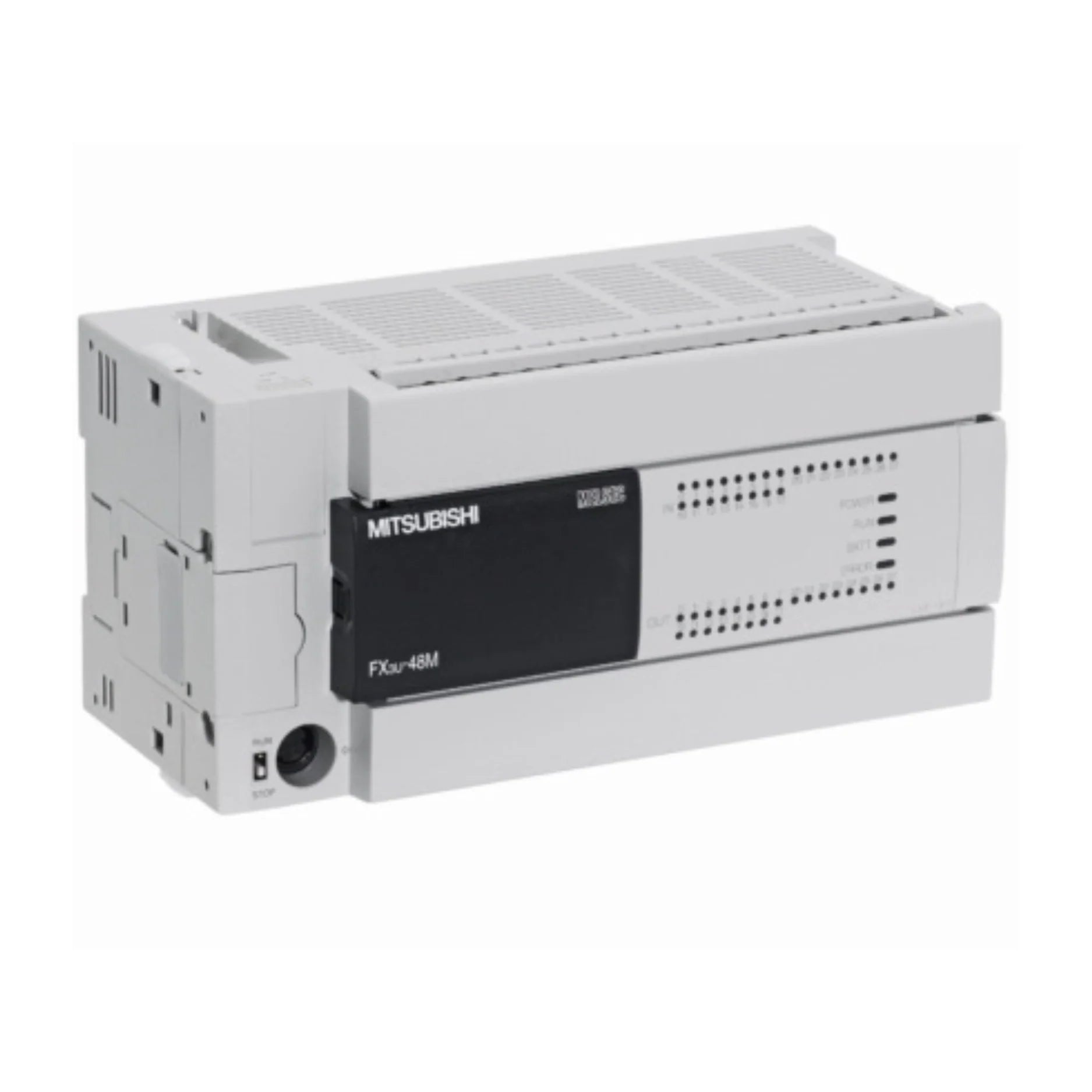

Mitsubishi FX3U-48MR/ES

Overview

The Mitsubishi FX3U-48MR/ES is a robust and versatile Programmable Logic Controller (PLC) main unit from the esteemed FX3U series, engineered to deliver exceptional performance and reliability in diverse industrial automation environments. This powerful PLC boasts a comprehensive 48 total I/O points, intelligently configured with 24 digital inputs and 24 relay outputs, making it highly adaptable for a wide array of control tasks. Operating on a universal 100–240 V AC power supply, the FX3U-48MR/ES is designed for seamless integration into various electrical systems worldwide. Its core strength lies in its ability to support high-speed program execution and precise positioning control, addressing the critical demands of modern manufacturing and process automation. Furthermore, its inherent expandability through compatibility with both FX3U and FX2N series I/O and special function modules ensures future-proofing and scalability for evolving application requirements. This unit is an ideal solution for engineers and system integrators seeking a high-performance, compact controller capable of handling complex automation challenges with ease and efficiency.

Key Features

• Integrated 48 I/O points (24 digital inputs, 24 relay outputs) for versatile control.
• Reliable 100–240 V AC power supply ensures broad compatibility.
• Exceptional high-speed program execution for time-critical operations.
• Supports advanced positioning control for precise motion applications.
• Modular expandability with FX3U and FX2N series modules for future growth.
• Built-in real-time clock for accurate timestamping and scheduling functions.
• Supports complex mathematical operations, PID control, and floating-point calculations.

Technical Specifications

• Model: FX3U-48MR/ES
• Series: FX3U
• Total I/O: 48 points
• Inputs: 24 digital (sink/source)
• Outputs: 24 relay (2 A max per point)
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: Approximately 40 VA
• Program Memory: 64,000 steps
• Communication: RS-422 (standard); USB/Ethernet (via adapters)
• Mounting: DIN rail or panel
• Dimensions (W×H×D): 220 × 90 × 86 mm
• Protection Class: IP10 (open type)
• Certifications: CE, UL, cUL
• Output Type: Relay

Applications

• Original Equipment Manufacturer (OEM) and intricate machine control systems.
• High-speed conveyor systems and advanced packaging lines.
• Multi-axis motion control systems for robotics and automation.
• Industrial data collection and precise monitoring applications.
• Factory automation control panels requiring robust and compact solutions.
• Material handling and sorting systems.

Why Choose This Model?

• Exceptional I/O Capacity: With 48 integrated I/O points and vast modular expandability, it handles complex system requirements effortlessly.
• Versatile Relay Outputs: The 24 relay outputs are perfectly suited for controlling a diverse range of load types, offering flexibility in application.
• Blazing Fast Processing: Engineered for rapid program execution, this PLC is ideal for time-sensitive applications where speed and precision are paramount.
• Unwavering Reliability: As part of Mitsubishi's trusted FX3U platform, it delivers consistent and reliable performance, even in challenging industrial environments.
• Global Support & Recognition: Benefit from Mitsubishi's worldwide support network and the proven track record of the MELSEC PLC series.
• Compact & Powerful: Despite its small footprint, it offers extensive functionality, making it a powerful solution for space-constrained installations.

Order Now

Elevate your automation capabilities with the Mitsubishi FX3U-48MR/ES PLC. This high-performance compact controller is a critical component for optimizing efficiency and reliability in your industrial operations. It is readily available and ships worldwide, ensuring you can quickly implement this cutting-edge technology. Explore the full range of Mitsubishi MELSEC Programmable Controllers to discover scalable automation solutions tailored for machine control, motion, networking, and a wide variety of industrial applications. Invest in Mitsubishi quality and advance your control systems today.
