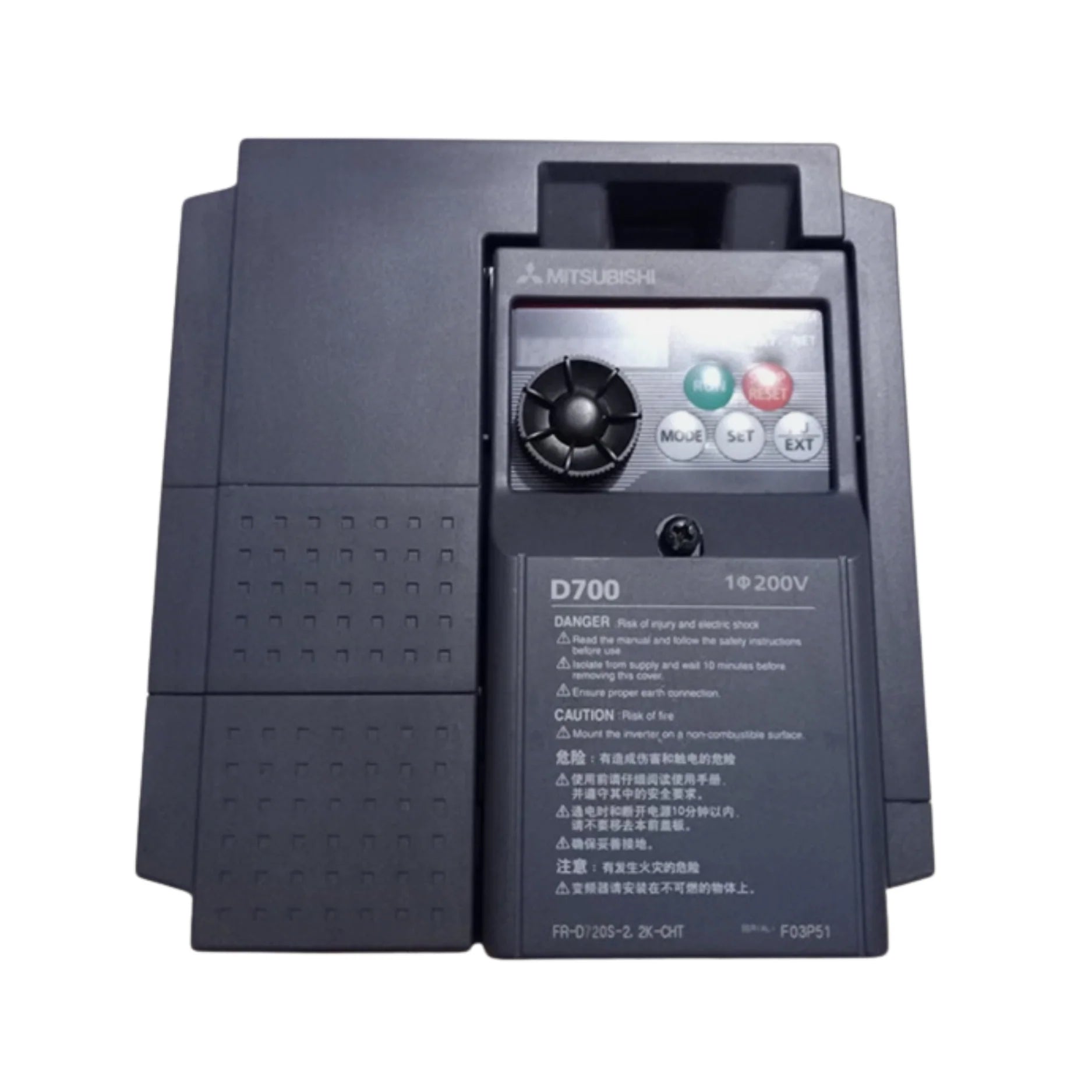

Mitsubishi FR-D720S-2.2K-CHT

Overview

The Mitsubishi FR-D720S-2.2K-CHT is a highly efficient and compact frequency inverter, an integral part of the renowned D700 series. Engineered for precision and reliability, this variable frequency drive (VFD) is specifically designed to provide superior motor control in installations where space is a premium. Operating seamlessly on a single-phase 220 V input, it delivers precise V/Hz control, ensuring smooth and consistent operation for a wide range of applications. Its robust design and intuitive features make it an ideal choice for both original equipment manufacturers (OEMs) and end-users seeking a high-performance, easy-to-integrate motor control solution with proven Mitsubishi Electric dependability.

Key Features

• Powerful 2.2 kW (3 HP) output for effective motor management.
• Flexible 1-phase 220 V AC input and 3-phase 200–240 V output.
• Advanced V/Hz control with auto-tuning functionality for optimal performance.
• Integrated keypad with a clear LED display for straightforward operation and monitoring.
• Ultra-compact and versatile DIN-rail mountable design for flexible installation.
• Comprehensive built-in safety and overload protection mechanisms.
• Seamless communication via an integrated RS-485 interface.

Technical Specifications

• Catalog Number: FR-D720S-2.2K-CHT
• Power Output: 2.2 kW (3 HP)
• Input Voltage: 1-phase 220 V AC ±10%
• Output Voltage: 3-phase 200–240 V AC
• Output Frequency: 0.2–400 Hz
• Control Method: V/Hz control with auto-tuning
• Protection Class: IP20
• Operating Temperature: –10 °C to +50 °C
• Mounting: Wall or DIN rail
• Cooling: Natural convection
• Certifications: CE, UL, cUL, RoHS
• Communication: RS-485 interface

Applications

• Small-scale conveyor systems and industrial mixers
• Efficient control for pumps and ventilation fans
• Compact packaging machinery operations
• Automated door and gate systems
• Light-duty industrial machinery and equipment
• General purpose motor speed control in various manufacturing processes

Why Choose This Model?

• Space-Saving Design: Exceptionally compact footprint, ideal for installations with limited available space.
• Effortless Integration: Designed for easy installation and rapid commissioning, minimizing downtime.
• Unwavering Reliability: Benefits from Mitsubishi Electric's renowned engineering and manufacturing quality, ensuring long-term performance.
• Broad Compatibility: Offers versatile input/output compatibility, adapting to diverse system requirements.
• Optimized Performance: Provides efficient and precise control for light-to-medium duty drive applications, enhancing productivity.
• Global Availability: Ready for immediate shipment to locations worldwide, ensuring quick access to essential components.

Order Now

Elevate your motor control capabilities with the Mitsubishi FR-D720S-2.2K-CHT frequency inverter. This essential component offers a perfect blend of compact size, robust performance, and unparalleled reliability, making it an indispensable asset for modern industrial applications. Available for order and shipping globally, securing this advanced VFD means investing in efficiency and peace of mind. Explore our comprehensive range of Mitsubishi FR Series Frequency Inverters (FREQROL category) for more precision motor control solutions, energy efficiency enhancements, and industrial automation essentials. Discover the full spectrum of high-quality Mitsubishi products to meet all your operational needs.
